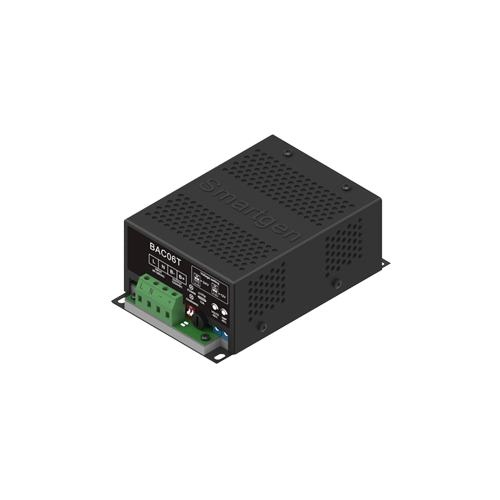

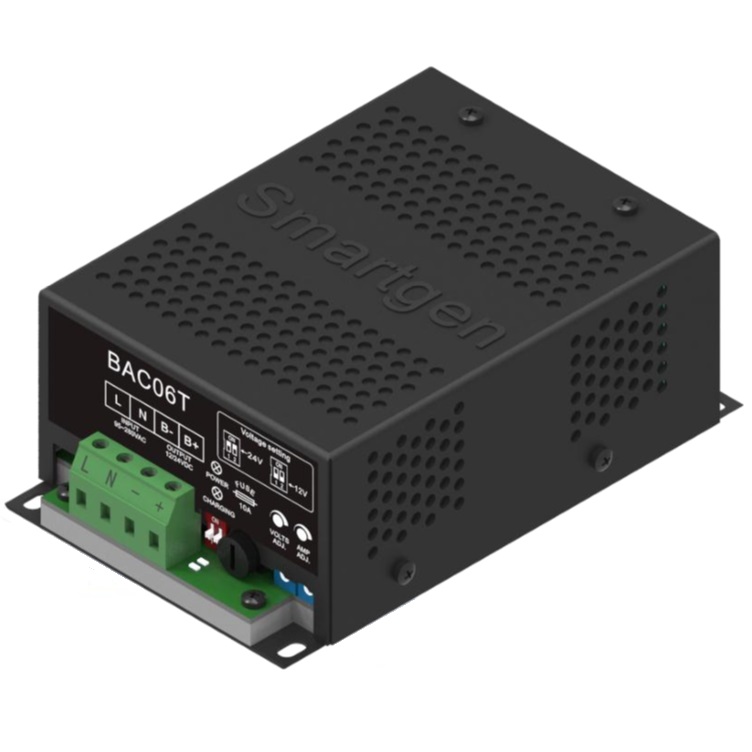

SmartGen BAC06T Battery Charger

Product Overview:
Battery Voltage  12V/24V
Max. Charging Current  6A/3A
Rated Input Voltage  AC(95~280)V
Max. Input Voltage Range  AC(90~305)V
AC Input Frequency  50Hz/60Hz
Max. Input Current  2A
No-Load Power Consumption  <3W
Operating Mode  Two segments
Maximum Efficiency  85%
Operating Temp.  (-30~+55)℃
Storage Temp.  (-40~+85)℃
Net Weight(kg)  0.65
Case Dimensions(mm)  143*96*55

Product Overview:
BAC06T battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.

PERFORMANCE AND CHARACTERISTICS

1. Designed in switching power structure, wide range of high voltage input, small volume, light weight and high efficiency;

2. Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extend the battery life to the fullest;

3. With short circuit and reverse connection protection;

4. 12V or 24V voltage is optional for charging by DIP switch;

5. Charging voltage and current can be adjusted via potentiometer on site;

6. LED display: Power indication and charging indication;

7. Horizontal type for installation, easy to install;
