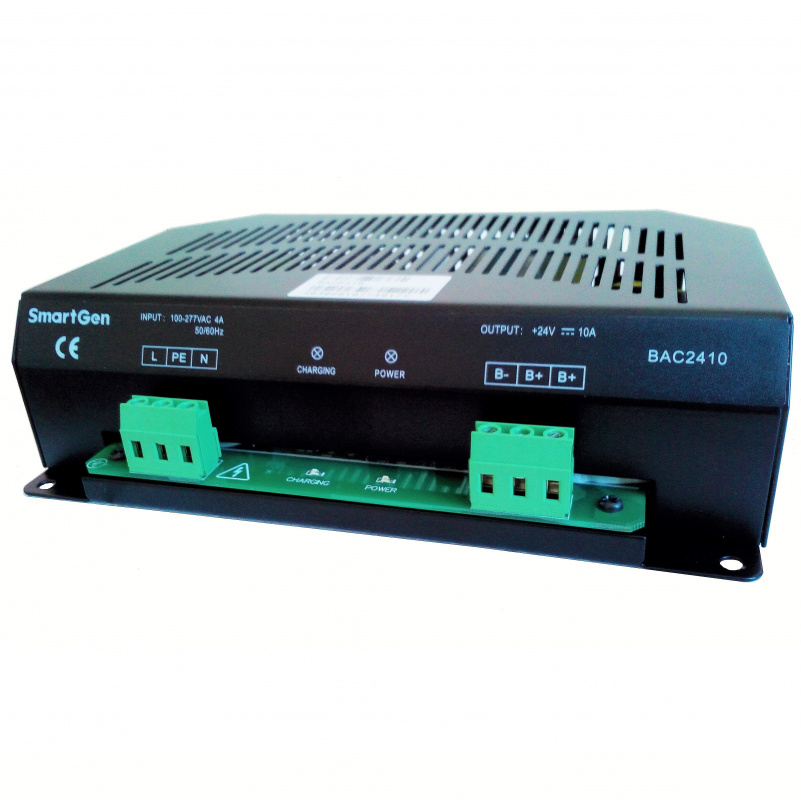

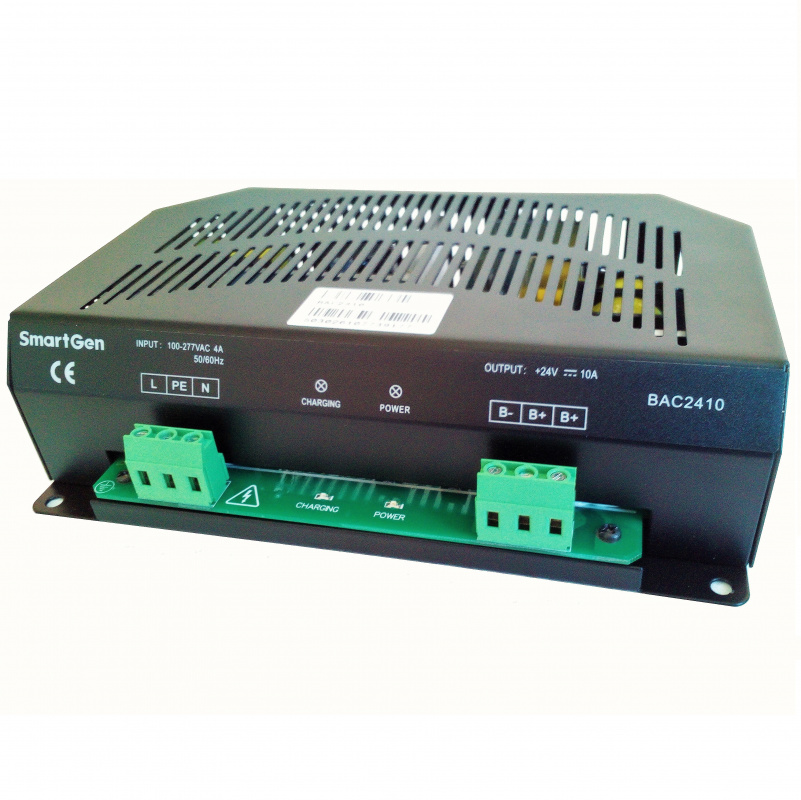

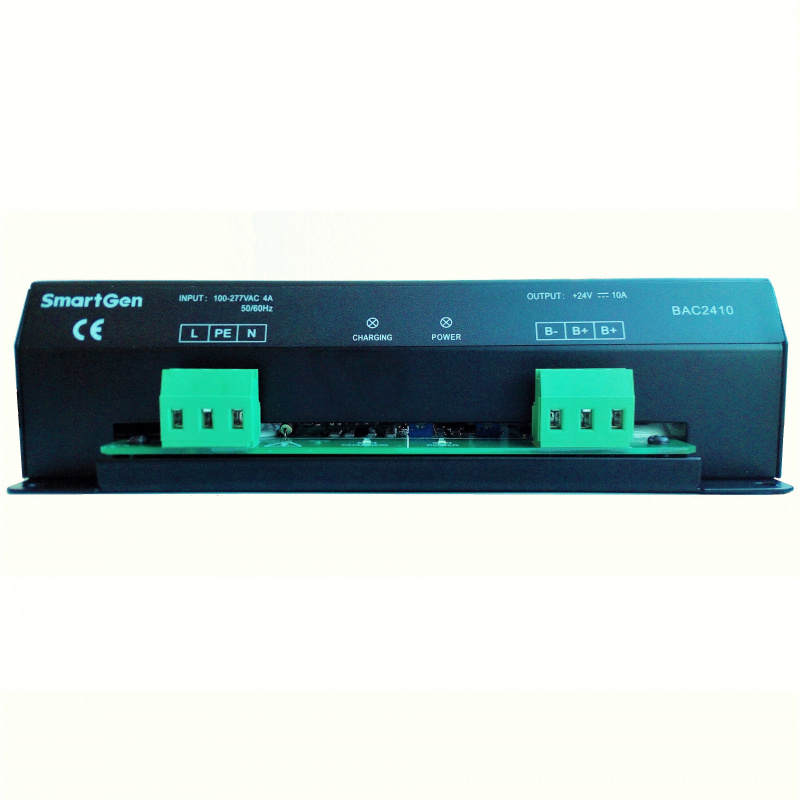

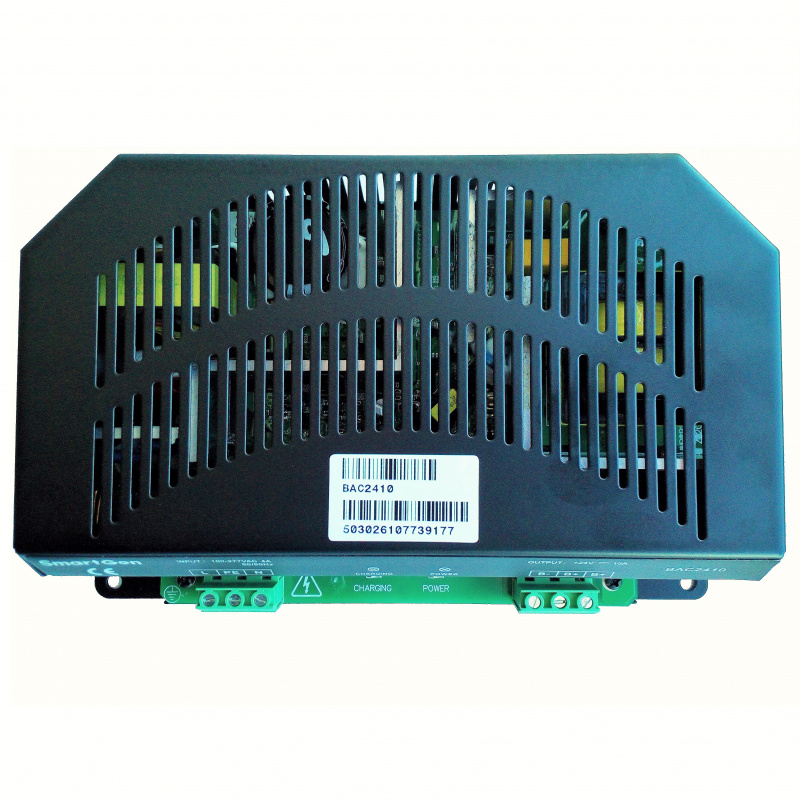

SmartGen BAC2410-24V (24V/10A, 90-305VAC, 50/60Hz) Generator Battery Charger

Technical Parameters:
Battery Voltage    24V
Max. Charging Current    10A
Rated Input Voltage    (100~277)V
Max. Input Voltage Range    (90~305)V
AC Input Frequency    (50/60)Hz
No-Load Power Consumption    <3W
Power Factor Compensation    ●
Operating Mode    Two segments
Maximum Efficiency    88%
Operating Temp.    (-30~+55)℃
Storage Temp.    (-40~+85)℃
Net Weight(kg)    1.15
Case Dimensions(mm)    205.5*131*55

Product Overview:
Fit with up-to-date power supply device, float charger BAC2410 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS:
1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in PFC circuit can calibrate the power factor above 0.99;
4. Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm;
5. Suitable for 24V storage battery and the rated current is 10A;
6. LED display: Power indication (Green light) and charging indication (Red light).
