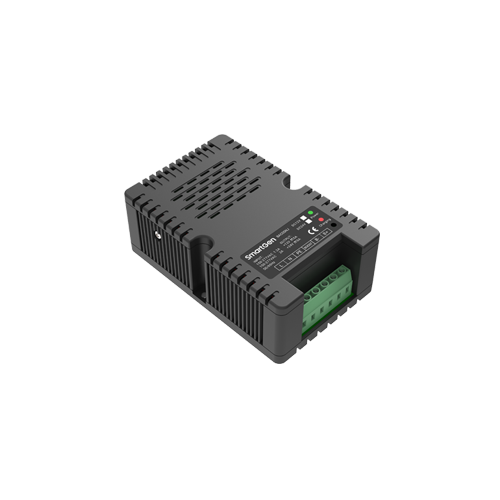

SmartGen BAC05NJ-12V Battery Charger

Technical Parameters:
Battery Voltage  12V/24V
Max. Charging Current  5A
Rated Input Voltage  AC(150~277)V
AC Input Frequency  (50/60)Hz
Max. Input Current  1.2A/2.0A
Max. Input Current  AC(150~305)V
Operating Mode  Two-stage or three-stage
Operating Temp.  (-40~+55)°C
Storage Temp.  (-40~+85)°C
Net Weight(kg)  0.47
Case Dimensions(mm)  136*86*49

Product Overview:
BAC05NJ battery charger adopts switching power supply device, and is specially designed for lead-acid battery used in engine start according to its property. The charger is suitable for long-term complement charging (floating) of lead-acid battery. It is suitable for 24V/12V battery and the maximum output current is 5A.

Characteristics are as below:

1. Applying switching power supply structure, wide range of AC voltage input, small volume, light weight and high efficiency;

2. Two-stage or three-stage charging method based on needs, both of them are designed according to charging properties of the lead-acid battery, which can avoid overcharging and this extends the battery life to the fullest;

3. It has short circuit protection, reverse connection protection, absorption timing, and BOOST functions;

4. LED status display: power indicator, and charging indicator;

5. Applying horizontal installation, which is easy and simple to install.
