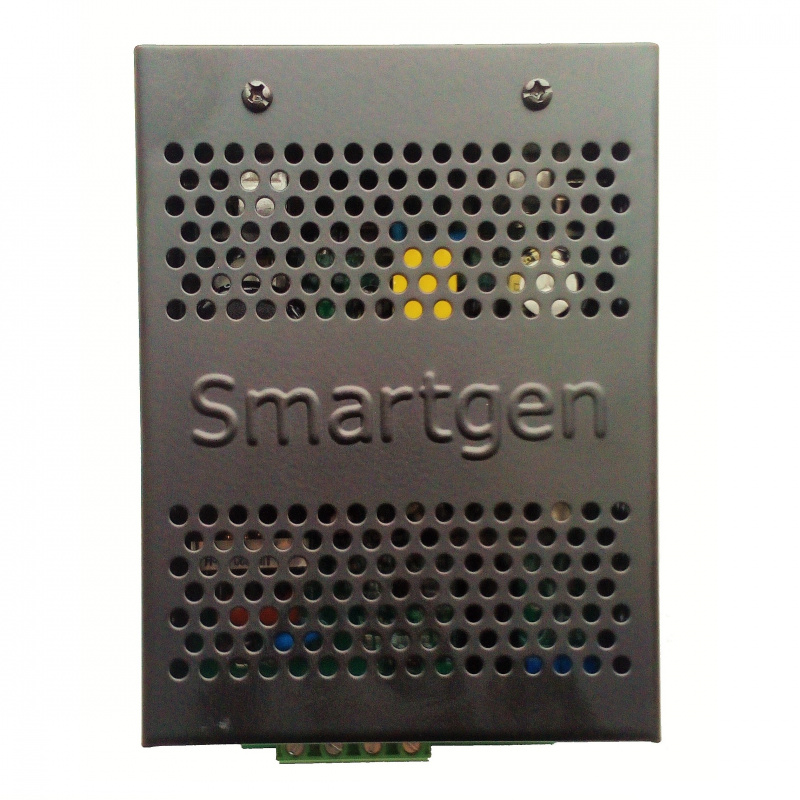

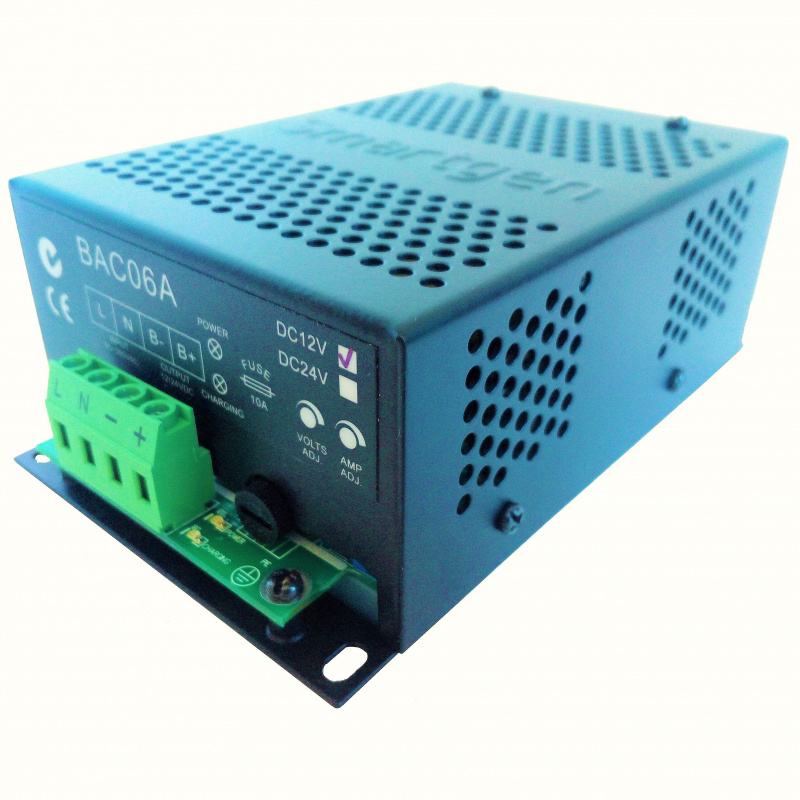

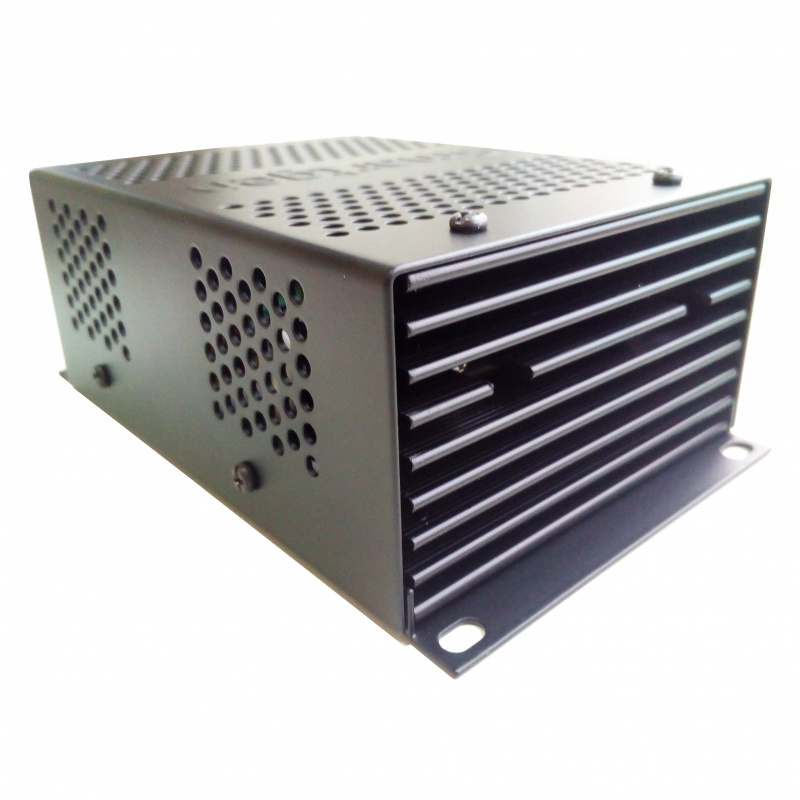

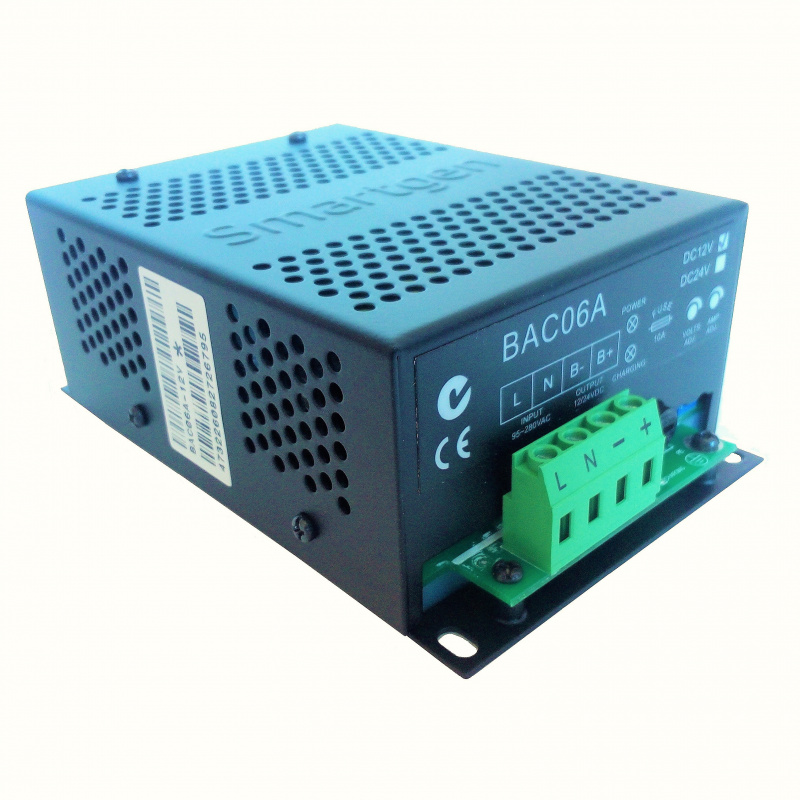

SmartGen BAC06A-12V (12V/6A, 90-280VAC 50/60Hz) Generator Battery Charger

* All prices on this website are retail in USD on EXW incoterms

(0)

Technical Parameters:
Battery Voltage        12V/24V
Max. Charging Current    6A/3A
Rated Input Voltage    (100~240)V
Max. Input Voltage Range    (90~280)V
AC Input Frequency    (50/60)Hz
Max. Input Current    2A
No-Load Power Consumption    <3W
Operating Mode    Two segments
Maximum Efficiency    83%/85%
Operating Temp.    (-30~+55)℃
Storage Temp.    (-40~+85)℃
Net Weight(kg)    0.65
Case Dimensions(mm)    143*96*55

Product Overview:
BAC06 series switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.

PERFORMANCE AND CHARACTERISTICS:
1. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
2. Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
3. With short circuit and reverse connection protection;

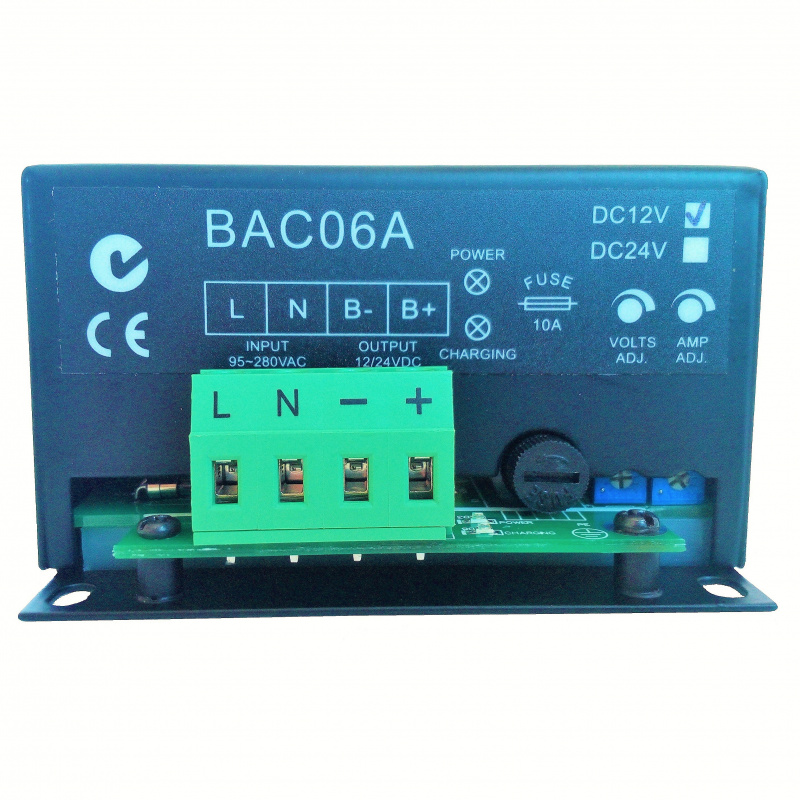

4. Charging voltage and current can be adjusted via potentiometer on the spot;
5. LED display: Power indication and charging indication;
6. Horizontal type for installation of BAV06A, easy to install;
7. Vertical type for installation of BAC06V, furthest decreased installation dimension.
