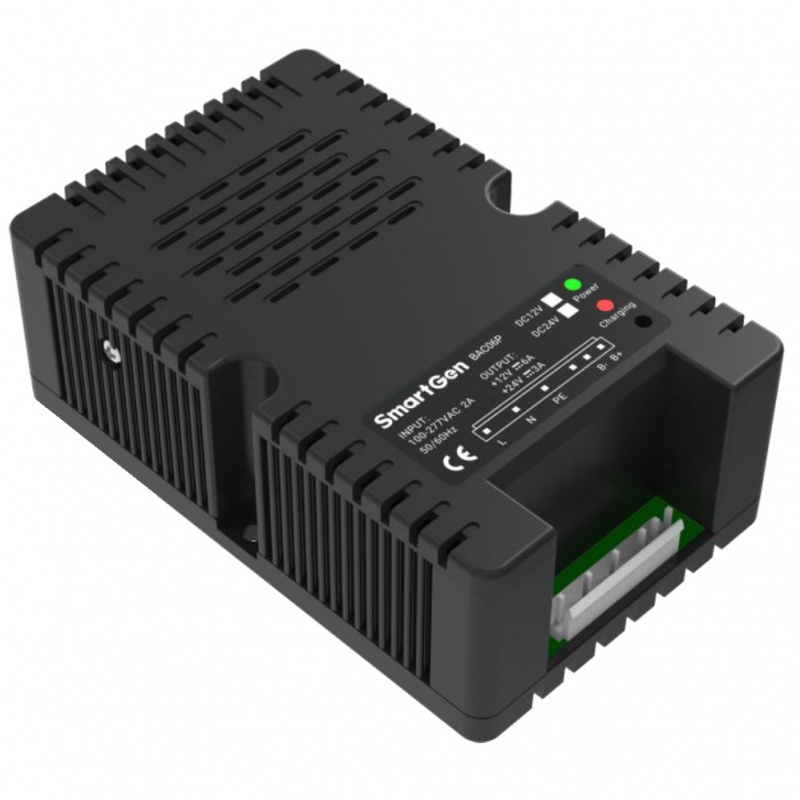

SmartGen BAC06PB-24V battery charger

* All prices on this website are retail in USD on EXW incoterms


Technical Parameters:
Battery Voltage  12V/24V
Max. Charging Current  6A/3A
Rated Input Voltage  AC (100~277)V
Max. Input Voltage Range  AC (90~305)V
AC Input Frequency  50Hz/60Hz
Max. Input Current  2A
No-Load Power Consumption  <2W
Operating Mode  Two&Three segments
Operating Temp.  (-30~+55)°C
Storage Temp.  (-40~+85)°C
Net Weight(kg)  0.47
Case Dimensions(mm)  136*86*49

Product Overview:
BAC06P/BAC06PB series battery charger adopts switching power supply device, and is specially designed for lead-acid battery used in engine start according to its property. The charger is suitable for long-term complement charging (floating) of lead-acid battery. The maximum output current for 12V charger is 6A; the maximum output current for 24V charger is 3A.


Applying switching power supply structure, wide range of AC voltage input, small volume, light weight and high efficiency;

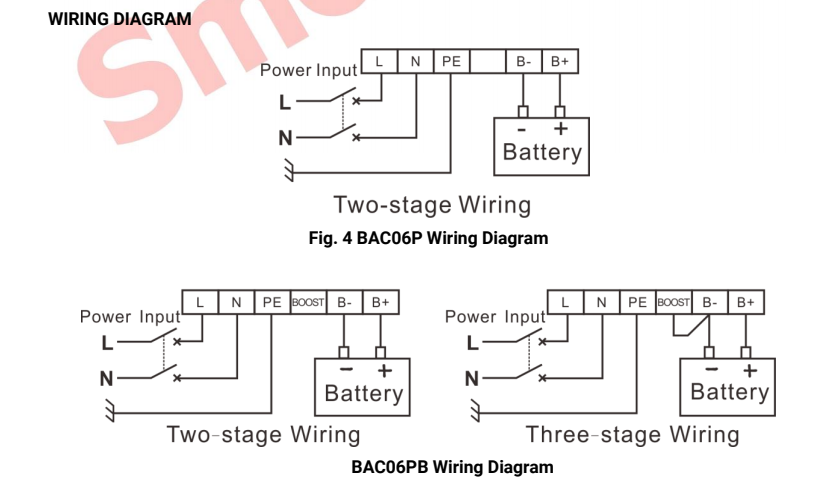

BAC06P adopts two-stage charging method for automatic charging, BAC06PB can be automatically charged by selecting two-stage or three-stage charging method based on needs, both of them are designed according to charging properties of the lead-acid battery, which can avoid overcharging and this extends the battery life to the fullest;

BAC06P has short circuit protection, reverse connection protection; while BAC06PB has short circuit protection, reverse connection protection, absorption timing, and BOOST functions;

LED status display: power indicator, and charging indicator;

Applying horizontal installation, which is easy and simple to install.
