Language Chinese & English & Others
Programmable Input 4
Programmable Output 6
Over Current Warn ●
Current and Power Display ●
Monitor Interface RS485
Programmable Interface RS485/USB
RTC(Real Time Clock) ●
Scheduled Start Genset ●
Circulate Start Genset ●
DC Supply DC(8～35)V
Case Dimensions(mm) 198*154*54
Panel Cutout(mm) 186*141
Operating Temp. (-25~+70)℃

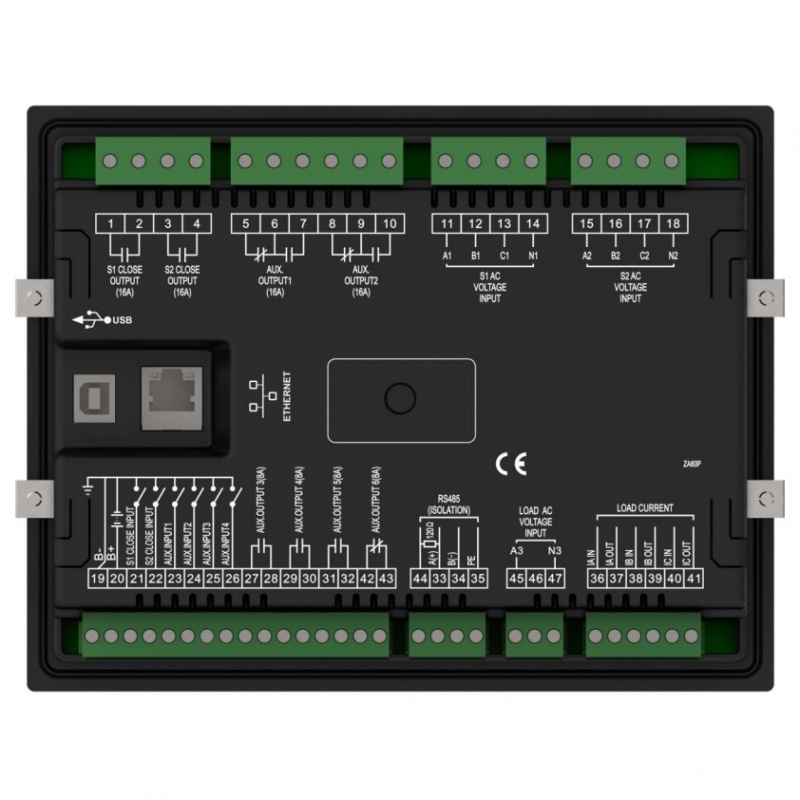

HAT600P Series Dual Power Synchronous ATS Controller is an intelligent dual-supply synchronous transfer module integrating programmable function, automatic measurement, LCD display, and digital communication. It combines digitalization, intelligence and networking. Automatic measurement and control reduces incorrect operation. It is an ideal option for dual power transfer.
HAT600P Series Dual Power Synchronous ATS Controller is made by microprocessor as its core, which can accurately detect 2-way-3-phase voltage, make accurate judgment and output passive control switch for occurred abnormal voltages (overvoltage, undervoltage, loss of phase, overfrequency and underfrequency). This controller is applicable for Mains-Mains, Mains-Gen, Gen-Gen power supply system and can be used for transfer switch of PC class, CB class, and CC class after full consideration on various ATS (Automatic Transfer System) applications; Meanwhile it realizes synchronous transfer of two power supplies. It have compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, electrical devices, automatic control and testing system etc.
Item HAT600P HAT600PB HAT600PI HAT600PBI HAT600PS
DC Supply ● ● ● ● ●
● ● ●
Input Port No.(Fixed+Flexible) 2+4 2+4 2+4 2+4 2+4
Output Port No.(Fixed+Flexible) 2+6 2+6 2+6 2+6 2+6
Genset Control ● ● ● ● ●
RS485 ● ● ● ● ●
USB ● ● ● ● ●
PERFORMANCE AND CHARACTERISTICS

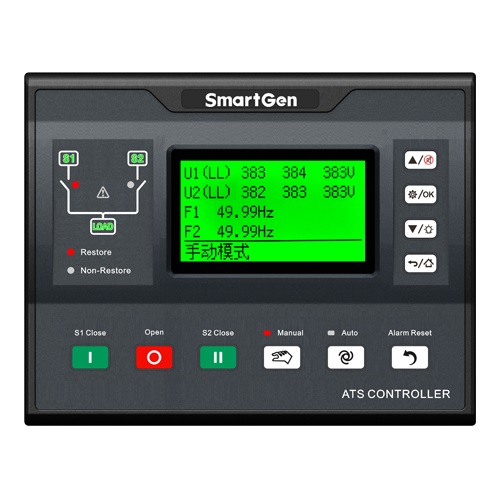

LCD 132x64 pixel with backlight, multiple language display (Simplified Chinese, English, Other), push button operation.
LED lamp can directly display current ATS close/open status, power status and whether load is power on.
System type can be set to: Mains (1#) & Mains (2#), Mains (1#) & Generator (2#), Generator (1#) & Mains (2#), Generator (1#) & Generator (2#).
S1 master, or S2 master can be set; Auto Transfer Auto Recover and Auto Transfer Non Recover are fitted for master power.
Measure and display 2-way 3 phase Voltage, Frequency, and Phase Sequence Status.
Collect and display load active power, reactive power, apparent power, power factor and current.
Independent overcurrent warning or trip alarm functions for S1/S2.
NEL trip function is fitted.
Load voltage monitoring function is fitted.
Display of accumulated active power, accumulated reactive power, accumulated close times is fitted.
Each phase voltage of S1/S2, wave distortion rate of load current and 3-21 odd times harmonic percentage can be measured.
Display of current power supply time and S1/S2 continuous power supply time is available.
Automatic and manual synchronous transfer function is applicable, and the difference of voltage, frequency and phase of two circuits can be displayed.
For energy saving switch, users can wait for and close the switch until PF (close is ready) signal is active.
Overvoltage, undervoltage, overfrequency, underfrequency, loss of phase, reverse phase sequence functions are fitted.
Auto/Manual transfer is fitted, so that breaker can be forced to close or open in manual mode.
All parameters can be configured on site; password is used to verify in case of non professionals wrong operation.
Custom start screen function is fitted.
Commissioning can be done manually on site to conduct genset start/stop operations.
Switch re-close and breakout re-close functions are fitted.
Close output can be set to pulse or continuous output.
Applicable for switches of PC class two segments, PC class three segments, CB class and CC class.
2 circuit N wire isolated design.
Real time clock display, and event log function, which can record 200 data circularly.
Black box function, which can record 5 sets of events of ATS transfer, and 60 detailed data of 50s before one set occurs and 10s after the event.
Scheduled run/not run function for genset, run for once, run monthly or weekly, and run on load or unload can also be set.
Two gensets can be controlled and cycle run, master run, and balanced time run can be realized.
Wide DC supply range, maximum 80V DC input for transient.
Wide wire terminal space of AC input, maximum 625V voltage input.
USB port, provides convenience for on-site debugging, and parameter or software upgrade.
RS485 isolated communication port, makes the controller has remote control, remote communication, remote measuring, remote debugging functions by ModBus-RTU; it can remote control genset start/stop, ATS close and open.
ETHERNET port, makes the controller has remote control, remote communication, remote measuring, remote debugging functions by ModBus TCP/IP; it can remote control genset start/stop, ATS close and open.
Suitable for multiple AC system types (3Ph 4W, 3Ph 3W, Single Phase 2W, 2 Ph 3W).
Master and backup power supply can be set; ATS can normally work if one circuit is normal.
Controller uses metal clips to fix.
Modular structure design, anti-flammable ABS shell, pluggable wire terminal, built-in installation method; structure is compact and installation is easy.
