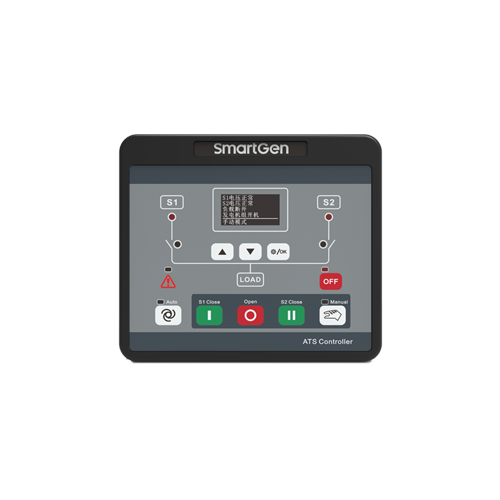

SmartGen HAT360 Dual Power ATS Controller

Technical Parameters:
AC System   1P2W/2P3W/3P3W/3P4W
Alternator Frequency   50/60Hz
Applicable Switch Type   two-breaking, one-breaking, no-breaking switch
Case Dimensions(mm)   143*124*49
Panel Cutout(mm)   132*113
Operating Temp.   (-25~+70)℃


Product Overview:

HAT360 series dual power ATS controller is made with the microprocessor as the core, which can precisely measure 2-way voltages, make correct judgment and control outputs for occurred voltage abnormal (over voltage, under voltage, over frequency, under frequency, loss of phase, reverse phase sequence). It realizes automatic and intelligent transfer of ATS, integrates OLED display, digital communication at the same time, and realizes good human-computer interaction function, which is an ideal product for dual power ATS.


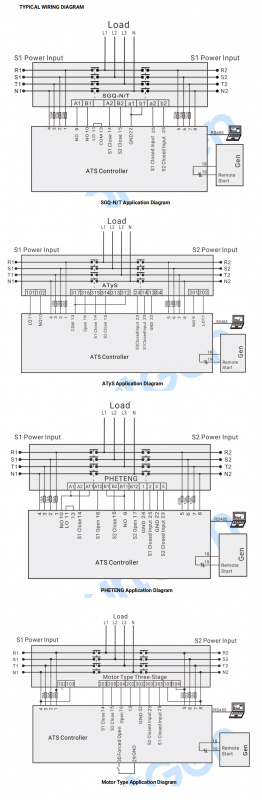

PERFORMANCE AND CHARACTERISTICS

1. System can be set to: 3P4W, 3P3W, 2P3W, or 1P2W AC type;
2. With MCU intelligent and precise monitoring and control;
3. S1 master, S2 master can be set, auto transfer/restore, auto transfer, non-restore switch of master power is fitted;
4. With Auto/Manual mode;
5. With OFF mode, in which breaker close/open is inactive;
6. System type can set to: S1 Mains S2 Mains, S1 Mains S2 Gen, S1 Gen S2 Mains;
7. Measure and display 2-way 3-phase voltage, frequency and alarm status;
8. Suit for two-breaking, one-breaking, no-breaking switch;
9. Switch re-closing function is fitted;
10. ATS can be configured to work through master and backup power supply, it can work normally as long as any power supply is normal;
11. With RS485 isolated communication port (option), enables “remote control, remote measuring, remote communication, remote adjusting” function with ModBus communication protocol; ATS close/open can be controlled remotely;
12. With overvoltage, undervoltage, overfrequency, underfrequency, loss of phase, reverse phase sequence detection function, overvoltage/undervoltage threshold, overfrequency/underfrequency threshold can be set;
13. Manual test is fitted, which can conduct genset start/stop;
14. LED can intuitively display current ATS close status, power status, manual/auto/OFF mode and alarm;
15. 2-way N wire isolated design.
