SmartGen SG485 Communication Interface Conversion Module LINK-RS485

Technical Parameters:
Power Supply Mode LINK interface
Case Dimensions(mm) 91*42*61
Operating Temp. (-40～+70)℃
Weight 0.06KG

Product Overview:

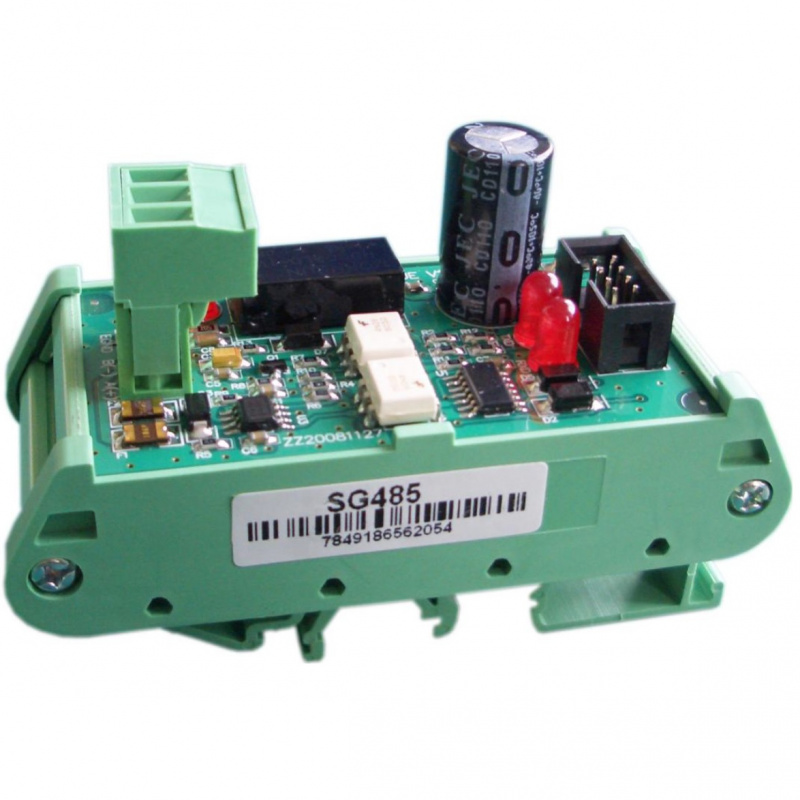

SG485 Communication Interface Conversion Module can convert the communication interface from LINK (Smartgen special) to isolated standard RS485.  The module integrated DC/DC power isolation and RS485 interface chip which enable it to connect to RS-485 network.

PRODUCT FEATURE

1. RS485 network can connect to maximum 32 nodes;
2. Isolation Voltage: reach up to DC1000V;
3. Power supplied by LINK interface and there is no need to connect to external power supply.
4. Baud rate ≤ 9600bps；
5. Humidity：20%~90%(No Condensation)；
6. Working Temperature：-40℃~+70℃；
7. Case Dimension：91*42*61mm(L*W*H)；
8. Weight：0.06kg.
