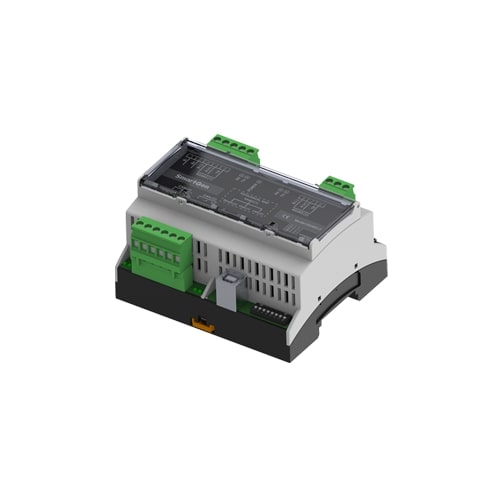

SmartGen SG485-2CAN communication interface conversion module

Technical Parameters:
Operation Voltage    DC(8～35)V
Case Dimensions(mm)    107.6*93.0*60.7
Operating Temp.        (-40~+70)℃
Weight        0.2kg

Product Overview:

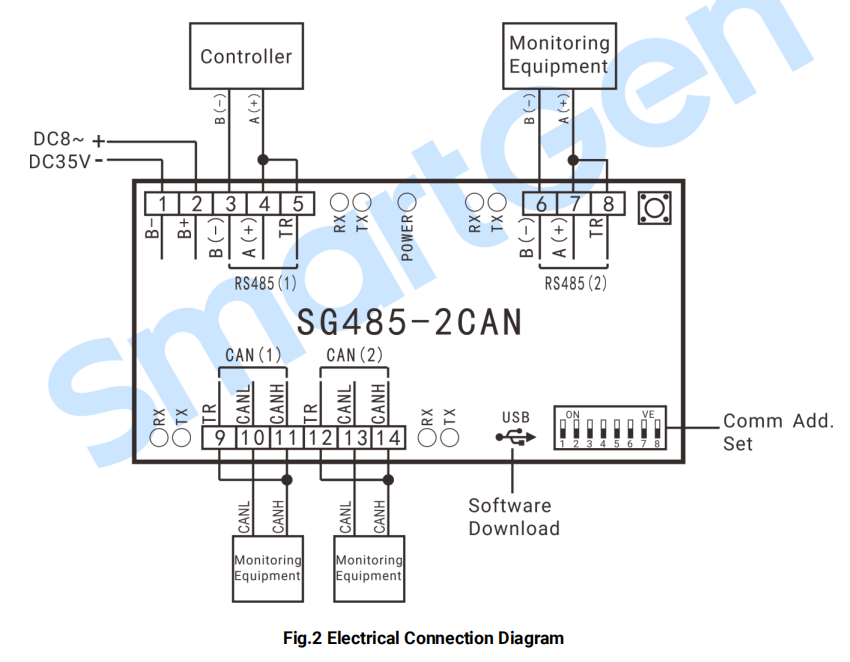

SG485-2CAN is a communication interface conversion module, which has 4 interfaces, namely RS485 host interface, RS485 slave interface and two CANBUS interfaces. It is used to convert 1# RS485 interface to 2# CANBUS interfaces and 1# RS485 interface by DIP switch to set address, providing convenience for customers to monitor and collect data.



PERFORMANCE AND CHARACTERISTICS

With 32-bit ARM SCM, high hardware integration, improved reliability;

35mm guide rail installation method;

Modular design and pluggable connection terminals; compact structure with easy mounting.
