SmartGen PTM6940A Transformer Module. Potential Transformer Modules.Technical Parameters: Case Dimensions(mm) 88*188*72 Operating Temp. (-25~+70)°C Weight 2.839kg Product Overview: PTM6940A is a transformer module that converts the input voltage of 690VAC (rated) to the output voltage of 400VAC (rated), which can be used with controller for high voltage acquisition. PERFORMANCE AND CHARACTERISCTICS 1. Input voltage range: (0~828) VAC; 2. Output voltage range: (0~480) VAC; 3. Phase shift: ≤2°; 4. Accuracy: ≤1%; 5. Signal isolation; 6. Applicable for 3P3W and 3P4W systems; 7. Load power: >10VA.

* All prices on this website are retail in USD on EXW incoterms

SmartGen PTM6940A User Manual v1-0

(0)

Inquire

Description
Comments

Technical Parameters:

Case Dimensions(mm)   88*188*72
Operating Temp.   (-25~+70)°C
Weight   2.839kg

Product Overview:

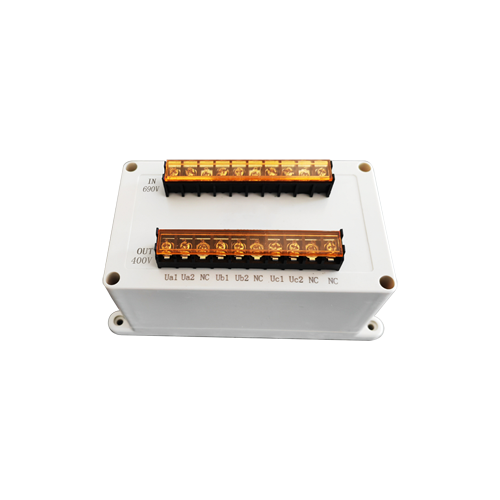

PTM6940A is a transformer module that converts the input voltage of 690VAC (rated) to the output voltage of 400VAC (rated), which can be used with controller for high voltage acquisition.

PERFORMANCE AND CHARACTERISCTICS

1. Input voltage range: (0~828) VAC;
2. Output voltage range: (0~480) VAC;
3. Phase shift: ≤2°;
4. Accuracy: ≤1%;
5. Signal isolation;
6. Applicable for 3P3W and 3P4W systems;
7. Load power: >10VA.
