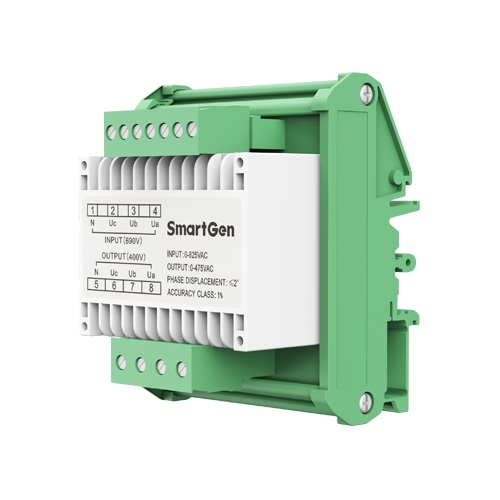

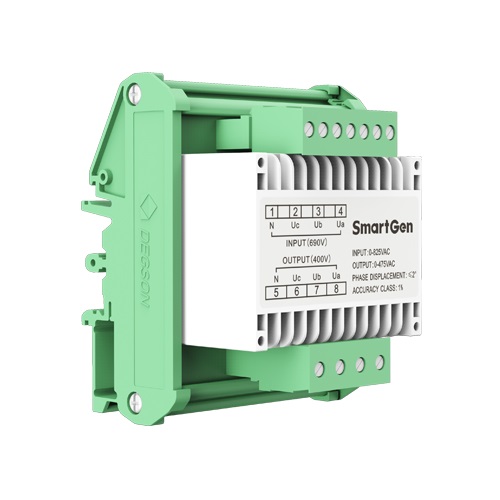

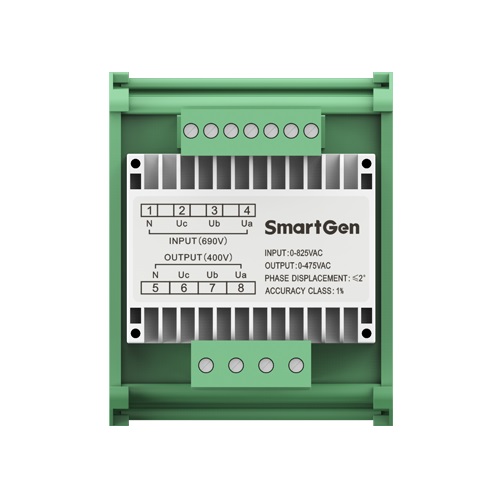

SmartGen PTM6940 Potential Transformer Module. Potential Transformer Modules.Technical Parameters: Case Dimensions(mm) 72.0*89.6*63.2 Operating Temp. (-25~+70)℃ Weight 0.39KG Product Overview: PTM6940 Potential Transformer Module is a kind of PT module which transforms input voltage 690VAC (Rated) to output 400VAC (Rated). It can be applied in higher voltage collection scenario together with a controller. PERFORMANCE AND CHARACTERISTICS Input voltage range: 0~825VAC; Output voltage range: 0~475VAC; Phase shift: ≤2°; Accuracy: ≤1%; Realize signal insulation; Suitable for 3Ph 3W, and 3Ph 4W.

* All prices on this website are retail in USD on EXW incoterms

SmartGen PTM6940 User Manual v1-3

(0)

Inquire

Description
Comments

Technical Parameters:
Case Dimensions(mm) 72.0*89.6*63.2
Operating Temp. (-25~+70)℃
Weight 0.39KG

Product Overview:
PTM6940 Potential Transformer Module is a kind of PT module which transforms input voltage 690VAC (Rated) to output 400VAC (Rated). It can be applied in higher voltage collection scenario together with a controller.

PERFORMANCE AND CHARACTERISTICS

Input voltage range: 0~825VAC;

Output voltage range: 0~475VAC;

Phase shift: ≤2°;

Accuracy: ≤1%;

Realize signal insulation;

Suitable for 3Ph 3W, and 3Ph 4W.
