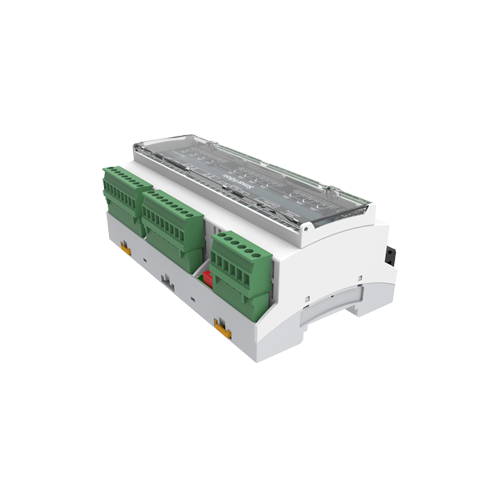

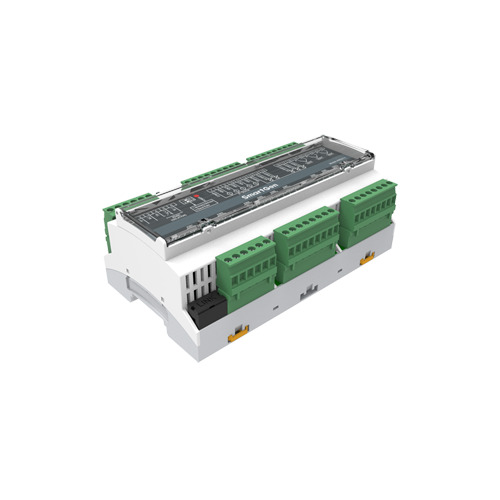

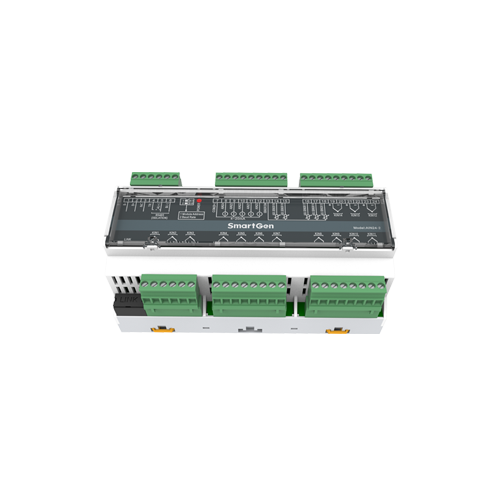

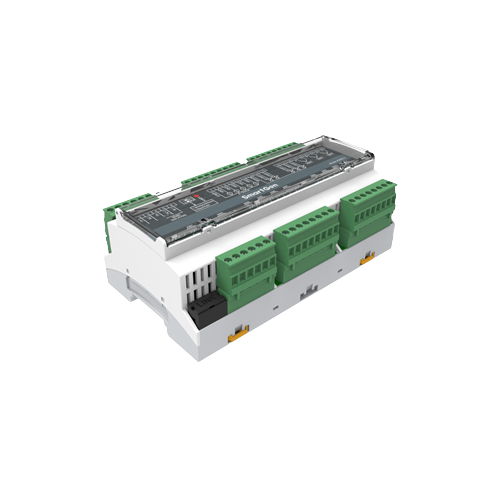

SmartGen AIN24-2 Analog Input Module

Technical Parameters:
DC Supply    DC(8～35)V
Case Dimensions(mm)    161.6*89.7*60.7
Operating Temp.    (-25~+70)℃
Power Consumption    <0.5W
Weight    0.33kg

Product Overview:

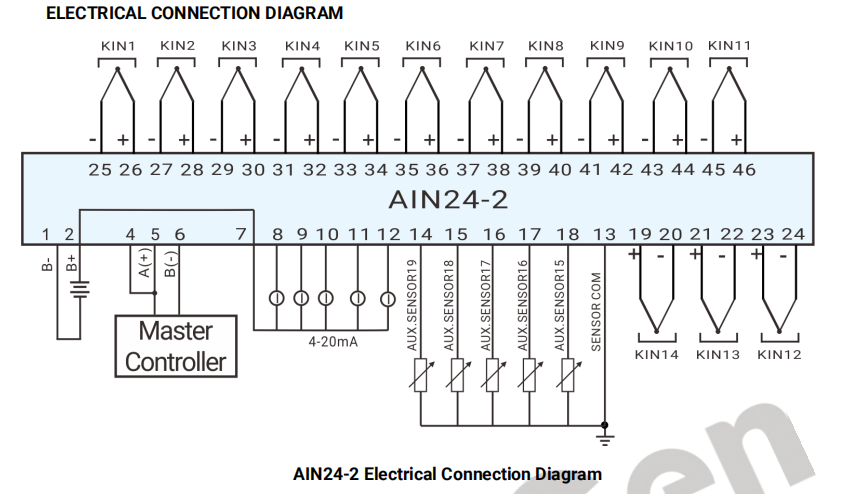

AIN24-2 Analog Input Module is a module which has 14-way K-type thermocouple sensor, 5-way resistance type sensor and 5-way (4-20)mA current type sensor. The sampling data are transmitted to the master controller via RS485 port.



PERFORMANCE AND CHARACTERISTICS

With 32-bit ARM based SCM, high integration of hardware and more reliable;

Must be used with master controller together;

RS485 communication baud rate can be set as 9600bps or 19200bps via dial switch;

Module address can be set as 1 or 2;

Wide power supply range DC(8~35)V, suitable to different battery voltage environment;

35mm guide rail mounting type;

Modular design, pluggable terminal, compact structure and easy installation.
