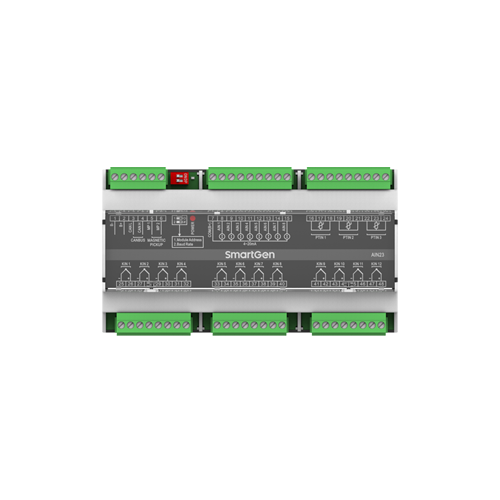

SmartGen AIN23 Analog Input Module

* All prices on this website are retail in USD on EXW incoterms


Technical Parameters:
DC Supply   DC(8~35)V
Case Dimensions(mm)   161.6*93*60.7
Operating Temp.   (-25~+70)°C
Weight   0.34kg

Product Overview:

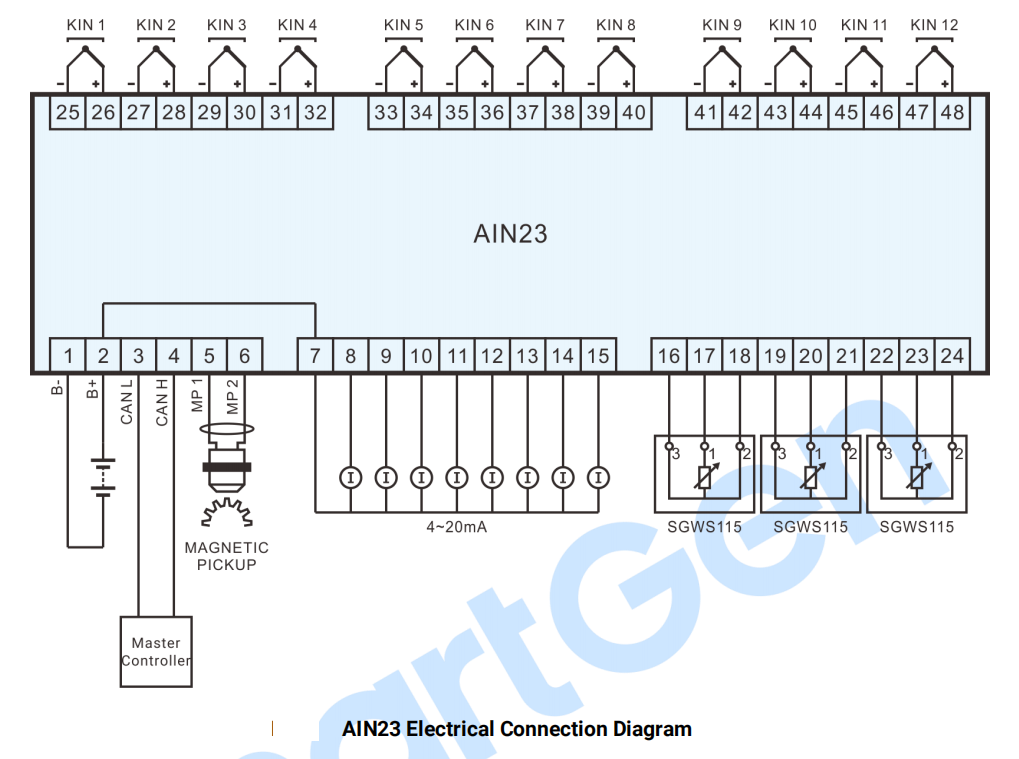

AIN23 Analog Input Module is a module which has 12-way k-type thermocouple sensor, 3-way PT100 resistance type sensor, 8-way (4-20) mA current type sensor and 1-way speed sensor. The sampling data are transmitted to the master control via CANBUS.


1. bit ARM based SCM, high integration of hardware and more reliable;
2. cision collection of various analog data;
3.  CANBUS interface can connect with master controller, the sampling data (temperature, current, resistance, speed, etc.) are transmitted to the master controller via CANBUS;
4. BUS communication baud rate can be set as 250kbps or 125kbps;
5. ule CANBUS address can be set as 1 or 2;
6. e power supply range DC(8~35)V, suitable to different battery voltage environment;
7. ular design, flame-retardant ABS shell, pluggable terminal, compact structure, 35mm guide-rail mounting with easy installation.
