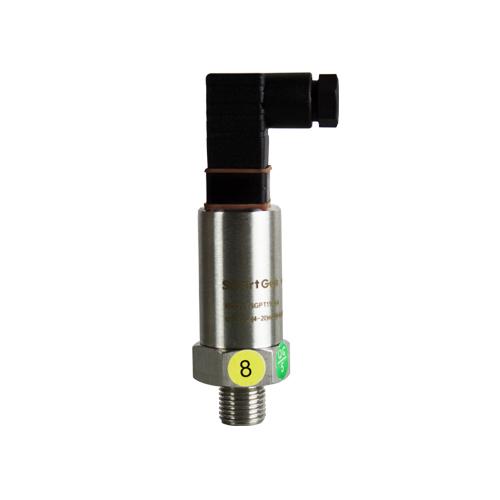

SmartGen SGPT110-0.4 Piezoresistive Pressure Transmitter

Product Overview
SGPT110-0.4 piezoresistive pressure transmitter is based on MEAS original advanced highly stable silicon piezoresistance transmitter， which is installed into a 304 stainless steel enclosure. With premium performance of compatibility, stability, reliability and accuracy, SGPT110 can be widely used for gas and liquid ( compatible with stainless steel 304) pressure measurement.

PERFORMANCE AND CHARACTERISTICS
1. Measuring range: (0~0.4)MPa
2. Two-wire standard output：4 mA ~20 mA
3. Wide working temperature range: (-40°C~125°C), with temperature compensation and common mode rejection functions.
4. Whole stainless steel structure
5. O-shape gasket
6. Pluggable connection, small volume, and low power consumption.
