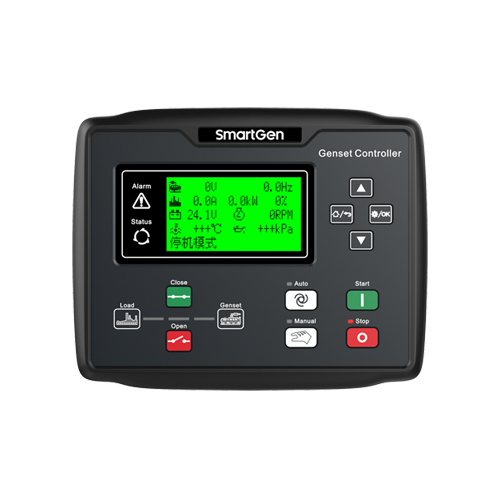

SmartGen HGMS61 Genset Controller

Technical Parameters:
Display  LCD(132*64)
Operation Panel  Silicon Rubber
Language  Chinese & English & Others
Digital Input  4
Relay Output  6
Analogue Input  3
AC System  1P2W/2P3W/3P3W/3P4W
Alternator Frequency  50/60Hz
kW/Amp Detecting & Display  ●
Monitor Interface  USB/RS485
Programmable Interface  USB/RS485
CANBUS(1939)  HGMS61MCAN ●
RTC & Event Log  ●
Scheduled Start Genset  ●
Maintenance  ●
DC Supply  DC(8-35)V
Case Dimensions(mm)  HGMS61D：209*167*45 HGMS61M：248*158*64
Panel Cutout(mm)  HGMS61D：186*141
Operating Temp.  (-25~+70)℃

Product Overview:
HGMS61 Genset Controller adopts split structure of “Master Control and Display”, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and “four remote” (remote control, remote measure, remote communication and remote adjustment). The controller uses monochrome LCD display, optional interface with multiple languages, which is easy and reliable to operate.

HGMS61 Genset Controller uses 32-bit microprocessor technique which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. Its equipped fuse, fuel and start relay are pluggable. The compact structure and simple wiring of the controller solve the problem of complex wiring and low efficiency, and improve the production efficiency of the control cabinet. It can be widely used in various types of automatic control system.



PERFORMANCE AND CHARACTERISTICS

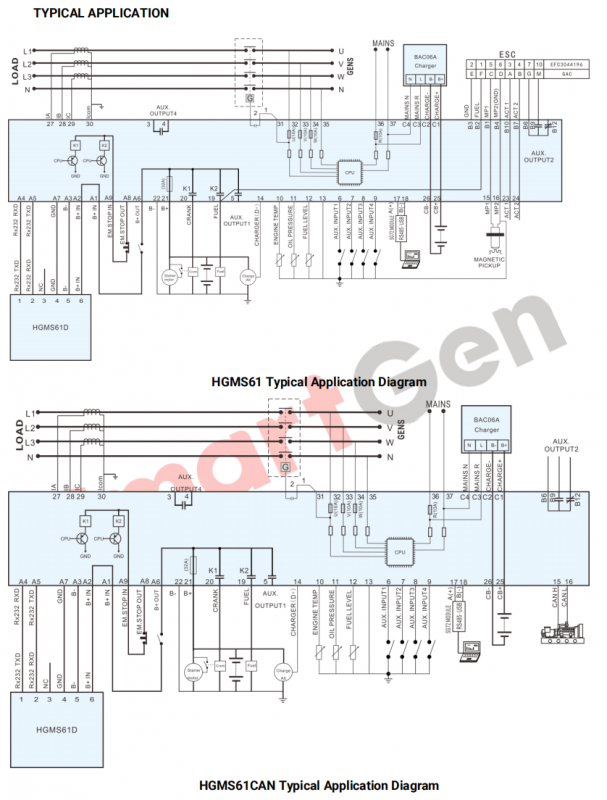

HGMS61: HGMS61D+HGMS61M；  HGMS61CAN: HGMS61D+HGMS61MCAN.

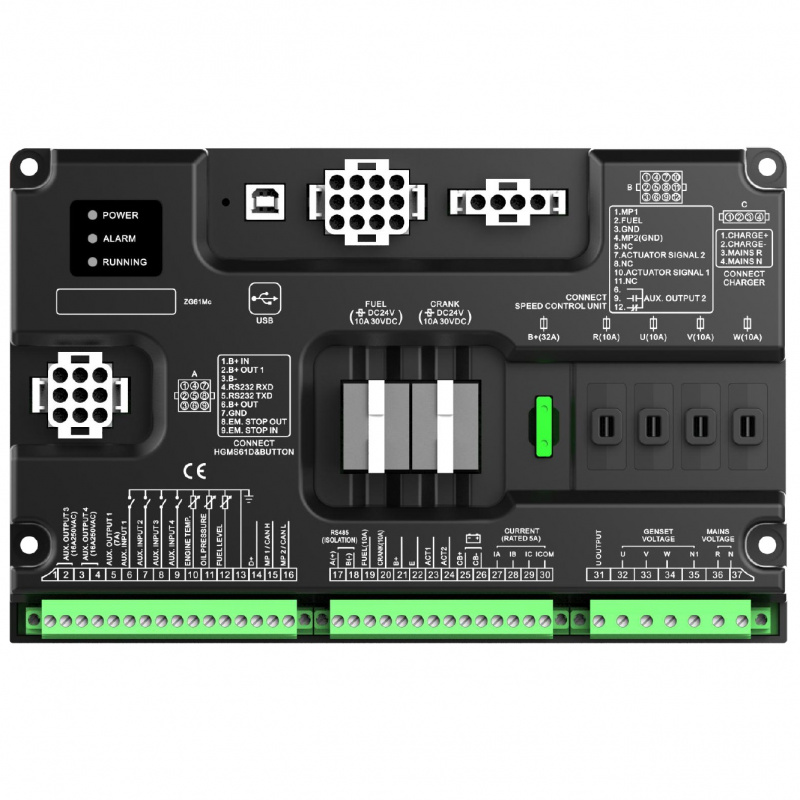

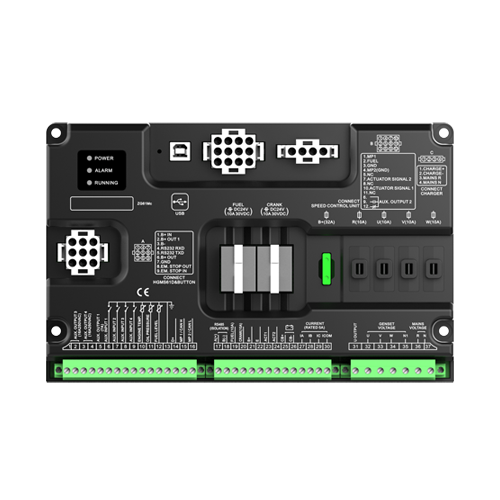

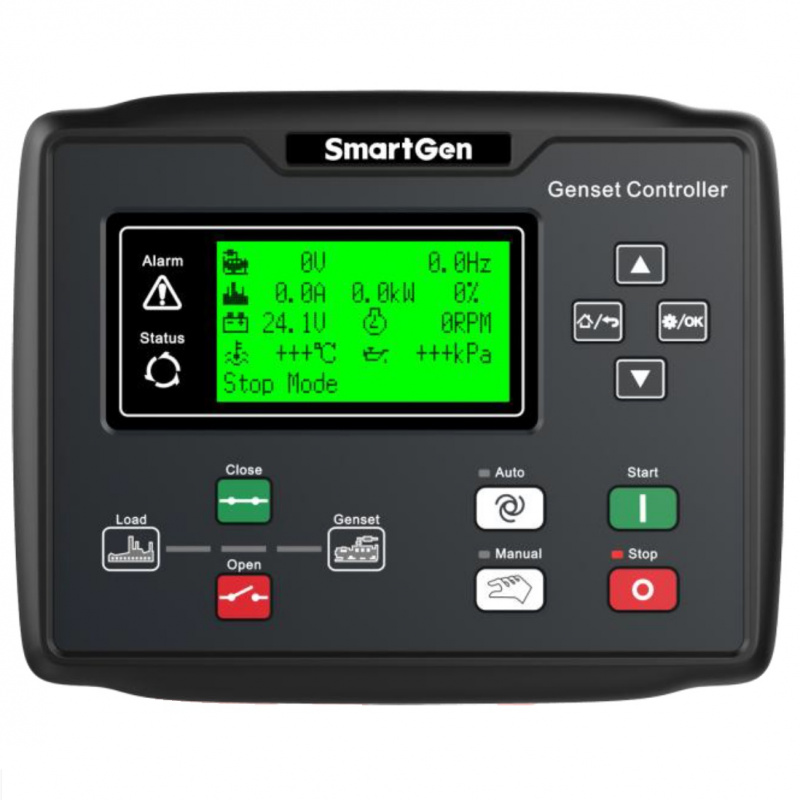

Display Module: HGMS61D,         Master Control Module: HGMS61M, HGMS61MCAN.

HGMS61D: Display control module.

HGMS61M: MPU interface, suitable for ESC controlled engines.

HGMS61MCAN: CAN BUS interface, suitable for ECU controlled J1939 engines.

Note: HGMS61 is taken as an example for following descriptions.


Its main features are as follows:

1. 132x64 resolution LCD with backlight, optional language interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), can be selected through the panel, which is convenient for debugging personnel;

2. With RS485 communication port, can achieve “four remote” functions (remote control, remote measure, remote communication and remote adjustment) via MODBUS protocol;

3. Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system;

4. Can measure and display 3-phase voltage, 3-phase current, frequency, power parameter of gens;

5. With over/under voltage, over/under frequency, over current and over power functions of Gens.

6. Precision measure and display of various parameters of the engine:

Temp. (WT)                         °C/ °F

Oil pressure (OP)                      kPa/psi/bar

Fuel level (FL)                       %

Speed (SPD)                          r/min (RPM)

Battery Voltage (VB)                  V

Charger Voltage (VD)                 V

Accumulated running hours           Up to 999999 hours

Accumulated start times              Up to 999999 times

7. Control protection: automatic start/stop of genset, closing/opening and perfect failure display and protection functions;

8. With ETS, idle speed control, pre-heat control, speed droop/raising control, all of them are relay output;

9. Parameter setting: allow users to modify setting, the parameters cannot be lost even when power off. Most of parameters can be set from the front panel, all parameters can be adjusted via USB interface (or RS485 interface) of PC.;

10. A variety of temperature, pressure and fuel level sensor curves can be used directly, and can be defined by users;

11. Multi conditions of crank disconnect (frequency, speed, oil pressure) can be selected;

12. Wide power supply range: DC(8~35)V, adapting to different starting battery volts;

13. Event log, RTC, scheduled start/stop (once a month/week/day can be set whether to take load or not);

14. With maintenance function. Maintenance time or actions (warning or alarm shutdown) can be set;

15. Add rubber gasket between shell and controller screen of the waterproof can reach IP65;

16. HGMS61D is fixed by metal fixing clips and HGMS61M is fixed with screws;

17. Modular design and pluggable terminal, compact structure and easy installation.
