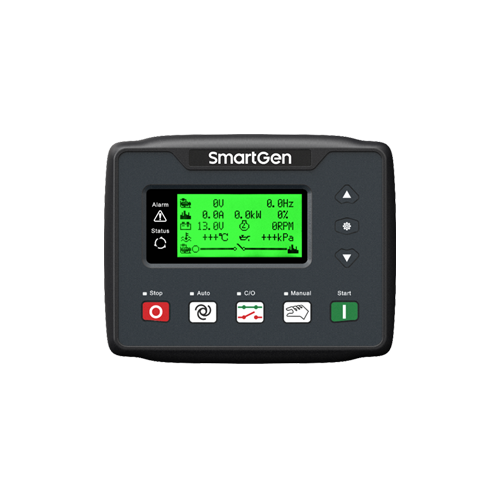

SmartGen HGM4100LT-RM Remote Monitoring Controller

* All prices on this website are retail in USD on EXW incoterms


Product Overview:

HGM4100LT-RM Remote Monitoring Module is a remote monitoring module of HGM4100LT genset controller. It realizes the remote start/stop, data measurement, alarm display and other functions through RS485, and is used for remote monitoring system of a single unit.

HGM4100LT-RM Remote Monitoring Module is designed especially for adapting extremely low/high temperature (-40~+70)°C, which integrates digital, intelligent and network technology. It applies LCD display, optional interface operation with eight languages (Chinese, English, Spanish, Russian, Turkish, French, Portugal, and Polish). It is simple to operate and reliable to work. Because of the characteristics of compact structure, simple wiring connection and high reliability, it can be widely used in all types of automatic genset control system.


•LCD display with backlight, 132x64 size, and eight language display (Chinese, English, Spanish, Russian, Turkish, French, Portuguese, and Polish), push-button operation;
•Hard acrylic screen material with great wear-resisting and scratch-resisting performance, which are used to protect the screen;
•Silicone panel and pushbuttons which can better adapt extreme temperature environment;
•RS485 communication interface, which enables “Three remote” (remote control, remote measuring and remote communication) functions by MODBUS protocol;
•Displaying 3-phase voltage, 3-phase current, frequency, and power parameters;
•Line voltage (Uab, Ubc, Uca)
•Phase voltage (Ua, Ub, Uc)
•Frequency (Hz)
•Phase sequence
•Current    Ia, Ib, Ic                             A (unit)
•Each phase and total active power  P             kW (unit)
•Reactive power  Q                              kvar (unit)
•Apparent power  S                              kVA (unit)
•Power factor  PF
•Accumulated total generator power   W           kWh, kvarh, kVAh (unit)
•Output percentage with loading    %
•Displaying all kinds of parameters for the generator:
•Temp.                    °C / °F
•Oil Pressure               kPa/psi/bar all be displayed
•Fuel Level                 % (unit)         Fuel Quantity Left  L (unit)
•Speed                     r/min (RPM)
•Voltage of Battery           V (unit)
•Voltage of Charger          V (unit)
•Hour count accumulation
•Start times accumulation
•Parameter setting function: it allows users to change and set parameters and meanwhile they shall be stored in the internal FLASH. They shall not be lost even in case of power outage; All of them can be adjusted from the front panel of the controller and also can be modified on PC via USB or RS485 port;
•Wide power supply range (8~35)VDC, which is suitable for different starting battery voltage environment;
•All parameters apply digital adjustment, getting rid of conventional analog modulation of normal potentiometer, improving the reliability and stability of the whole device;
•Rubber seal designed between the shell and the screen with protection level IP65;
•Metal fixing clips are used to fix the controller;
•Modular structure design, anti-flaming ABS plastic enclosure, pluggable connection terminals and embedded installation way with compact structure and easy mounting.
