Technical Parameters:
Display LCD(132*64)
Operation Panel Silicon Rubber
Language Chinese & English & Others
Relay Output 7
AC System 1P2W/2P3W/3P3W/3P4W
Alternator Frequency 50/60Hz
Monitor Interface RS485/ETHERNET
Programmable Interface RS485/USB/EHTERNET
CANBUS(1939) ●
RTC & Event Log ●
Scheduled Start Genset ●
Maintenance ●
Ethernet ●
DC Supply DC(8~35)V
Case Dimensions(mm) 136*110*41
Panel Cutout(mm) 121*93
Operating Temp. (-40~+70)℃
Product Overview:
HGM8140 military genset controller, integrated digitization, intelligentization, and networking technology, adopts “Main Control and Display “separated type mode. It is suitable for single unit automation and monitoring system to achieve automatic start/stop, data measurement, alarm protection as well as remote control, remote measurement and remote communication functions. HGM8140 controller, can be worked in (-40℃~+70℃), has LCD display, selectable Chinese, English and other languages interface, and it is reliable and easy to use. It is with SAE J1939 interface that can communicate with a number of ECU (ENGINE CONTROL UNIT) which equip with J1939.
HGM8140 controller adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc..Majority parameters can be configured from front panel, and all parameters can be configured by USB interface (or RS485, ETHERNET) to adjust via PC. It can be widely used in all types of automatic gen-set control system with compact structure, advanced circuits, simple connections and high reliability.
PERFORMANCE AND CHARACTERISTICS
HGM8140 military controller: ASM(Aotomatic Start module), it controls generator to start/stop by detecting DC input voltages or remote start signals.

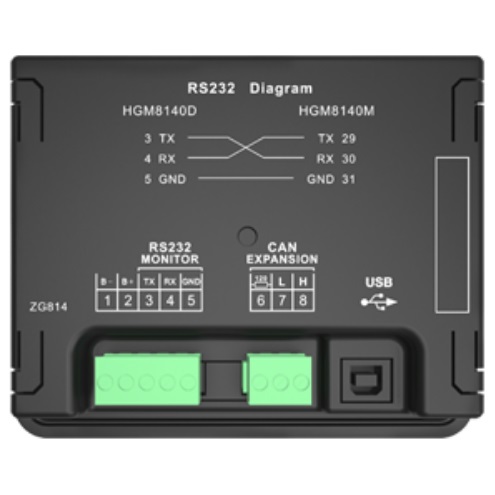

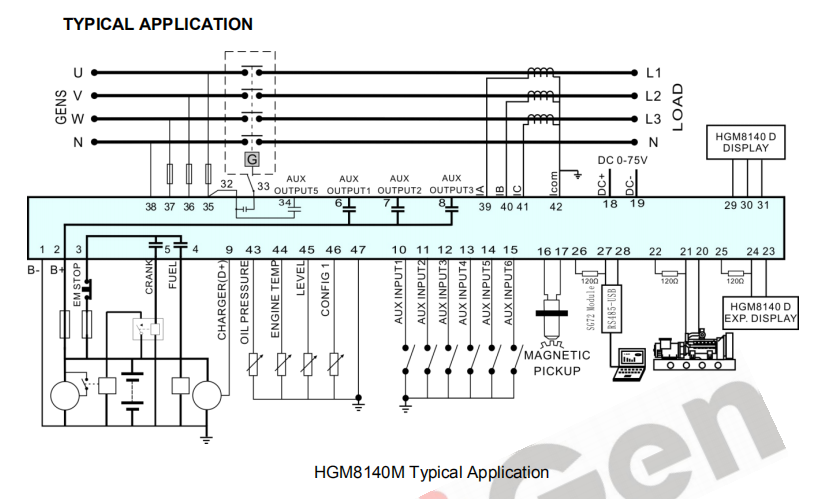

HGM8140 controller contains two modules: HGM8140M (host module) and HGM8140D (display module). Two modules are communicate with each other by RS232 or CAN BUS port.
HGM8140M(host module): it is used for collecting genset parameters, monitoring and protecting genset, and realizing genset auto start /stop function.

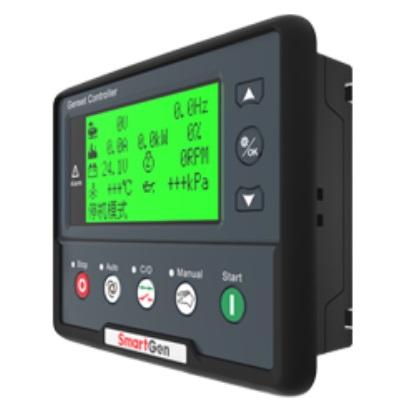

HGM8140D(display module): it is used for displaying genset’s parameters, adjusting parameters and controlling genset by the keys on the front panel of controller.
Main features are as follows:
132x64 LCD with backlight, selectable language interface (Chinese, English and Spanish), push-button operation.
Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions.
Silicone panel and pushbuttons can be used in extreme temperature environment.
RS485 communication interface enable “Three remote functions” (remote control, remote measuring and remote communication) according to MODBUS protocol.
ETHERNET communication port can achieve multi-monitoring modes.
Equipped with CAN BUS port and can communicate with J1939 genset. Not only can monitor frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown , raising speed and speed droop via CAN BUS port (need controller with CANBUS interface).
HGM8140M can connect with HGM8140 D display module, it is convenient to use in special occasions. HGM8140 D can be set as RS232 port display module or CAN port display module via front panel keys operation. HGM8140 D module also be set as enabled/disabled control, if it is able to control, HGM8140M can be controlled by HGM8140D, otherwise, HGM8140D without remote control function.
Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50Hz/60Hz;
Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.
Mains
Line voltage (Uab, Ubc, and Uca)
Phase voltage (Ua, Ub, and Uc)
Frequency Hz
Phase sequence
Load
Current IA,IB,IC
Each phase and total active power kW
Reactive power kVar
Power factor PF
Load output percentage %
Apparent power kVA
Accumulate total generator power kWh
For generator, controller has over and under voltage, over and under frequency, over current and over power detection functions.
Precision measure and display parameters about Engine.
Temp. (WT) °C/°F both be displayed
Oil Pressure (OP) kPa/psi/bar all be displayed
Fuel Level (FL) %(unit) Fuel Quantity Left L(unit)
Speed (RPM) r/min (RPM)
Voltage of Battery V (unit)
Voltage of Charger V (unit)
Hour count accumulation
Start times accumulation
Protection: automatic start/stop of the gen-set, ATS (Auto Transfer Switch) control with perfect fault indication and protection function.
With ETS (energize to stop), idle control, pre-heat control and rise/drop speed control functions, which are all relay outputs.
Parameter setting: parameters can be modified and stored in internal FLASH memory and cannot be lost even in case of power outage; most of them can be adjusted using front panel of the controller and also can be modified using PC via USB or RS485 port.
Multiple temperature, pressure, oil pressure sensor can be used and self-defined directly.
Multiple crank disconnect conditions (speed sensor, oil pressure, generator frequency) are optional.
All display interfaces can be adjusted.
With emergency start function, which can be achieved by input port (Emergency Start) or press manual button and start button simultaneously on the panel. This function is used in the status of very low temperature in the winter and start genset manually in a very long time.
With battle mode, all shutdown alarms except for emergency shutdown and over speed warning alarms are inhibited
With flywheel tooth number automatic recognition function.
Widely power supply range DC(8~35)V, suitable to different starting battery voltage environment.
All parameters used digital adjustment, instead of conventional analog modulation with normal potentiometer, more reliability and stability.
With maintenance function. Types (date and running time) can be optional and actions (warning, shutdown or trip and stop) can be set when maintenance time out.
Event log function. Maximum 99 event logs can be memorized.
Data analysis function. 5 circular logs and genset detailed data in one minute before shutdown alarms.
Real-time clock, scheduled start & stop generator (can be set as start genset once a day/week/month whether with load or not)
Waterproof security level IP65 due to rubber seal installed between the controller enclosure and panel fascia;
Modular design, anti-flaming ABS plastic enclosure, pluggable connection terminals and embedded installation way; compact structure with easy mounting.
