Rated Power 238W
Rated Voltage AC240V
Rated Current 1A
Thermostat Range Off：50ºC On：35ºC
Electrical Strength AC 1.5kV 1min Leakage Current≤3mA
Insulating Resistance ≥50MΩ
Max. Water Pressure 0.5MPa
Protection Level IP65
Vibration Resistance 5 ~ 8 Hz: 17mm 8 ~100 Hz: a=4g 100-500 Hz: a=2g IEC 60068-2-6
Lubricant Oil Volume(L) 2~50L
Case Dimensions(mm) 195*43*43
During cranking, if the outside temperature is lower than 4ºC, engine lubricant may lose its lubricating properties, which can damage the engine. Engine oil heater should be installed to ensure normal starting and running of the engine when the outside temperature is lower than 4 ºC.

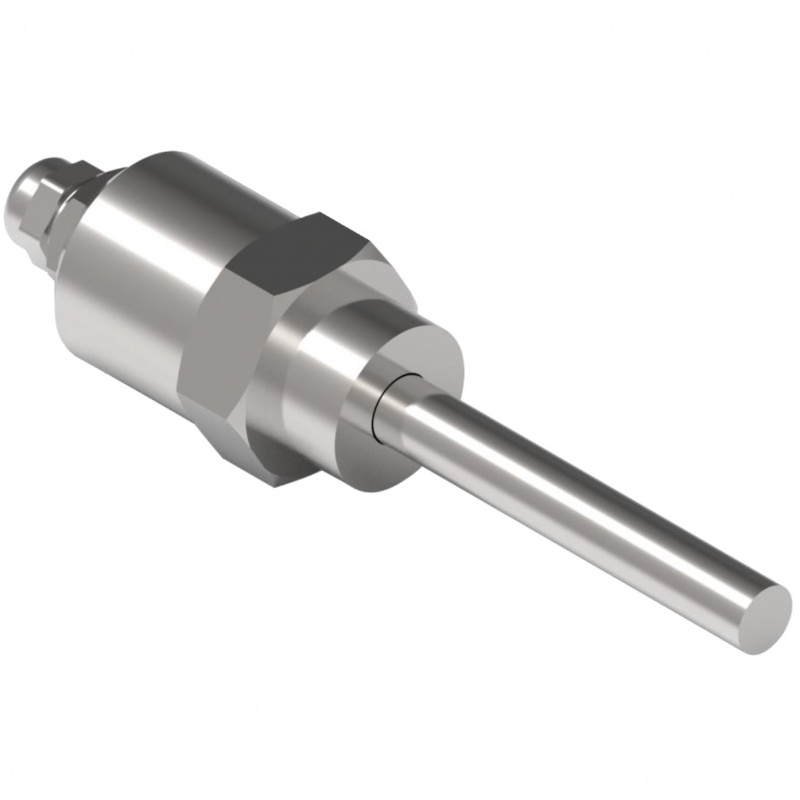

HTL series engine oil heater adopt cast stainless steel inner pipes and end closure with high corrosion resistance.
This product is suitable for various engines with (2~50)L engine oil volume.
PERFORMANCE AND CHARACTERISTICS
Stainless steel inner pipes and end closure with high corrosion resistance and solid features;
The inner pipes have long service life with the benefit of the low power of the unit areas.
All-in-one design, compact structure and small volume.
