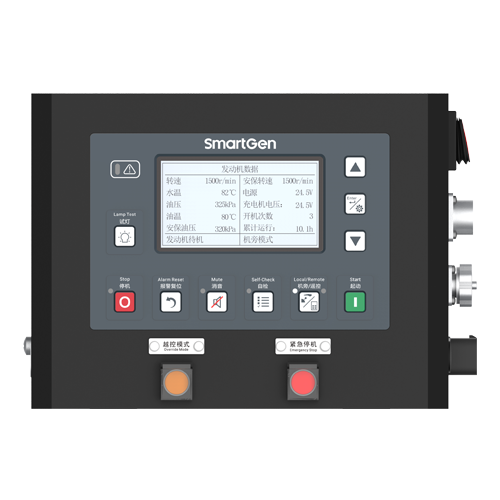

SmartGen MEM40 Engine Monitoring Controller

Technical Parameters:

Display    4.3-inch LCD
Operation Panel    Silicon Rubber
Language    Chinese & English
Digital Output    4
Inputs    7
Outputs    6
CANBUS    ●
IP Protection Class    IP44
DC Supply    DC(8-35)V
Case Dimensions(mm)    282*160.5*230
Operating Temp.    (-25~+70)℃


Product Overview:

MEM40 Engine Monitoring Controller, used for automatic control system of single engine, which can realize engine local/remote start/stop, data measurement, display, alarm protection and etc. With remote monitoring interface, it can connect remote monitoring module and realize engine remote start, stop and other functions.


PERFORMANCE AND CHARACTERISTICS

1. With 32-bit ARM micro-processor as the core, 4.3-inch LCD display with 240*128 resolution, optional Chinese/English;
2. Support J1939 communication interface, dozens of ECU engines monitoring can be realized;
3. With one RS485 interface supporting MODBUS RTU communication protocol, can realize remote data communication and “three remote” (remote control, remote measurement, remote communication) functions;
4. With local mode and remote mode. Start/stop can be achieved via panel key in local mode and achieved via remote monitoring module in remote mode;
5. With remote monitoring interface and can connect remote monitoring module, remote start/stop can be realized in remote mode;
6. With override mode, when this mode is active, other alarms without shutdown except for emergency stop and overspeed stop;
7. With RPU interface, RPU speed and oil pressure sensor can be connected via it. RPU oil pressure can select resistance/voltage/current type sensor;
8. With 4 sensors, 3 of which support resistance/voltage/current type;
9. With 2 self-check modes, when this mode is active, it can self-check setting alarm;
10. With alarm self-lock function, it will automatically lock after all alarms are triggered. When alarm disappears, only press reset key can remove alarms;
11. With alarm log and start/stop event log function, all warning alarm, shutdown alarm and start/stop alarm will be automatically recorded in event log, max recording can reach 200 pieces;
12. It can simultaneously display up to 10 SPN alarm contents, and support up to 10 SPN alarm shielding function;
13. MEM40-RM module can automatically synchronize MEM40 data and configuration information without setting any parameters, which is simple to use;
14. Parameters can be set via panel or connecting PC software through USB(Type-C) interface;
15. Digital regulation of all parameters - instead of analog regulation using conventional potentiometer, thus improving reliability and stability;
16. Metal shell design, compact structure, small size and simple wiring with easy operation.
