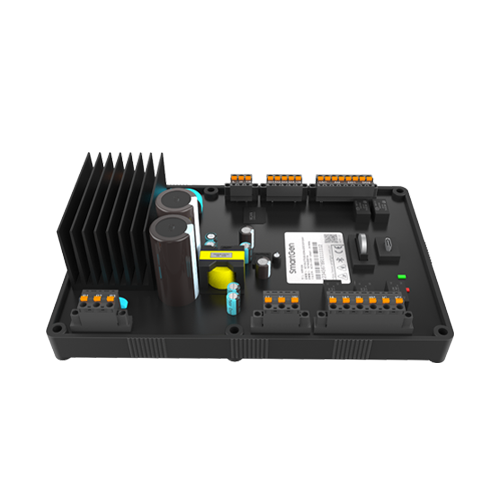

SmartGen HVR1000 Digital Voltage Regulator

Product Overview:

HVR1000 Digital Voltage Regulator is used to adjust the field current of brushless AC synchronous generator. It has four excitation regulation modes: automatic voltage regulation (AVR), field current regulation (FCR), reactive power regulation (VAR), power factor regulation (PF). It adopts CAN BUS interface and follows SAE J1939-75 protocol.

The product uses 32-bit micro-processor technique which can achieve precision measurement, protection threshold adjusting, real-time data monitoring and analysis, flexible and comprehensive fault protection, etc. All parameters can be read and configured through USB interface via PC or Bluetooth via mobile APP. It can be widely used in all types of brushless AC synchronous generators like PMG, AREP, SHUNT, etc. for its compact structure, simple connections and high reliability.


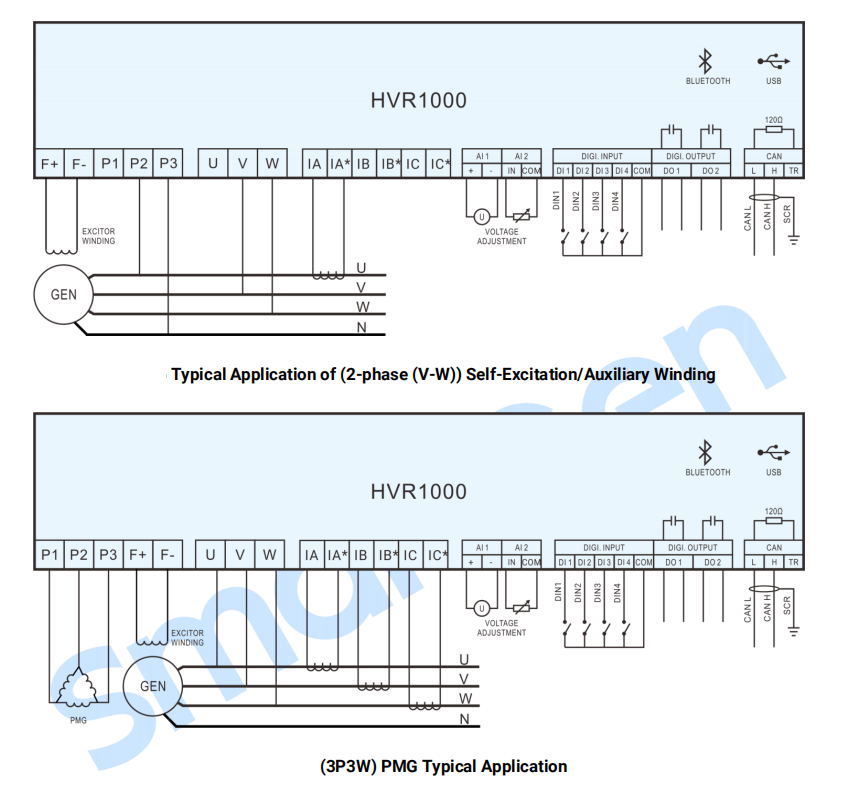

PERFORMANCE AND CHARACTERISTICS

1. Four excitation regulation modes: automatic voltage regulation (AVR), field current regulation (FCR), reactive power regulation (VAR), power factor regulation (PF);
2. Over-excitation limit, under-excitation limit, stator current limit, U/F limit function is fitted;
3. Soft start function is fitted for automatic voltage regulation (AVR) and field current regulation (FCR) modes;
4. PID algorithm for excitation regulation and parameters of four modes are independent;
5. Adjusting output target value via digital input, analog voltage input, analog resistance input, CAN communication;
6. The secondary rated current of current transformer can be set as 5A or 1A;
7. Under the voltage of 63V or 125V, it can continuously provide 7A current (70°C of room temperature) or 10A current (55°C of room temperature). The maximum short-time current lasts for 10s with 11A (70°C of room temperature) or 14A current (55°C of room temperature);
8. With load compensation function (LCF);
9. Droop function enables parallel generator to distribute reactive power automatically;
10. With transmission line drop function;
11. With 4-way programmable digital inputs, 2-way digital outputs, 1-way (-10-10)V analog voltage input, 1-way (0-600)Ω analog resistance input;
12. With CAN communication interface, following SAE J1939-75 protocol;
13. With Bluetooth communication interface that can be used to conduct parameter read and configuration and real-time data monitoring via mobile APP;
14. Adapt to 3P3W, 3P4W, 2P3W and 1P2W 50Hz/60Hz system;
15. Detect voltage harmonic THDu, current harmonic THDi, 1st-31st harmonic;
16. Collect and display excitation voltage, current, generator voltage, current, frequency, power and other parameters;
17. Real-time data curve analysis can be realized by PC software or mobile APP;
18. Protection and detection function: gen over/under voltage, over/under frequency, unbalanced voltage, large harmonic, gen unavailable, excitation over voltage, excitation overcurrent, rotating diode fault, etc.;
19. If enabled, alarm detection function of gen overcurrent, short circuit, over power, reverse power, low power factor, loss of excitation, unbalanced current, current waveform distortion high, etc. is fitted for current transformer;
20. All parameters can be configured through USB interface via PC or Bluetooth via mobile APP;
21. Suit for all types of brushless AC synchronous generators like PMG, AREP, SHUNT, etc.;
22. With running data record function. Voltage regulator can record running data once per second and 8192 pieces in total that can be saved as CSV file via PC;
23. Event log, real-time clock, can loop record 999 events;
24. Black box function enables to loop record 5 groups of fault alarm data, each group includes 60 pieces of detailed data from 50s before and 10s after fault alarm occurs;
25. Modular design, pluggable terminal, screw fixing mounting, compact structure and easy installation.
