SmartGen HRC200 long-distance wireless remote control

Technical Parameters
Case Dimensions(mm)    156.9*63*53
Operating Temp.        (-25~+70)℃

Product Overview:
HRC200 is a long-distance wireless remote control with LoRa wireless chip transmission and remote control distance of more than 200m. Used with engine controller, it can realize remote start, stop, load, unload, emergency stop and other functions. HRC200 adopts fully sealed structure, IP65 protection level, which can effectively prevent dust, water or others from entering the controller, making the controller operate stably and reliably, suitable for field, mining, urban construction and other application sites with complex working conditions.



PERFORMANCE AND CHARACTERISTICS

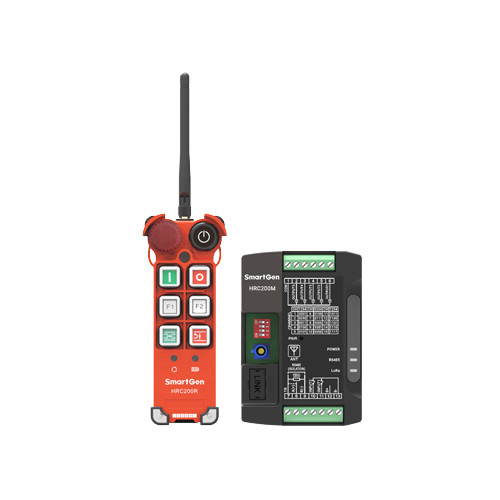

HRC200 industrial remote control is composed of remote control HRC200R and receiver HRC200M, applying LoRa wireless transmission chip.



Remote Control:

Can realize remote start, stop, load, unload, emergency stop and other functions, indicate engine running/alarm, remote control battery, command send/receive status;

Powered by 4 AA batteries;

With remote control distance of more than 200m, 15 optional communication channels;

Whole protection level can reach IP65.

Receiver:

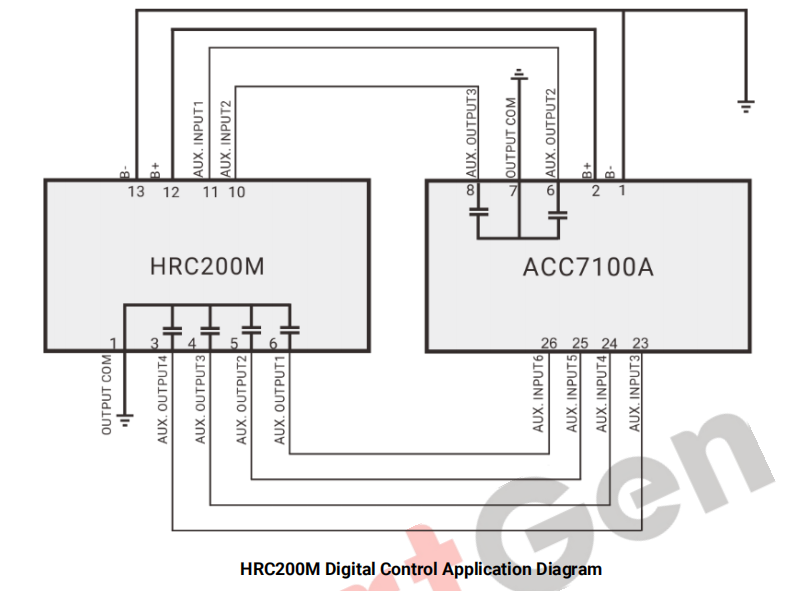

With RS485 interface, 5 output ports and 2 input ports, can control engine controller via RS485 interface or relay output port;

With power, RS485, LoRa communication status indicator; 15 optional communication channels;

Supply range DC (8~35)V;

Can set its parameters via PC;

Modular structure design, anti-flaming ABS plastic shell, light weight, compact structure and easy installation;

Standard Π type 35mm guide rail installation or screw installation is applied.
