SmartGen SG361 GSM/GPRS Modem

SG361 GSM/GPRS Module has SMS (Short Message Service) function and GPRS data transmission function.

1. Power supply: DC( 8~32)V；
2. Four-frequency GSM/GPRS module; Working frequency: GSM/GPRS
850/900/1800/1900MHz;
3. Control (GSM 07.07, 07.05) via AT command;
4. GPRS multi-slot class 10/8；
5. GPRS mobile station class B；
6. GPRS class 10：maximum 85.6 kbps (downstream rate);
7. SMS: text mode/PDU mode;
8. Antenna Interface：50Ω/SMA (Female);
9. SIM card：1.8/3V, Automatic detection; Drawer type card slot;
10. Power supply Interface: pluggable terminals;

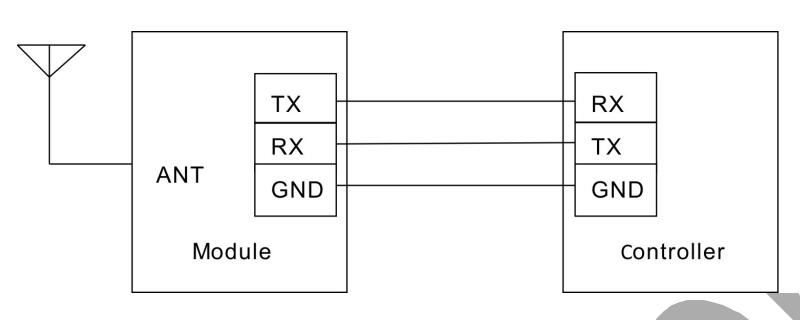

11. RS232 Communication interface: TX、RX、GND;
12. Working Temperature： (-30~+70) ºC;
13. Storage Temperature：(-30~+80) ºC;
14. Humidity：95% (No condensation);
15. Case Dimensions(mm)：89x66x26mm(L*W*H);
16. Weight: 151g.
