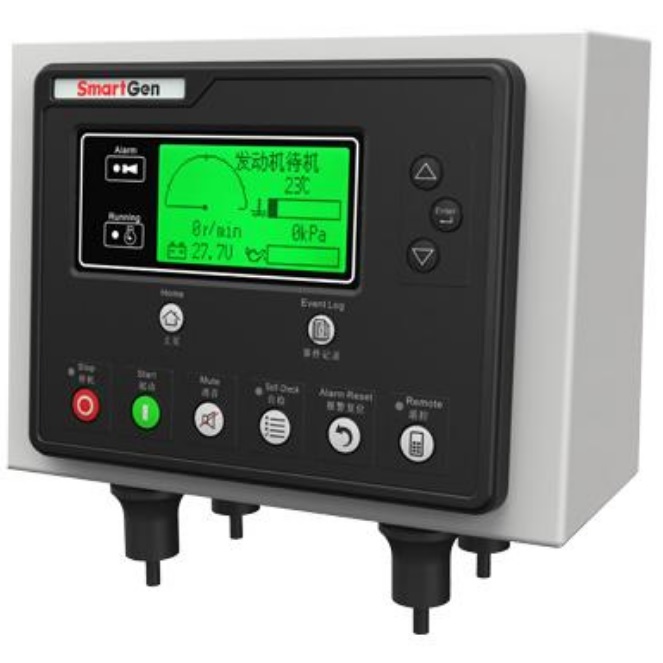

SmartGen MGCP100M Marine Engine Control Module

SmartGen MGCP100M Marine Engine Control Module


Designed for control system of medium marine diesel engine;

Controller can expand remote monitoring module(HMC6000RM) via CANBUS to achieve remote control of engine;

Controller can expand a 16-channel relay output module(DOUT16B) via CANBUS to realize alarms receiving and output controlling;

Controller can expand security module(RPU560A) via CANBUS to achieve multiple protection of engine;

Maximum 6 sensor inputs can be connected to controller, four of them are available for the following types: 0~1K resistance, 0~5V voltage, 4~20mA current;

Binary transfer module(BTM100) can be fitted with controller to achieve uninterrupted switching of dual power supply and failures warning.

Alarm threshold and protection delay of each sensor can be set by via controller to protect every measuring point accurately;

All data can be set on control panel at the site, conveniently and efficiently;

Operating voltage: (8-35)V;

Operating condition: Temperature: (-25~+70)°C  Humidity: (20~93)%;

With CCS certificate and IP44 protection class;

Case dimensions(L*W*H)(mm): 780*580*210;
