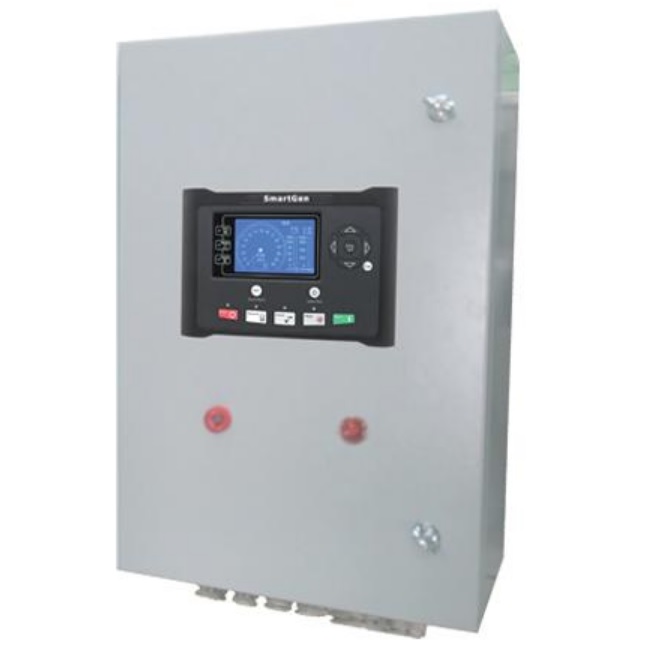

SmartGen MGCP100L Marine Engine Control Module

Designed for control system of large marine diesel engine;

4.3 inches TFT-LCD with backlight, multilingual interface (including English, Chinese);

Controller can expand 16 remote monitoring modules(HRM3300) at most via CANBUS to achieve remote monitoring of engine;

Controller can expand two 16-channel relay output modules(DOUT16B) at most via CANBUS to realize alarms receiving and output controlling;

Controller can expand two PT100 expansion modules(DOUT16-PT) at most via CANBUS to realize PT100 analog data acquisition;

Controller can expand two expansion modules(AIN16-C) at most via CANBUS to realize 4-20mA signal acquisition;

Controller can expand two analog misc modules(AIN16-M01) at most via CANBUS to realize temperature, pressure and speed acquisition as well as 4-20mA signal outputting;

Controller can expand security module(RPU560A) via CANBUS to achieve multiple protection of engine;

Controller can control and communicate with dozens of EFI engines with J1939 interface via CANBUS;

Real-time clock , alarms displaying and event log make it convenient for maintenance and troubleshooting;

All data can be set on control panel at the site, conveniently and efficiently;

Operating voltage: (8-35)V;

Operating condition: Temperature: (-25~+70)°C  Humidity: (20~93)%;

With CCS certificate and IP44 protection class;

Case dimensions(L*W*H)(mm): 900*640*225;
