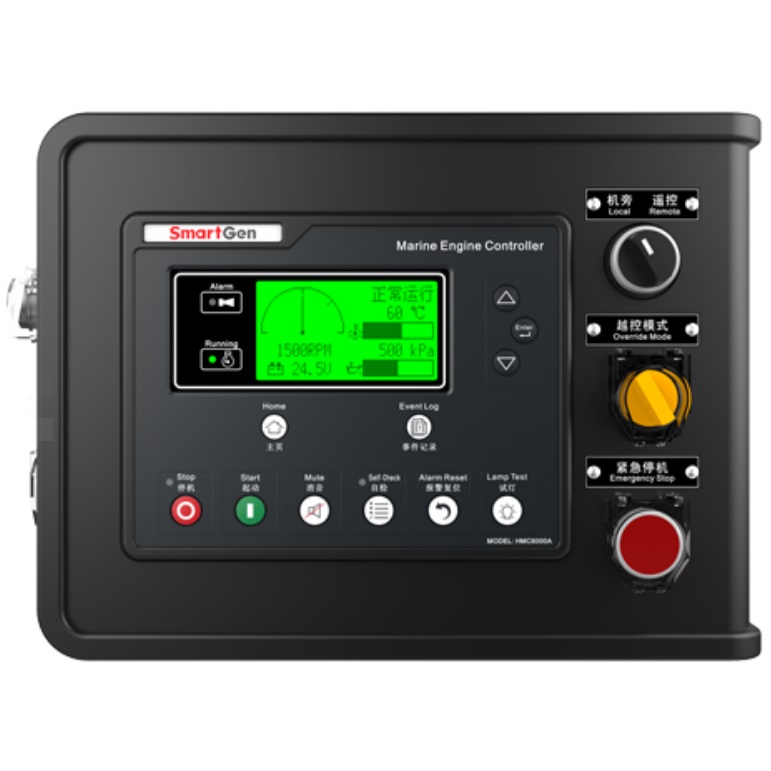

SmartGen MGCP100B-3 (C018) Diesel Engine Control box

MGCP100B diesel engine control box (hereinafter “control box”) is mainly composed of HMC6000A 2 diesel engine controller, with security interface. The control box integrates digitization, intelligentization and network technology, which can be used in the automatic control system of a single diesel engine. It can realize the functions of local start, stop, remote start, shutdown, data measurement, display, alarm protection and other functions of the diesel engine, and the operation is safe and reliable. The control box is equipped with a remote monitoring interface to realize the remote start-up and shutdown functions of the engine by receiving the remote start-up and automatic start-up instructions.

DISPLAY FUNCTION

The HMC6000A 2 controller (hereinafter “controller”) in control box can display data and operation status. It mainly includes main interface display and measured data display on controller LCD.

The main interface display includes a tachometer display range of 0 ~ 3000r/ min, a thermometer display range of 0~150℃, an oil pressure gauge display range of 0 ~ 1000 kpa, and power supply voltage display.

The measurement data display page includes start times, oil temperature, charger, power supply A, power supply B, and cumulative operation.

The alarm page displays various warning alarms and shutdown alarms detected by the controller.

The event log page records all downtime events and time.

The controller information includes software version, release date, time, input and output port status, etc.
