SmartGen LA16 Marine Engine Controller. Outdated Models.LED lamp expansion module is a LED display module which has 16 programmable lamp and there are 3 kinds of color (red, green, yellow) can be chosen. The data collected by LA16 are transmitted to the HMC9000 controller for processing via CANBUS port. TECHNICAL PARAMETERS Working Voltage：DC18.0V~35.0V continuous power supply Power Consumption：<5W Case Dimension：240mm x 172mm x 57mm Cutout：214mm x 160mm Working Conditions：Temp.：(-25~+70)°C　　Humidity：(20~93)%RH Storage Conditions：Temp.：(-25~+70)°C Weight：0.60kg

* All prices on this website are retail in USD on EXW incoterms

(0)

Description
Comments

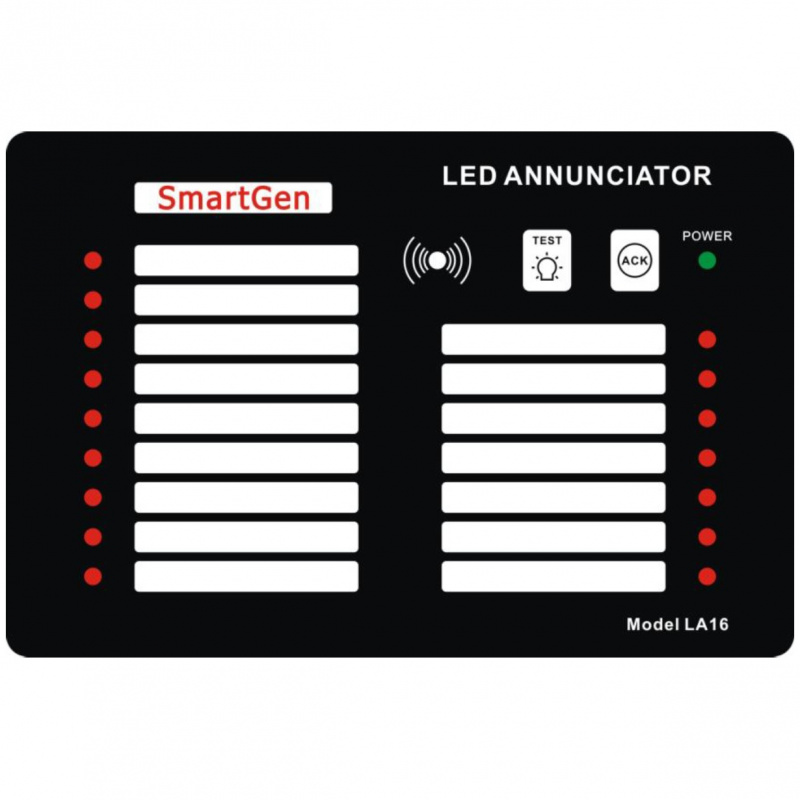

LED lamp expansion module is a LED display module which has 16 programmable lamp and there are 3 kinds of color (red, green, yellow) can be chosen. The data collected by LA16 are transmitted to the HMC9000 controller for processing via CANBUS port.

TECHNICAL PARAMETERS

Working Voltage：DC18.0V~35.0V continuous power supply
Power Consumption：<5W
Case Dimension：240mm x 172mm x 57mm
Cutout：214mm x 160mm
Working Conditions：Temp.：(-25~+70)°C　　Humidity：(20~93)%RH
Storage Conditions：Temp.：(-25~+70)°C
Weight：0.60kg
