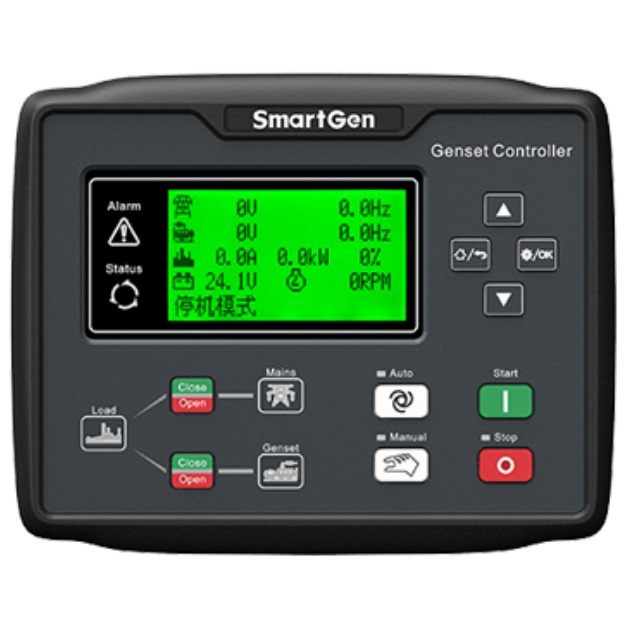

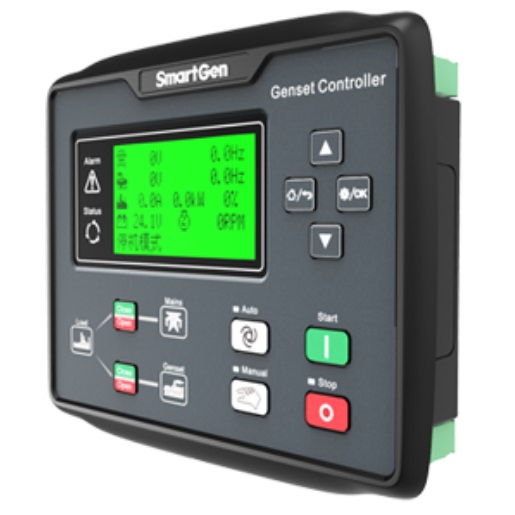

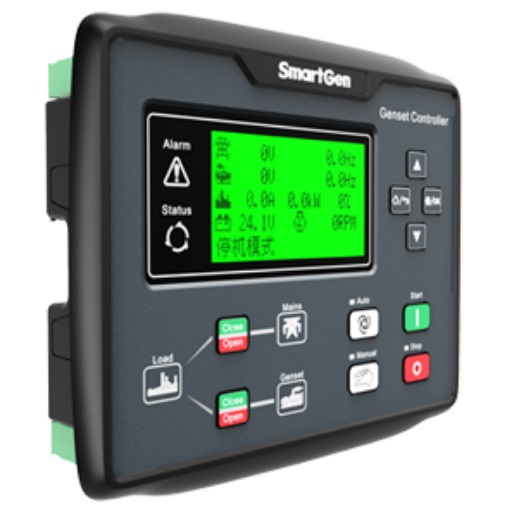

HGM6100N-RM is remote monitoring module designed for HGM6100N series genset controllers. With RS485 port it can realize functions of remote start/stop, data measuring, and alarm display etc. it is applicable for single remote monitoring system. It can be in the monitoring mode, realizing only monitoring, not controlling, or it can be changed over to remote control mode by local module transfer, monitored and controlled remotely.
HGM6100N-RM remote monitoring module uses micro-processing technique and 132 x64 LCD display. 8 kinds of languages are optional (Simplified Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French) and can be changed freely. It can be widely used in all types of automatic control system with compact structure, simple connections and high reliability.
PERFORMANCE AND CHARACTERISTICS
HGM6100N-RM has two types:
HGM6110N-RM: remote monitoring module for HGM6110N/6110CAN series controllers;
HGM6120N-RM: remote monitoring module for HGM6120N/6120CAN series controllers;
Main characteristics are as below:
132x64 LCD display with backlight, 8 selectable language interface (Simplified Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French), push-button operation;
Acrylic hard screen, better wear proof and scratch resistance property;
Silica-gel panel and keys with strong adaptability in higher and lower temperature environments;

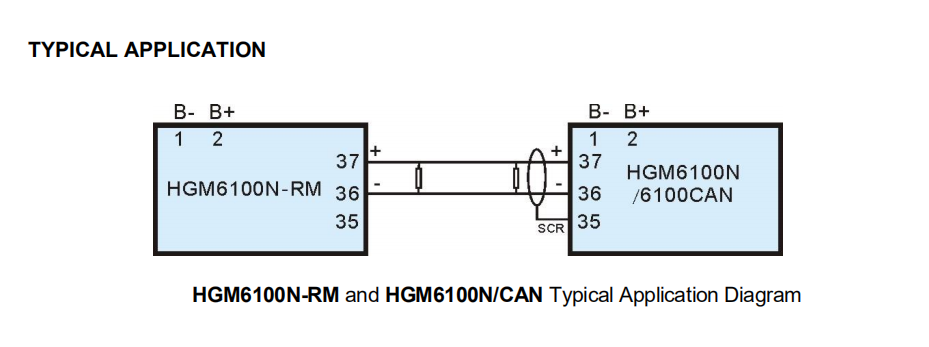

RS485 communication port, which can achieve “three remote”(remote control, remote measurement and remote communication ) functions via MODBUS protocol;
Parameter setting function: allows users to modify the settings and at the same time they shall be stored in internal FLASH memory, so that the parameters won't be lost in case of power outage. All parameters can be set from the front panel, but also can be adjusted by RS485 interface via PC. All parameters of HGM6100N-RM must be configured as same as that of local module of HGM6100N controller;
Wide power supply range: (8~35)V DC, accommodating to different starting battery volts;
All parameters use digital modulation, getting rid of analog modulation of conventional potentiometer, improving wholesome reliability and stability;
Maintenance function: maintenance type can be selected as date or running time; maintenance due actions can be set (warning or shutdown);
Event Log, Real Time Clock, Scheduled Run/Not Run (start once monthly/weekly/daily; on/off load can be set) functions;
Rubber gasket between the shell and controller screen with waterproof protection class IP55;
Controller is fixed by fixing metal clips;

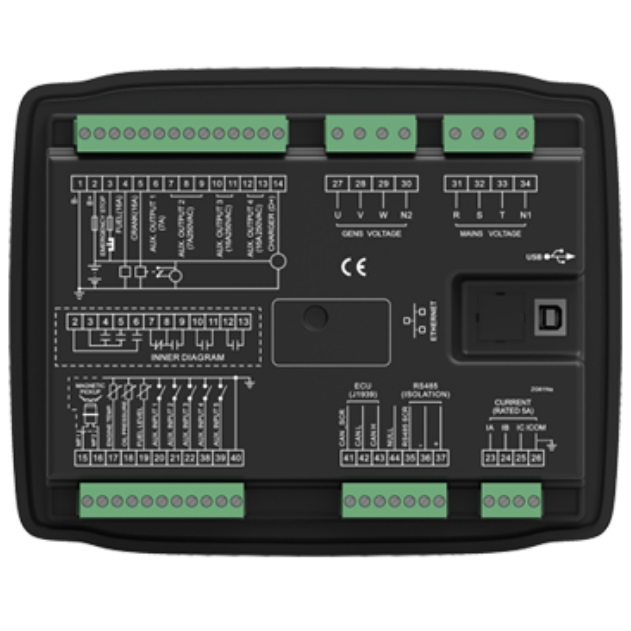

Modular design, flame-retardant ABS shell, pluggable wiring terminals, embedded mounting, compact structure and easy installation.
