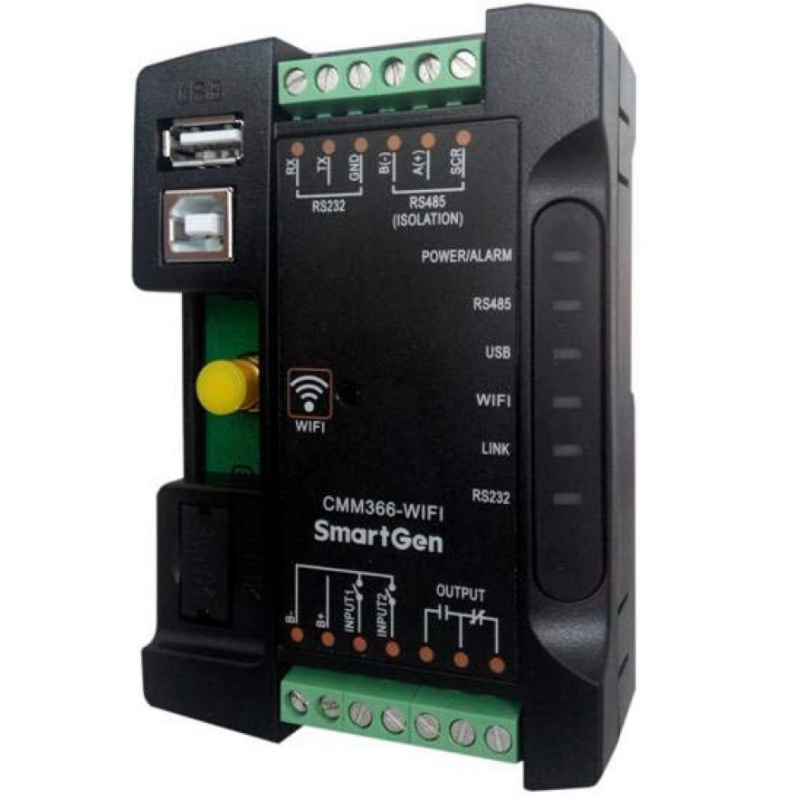

SmartGen CMM366-WIFI Internet access adaptor

* All prices on this website are retail in USD on EXW incoterms

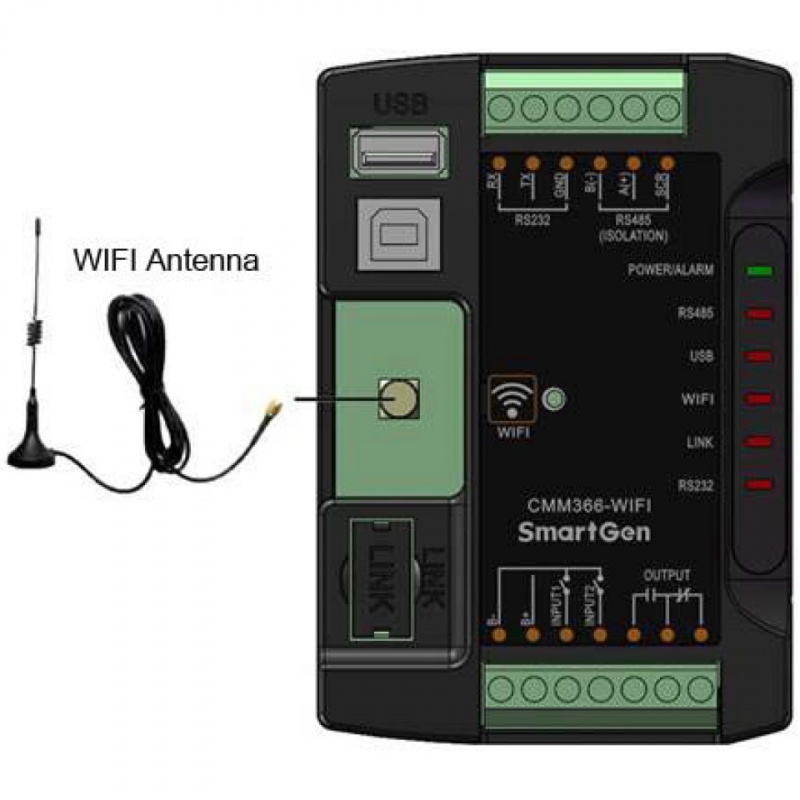

CMM366-WIFI Cloud Monitoring Communication Module is WIFI wireless network communication protocol switch module which can achieve genset (with SCI) connect to Internet. The module obtains genset data via RS485 port, USB port, LINK port or RS232 port of genset controller modules of international first-class brands including SmartGen, DeepSea, ComAp, etc. Then the module transmits the data to corresponding cloud server via WIFI wireless network for achieving user’s real-time monitoring to running status and searching of running records via APP (IOS or Android) and PC terminal devices.

CMM366-WIFI module has already integrated protocols of mainstream genset control module. It not only can monitor genset but also can receive some digital alarm input/output signals to achieve monitoring of generator room entrance guard, guard against theft and fire facilities.

1. Connect to cloud server via wireless WIFI, one to one monitoring;

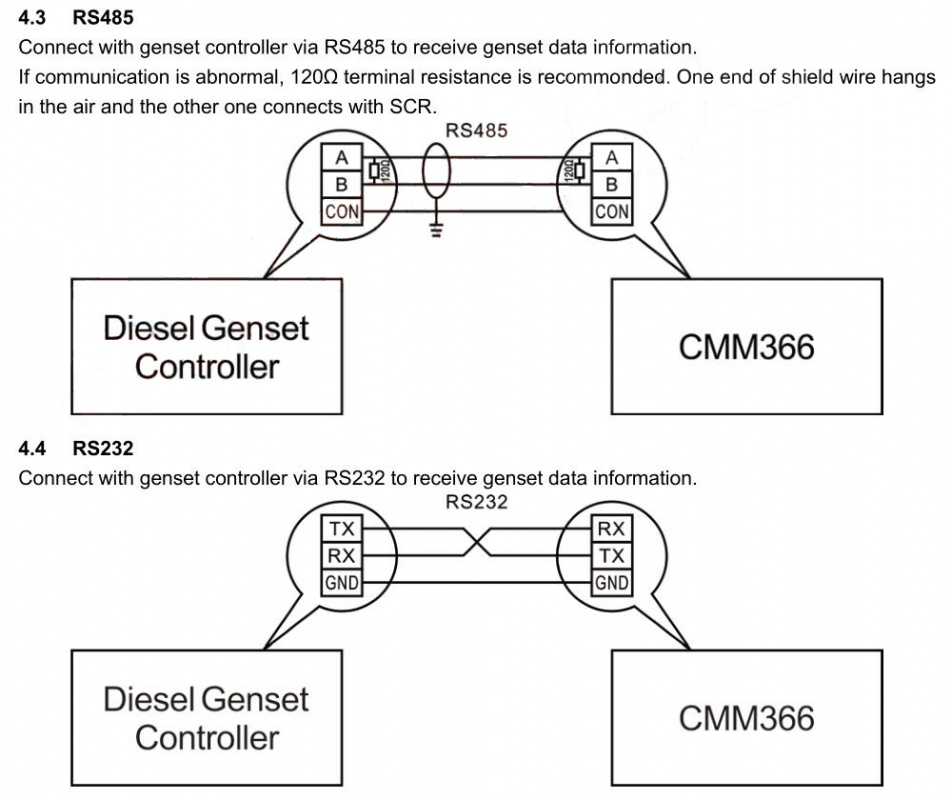

2. Multiple ports for communication with genset control module: RS485, RS232, LINK and USB (Host); can monitor great majority genset control modules of international first-class brands;
3. Widely power supply: DC (8~35)V, can direct use genset build-in battery;
4. With ARM-based 32-bit SCM, high integration of hardware and strong programming ability;
5. Include with location information to realize genset location;
6. Take JSON network data communication protocol, upload real-time data variation and take compression algorithm to vastly reduce network flow at the same time;
7. Users can set up history data upload rest to upload monitoring data to server (history data can be analyzed);
8. When alarm occurs it can upload data to server immediately;
9. 2 auxiliary digital input ports which can receive external alarm signal;
10. 1 auxiliary relay output port which can output various of alarm signal;
11. Perpetual calendar and clock function;
12. Power and multiple communication status indicators on front panel that working status is clear at a glance;
13. Lamp test function;
14. Parameter adjust function: users can adjust parameters via USB port;
15. Take standard π-type 35mm guide-rail installation or screw-fixed installation to install controller into the genset control box;
16. Modular design, self extinguishing ABS plastic shell, light weight, compact structure with easy installation.
