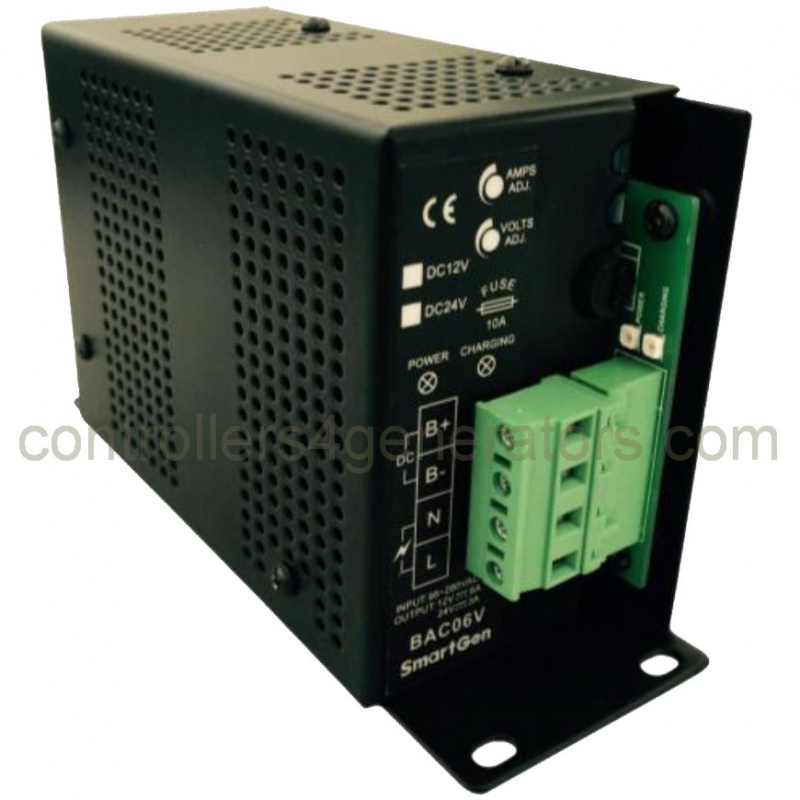

BAC06 series switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
PERFORMANCE AND CHARACTERISTICS:
1. Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
2. Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
3. With short circuit and reverse connection protection;
4. Charging voltage and current can be adjusted via potentiometer on the spot;
5. LED display: Power indication and charging indication;
6. Horizontal type for installation of BAV06A, easy to install;
7. Vertical type for installation of BAC06V, furthest decreased installation dimension.
