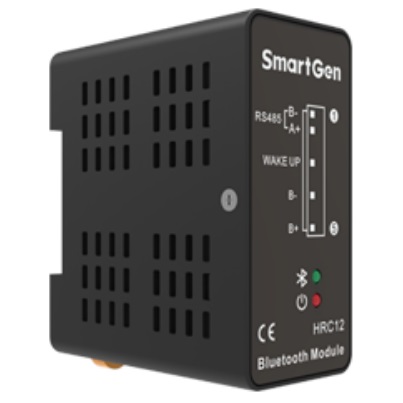

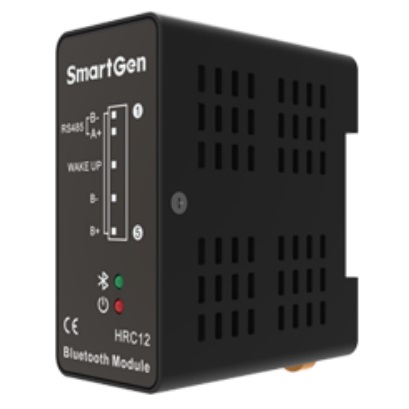

SmartGen HRC12 Bluetooth Module

Technical Parameters:
Operation Voltage DC(8-35)V
Power Consumption Standby: 24mW Running: 60mW
Case Dimensions(mm) 80*65*35.5(mm)
Operating Temp. (-25~+70)℃
Weight 0.07kg

Product Overview:

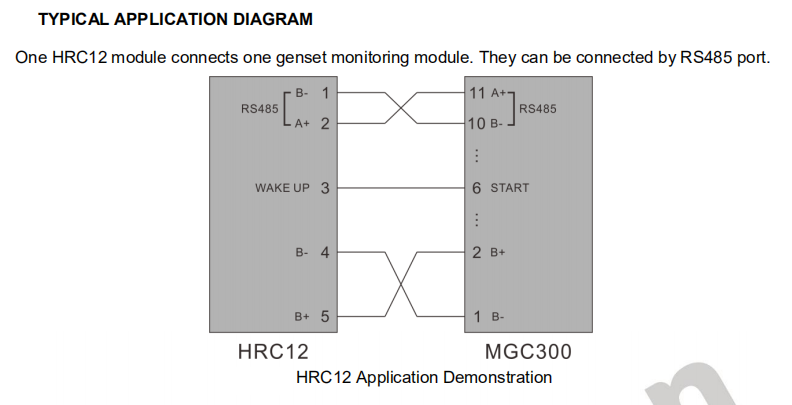

HRC12 Bluetooth Module is a transition module of data communication between mobile and genset. It is connected with genset controller via RS485. By mobile APP genset information can be obtained and genset start/stop can be controlled.

PERFORMANCE AND CHARACTERISTICS

Mobile bluetooth can monitor genset status from far away, and communication distance is longer than 50m;

From mobile genset controller power can be controlled or genset controller can be awaken up;

Wide supply range DC (8~35)V, which can directly use the start battery self-contained in the engine;

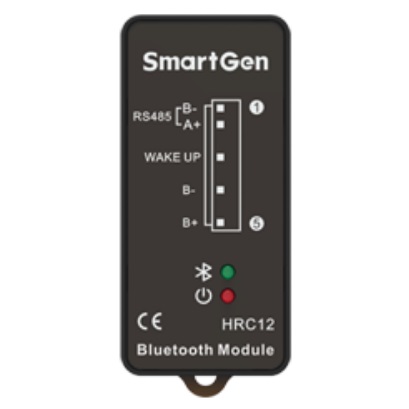

Module panel has power and communication status indicator, so module working status is very clear;

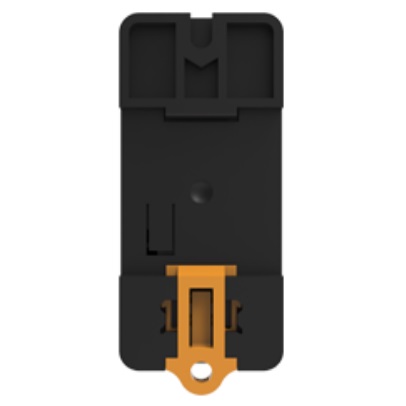

Standard 35mm rail installation and M4 fixing installation is applied;

Modular structure design, flame retardant ABS enclosure, light weight, compact structure with easy installation.
