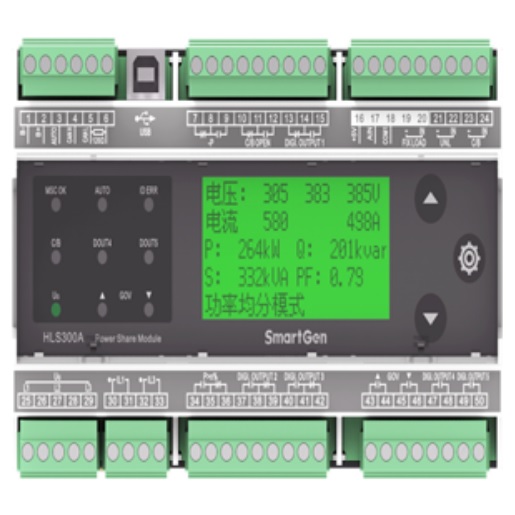

SmartGen HLS300A Power Share Module

Technical Parameters:
Display LCD(132*64)
Language Chinese & English
Relay Output 10
Overall Consumption 2W(Standby mode≤1W)
Alternator Frequency 50Hz/60Hz
DC Supply DC(8-35)V
Case Dimensions(mm) 161.6*92.94*60.7(mm)
Operating Temp. (-25~+70)℃
Weight 0.49kg

Product Overview:
HLS300A Power Share Module is a piece of upgrade product of HLS300. It is a special design for genset power share. On the basis of pre-set parameters it can automatically complete power share in the process of genset running. Controller is upgraded to LCD graphic display, control button and reactive power share function are added.

The main function of HLS300A module is to share active power and reactive power proportionally and evenly to each operating genset based on genset capacitance. The module is easy to operate, convenient to install and can be widely used for ship genset and land genset.

PERFORMANCE AND CHARACTERISTICS

Suitable for 3-phase 3-wire, single phase 2-wire power systems with frequency 50/60Hz;

132x64 LCD display with backlight display, tuch-button operations allowing to transfer display or set module running parameters;

Module running parameters can be set by PC test software; module is connected with PC by USB port in using;

10 relay outputs, 2 of which are used for GOV frequency raising and drop to control output, 5 are used for configurable output, 2 are used for -P, P>n% indication outputs, and 1 is used for C/B OPEN output control;

1 FIXLOAD mode, 1 UNL unloading, 1 close and 1 AUTO digital input;

When genset is not working, press UP key longer for 3s in information display interface and it enters test mode, which can test whether LCD display, relay output and panel indicators are normal or not;

Wide power supply range DC(8~35)V;

Controller applies 35mm guide rail mounting;

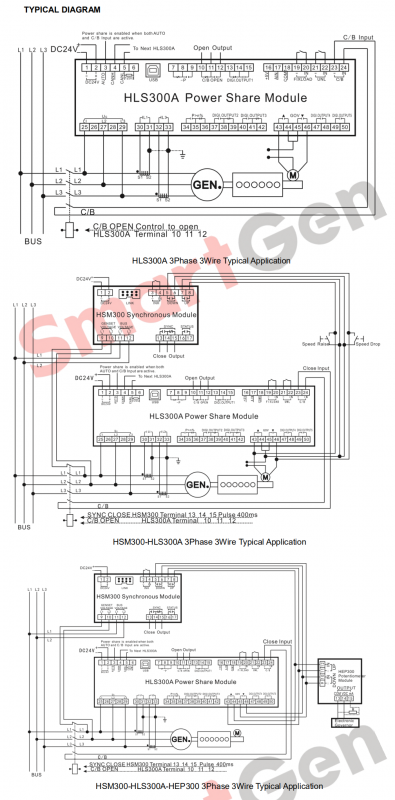

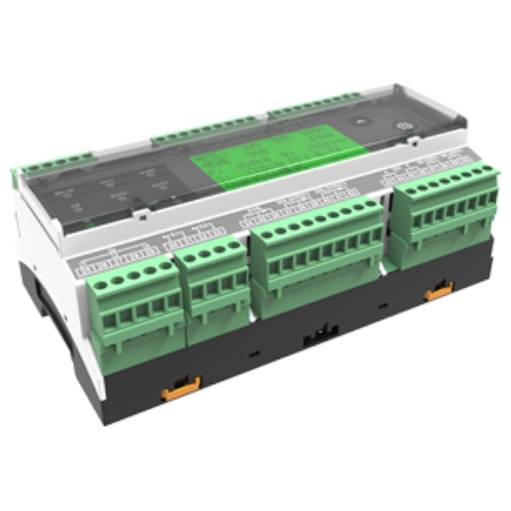

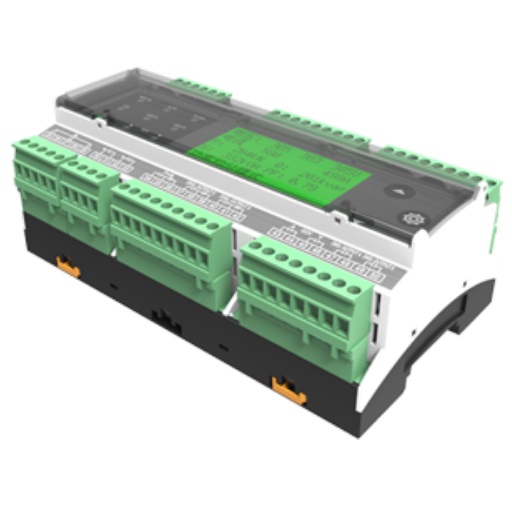

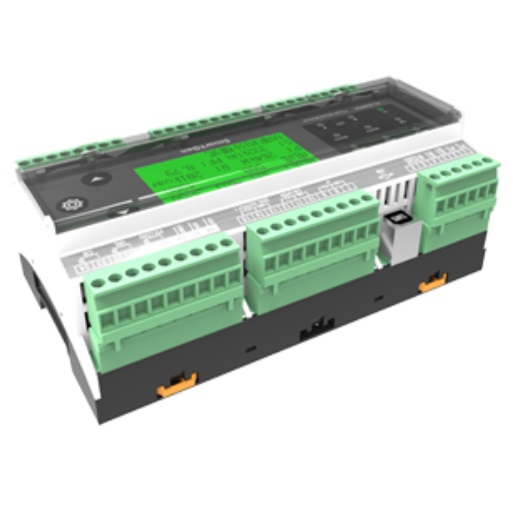

Modular structure design, pluggable connection terminal, compact structure with easy installation.
