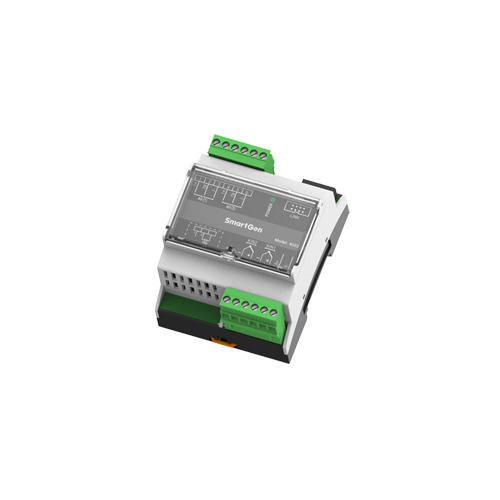

SmartGen KIO22 K-type thermocouple to 4-20mA module

Technical Parameters:
DC Supply    DC(8～35)V
Case Dimensions(mm)    71.6*93.0*60.7
Power Consumption    (-40~+70)℃
Weight        0.115kg

Product Overview:
KIO22 is a K-type thermocouple to 4-20mA module, which is used to convert 2 analog inputs of K-type thermocouple into 2 current outputs of 4-20mA. Users can use MODBUS protocol to realize parameter configuration and data collection via LINK interface.



PERFORMANCE AND CHARACTERISTICS

With 32-bit ARM SCM, high hardware integration, improved reliability;

DC(8~35)V working voltage;

35mm guide rail installation method;

Modular design and pluggable connection terminals; compact structure with easy mounting.
