SmartGen HMU8N-EMS Hybrid Energy Control System

Product Overview:

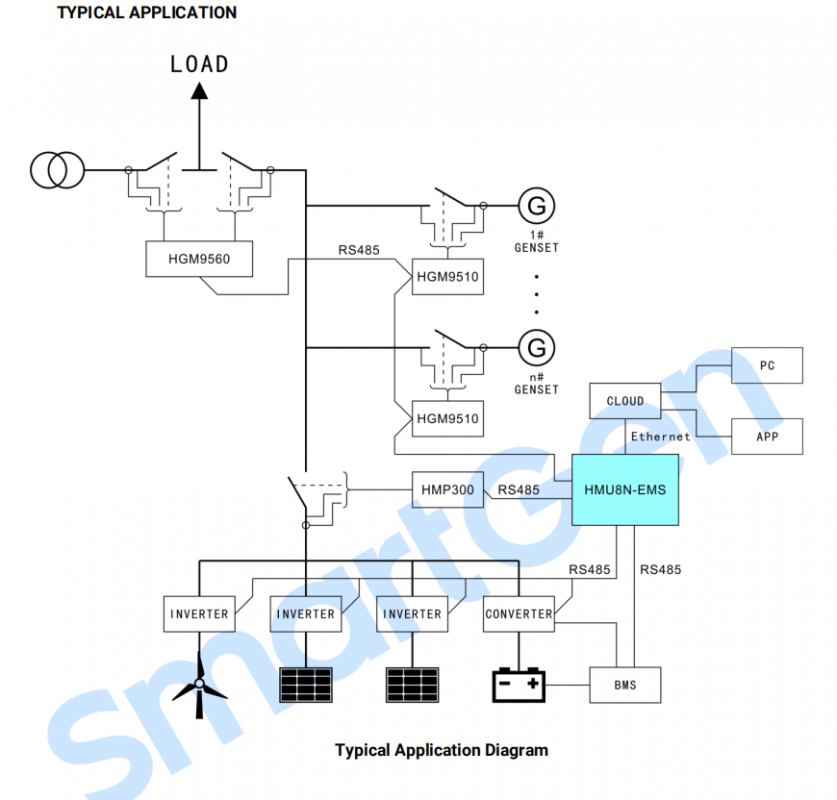

HMU8N-EMS Hybrid Energy Control System is used for hybrid energy system consists of solar energy, wind energy, energy storage battery, hydrogen fuel cell, mains supply and diesel genset. It can read and display the data and status of various energies, control the power distribution, customize the control policy and support multiple control modes. The communication protocol is customized and the touch screen display LCD is configurable by PC, the operation policy or control logic can be written by using the built-in PLC. It is suitable for hybrid energy systems with flexible configuration and easy operation.


PERFORMANCE AND CHARACTERISTICS

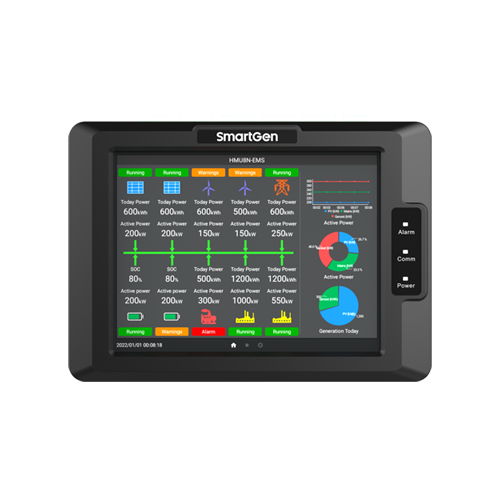

1. 8-inch capacitive touch LCD with 800*600 resolution, optional Chinese and English operation interface;
2. With 4-way RS485 communication port, 1-way CAN port, 1-way Ethernet port;
3. The logic programming is available by the built-in PLC, operation mode and scheduling method can be changed;
4. Customized communication protocols for PV inverter, energy storage converter and BMS;
5. Customized communication protocols when connecting to power expansion module, genset controller and low voltage distribution controller;
6. The previous data monitoring can be realized via Ethernet port;
7. Real-time display parameters and alarm information;
8. Real-time clock display, operation history and alarm records functions, which can be exported;
9. With USB device port and host port;
10. With multi-level brightness;
11. The controller is fixed with metal clips;
12. Modular design, pluggable wiring terminals, built-in mounting, compact structure with easy installation.
