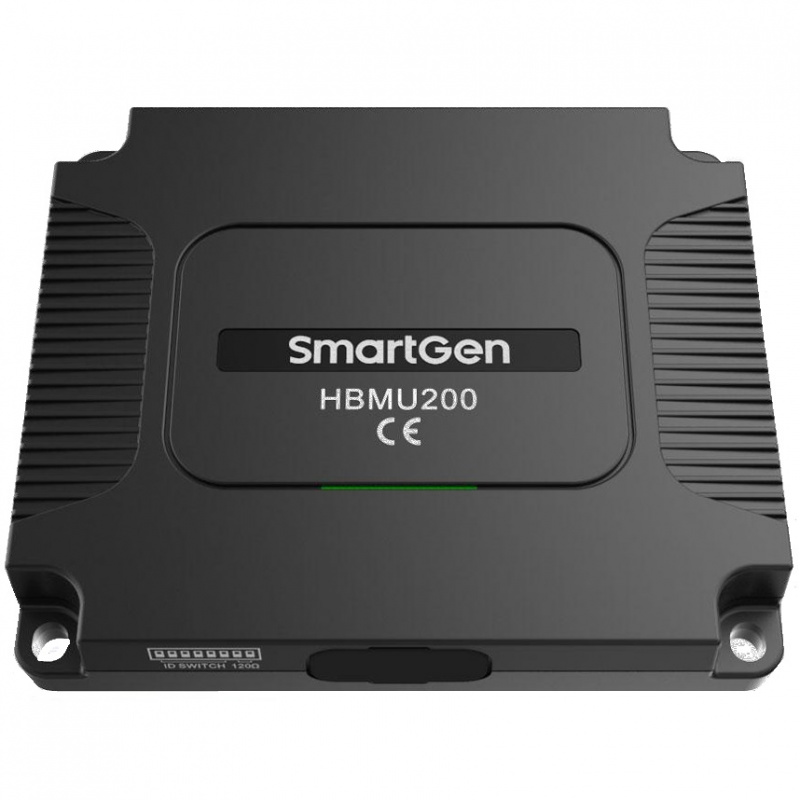

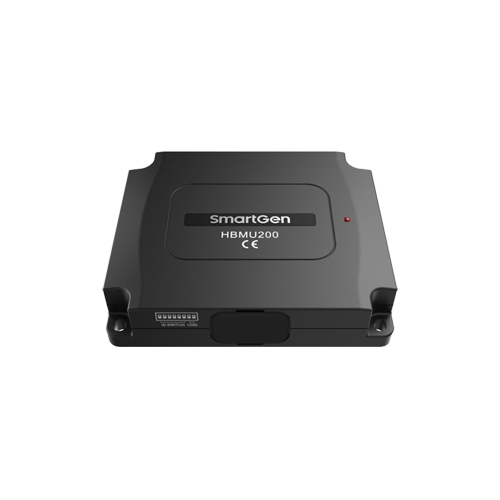

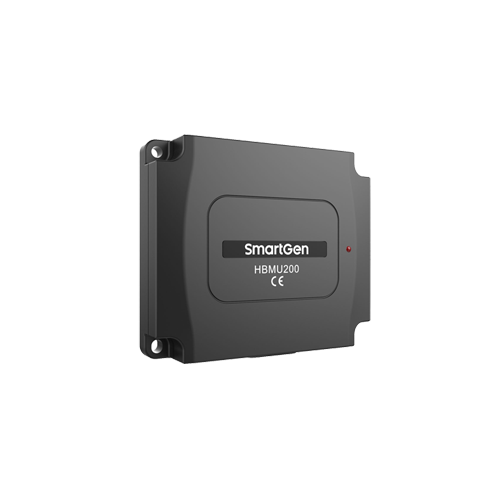

SmartGen HBMU200 Battery Management Module

Technical Parameters:
DC Supply  DC(8-35)V
Case Dimensions(mm)  125*106*21
Panel Cutout(mm)  112.5*93.5
Operating Temp.  (-40~+80)℃
Weight(kg)  0.16


Product Overview:

HBMU200 Battery Management Module is a vital part of BMS. When charging and discharging, the BMS will monitor the working status of the battery (voltage, temperature and etc.), perform the real-time detection and give feedback to BCU, so as to alarm for the under/over voltage, under/over temperature.

This module is suitable for independent energy storage, wind-solar energy storage and hybrid energy systems, as well as for the test platform of lithium iron phosphate battery pack, ternary lithium battery pack, lithium manganate battery pack and lithium titanate battery pack.

PERFORMANCE AND CHARACTERISTICS

1. With status indicator;

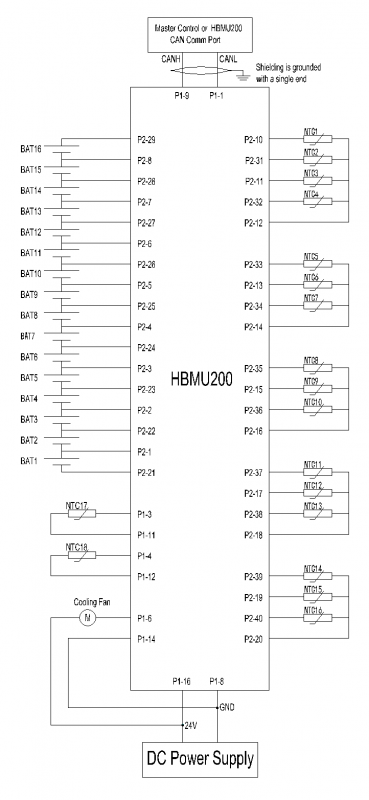

2. Adopt the mature AFE chip in the industry to realize the voltage detection of single battery, supporting the voltage detection of 5~16 clusters of single battery;

3. With single battery disconnect detection;

4. Up to 18 channels for temperature detection, the temperature sensor type is NTC 10K;

5. One relay output to control the fan and other devices;

6. One non-isolated CAN interface to communicate with BCU module. The firmware can also be upgraded through CAN interface;

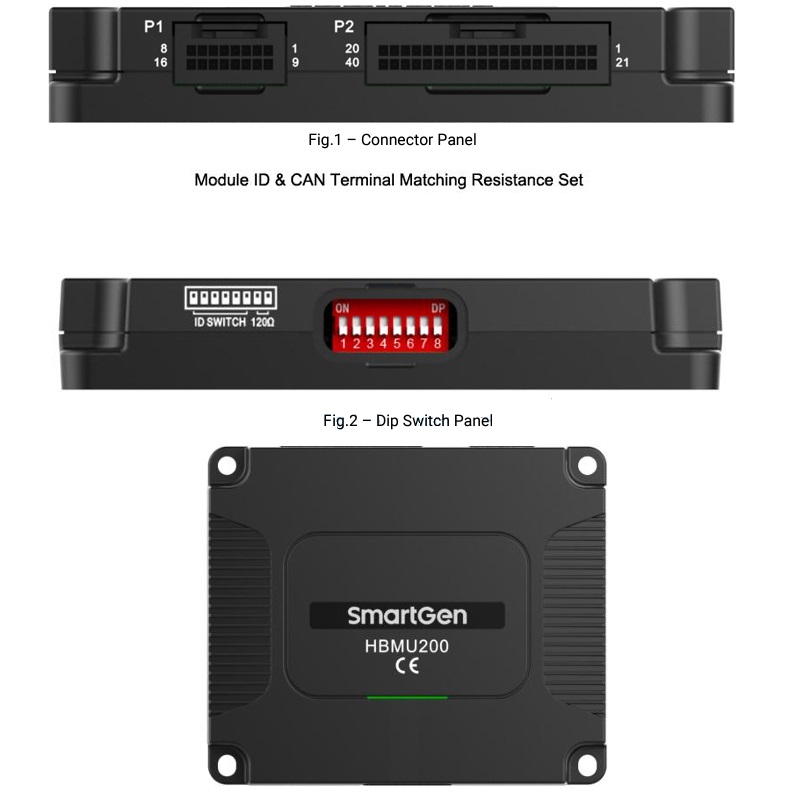

7. The 120Ω terminal matching resistor of CANBUS is accessed through a dip switch;

8. The CAN ID of the module can be selected by dip switch and the setting range is 1~63;

9. With passive balance function, the max. balance current is 100mA;

10. With wire harness protection function. When HBMU200 is used externally, the shell equipped with wire harness protection cover can be selected to avoid damaging to the wire harness;

11. Modular design, screw installation, flame retardant ABC/PC shell, compact structure and easy installation.
