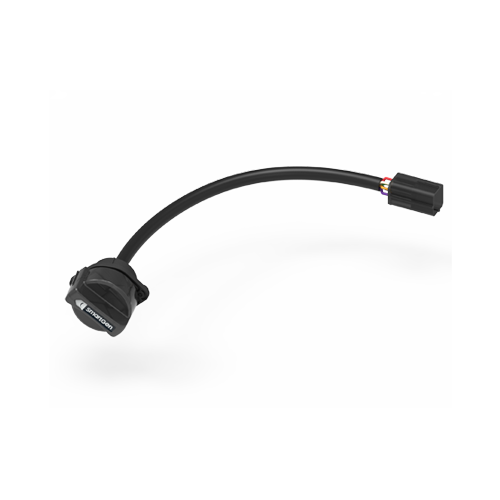

SmartGen HTE05 Hand Throttle Module SmartGen HTE05 Hand Throttle Module

Product Overview:

HTE05 Hand Throttle Module applies Hall non-contact sensor with high-precision to adjust engine speed. The dual redundant outputs can simulate the potentiometer to output the signal, the voltage range can be customized programming and suitable for different engines. It can be widely used in various of machinery equipment of engineering for its compact structure, ergonomic design and easy operation.


Performance Parameters

Working Voltage   DC5V
Voltage Range   AOS1: 0.75V-3.84V (±0.1)V   AOS2: 0.375V-1.92V (±0.1)V
Sensor Type   Hall Sensor
Operation Angle   108°±2°
Weight   79.5g
Vibration   5Hz~8Hz: ±17mm;   8Hz~500Hz: a ±4g;   IEC 60068-2-6
Shock   50g, 11ms, half-sine, three consecutive shocks are applied in each of the three mutually perpendicular directions, i.e. a total of 18 times.   IEC 60068-2-27
Bump Test   25g, 16ms, half-sine   IEC 60255-21-2
Case Dimension   50mm x 59mm x 50mm (wire length is excluded)   Wire Length: 230mm
Working Temp.   (-40~+85)˚C
Working Humidity   (20~95)%RH
Storage Temp.   (-40~+85)˚C
Protection Level   Knob Shell: IP42;  Product: IP65
