SmartGen ATS560NBC ATSE Control Panel

Product Overview:

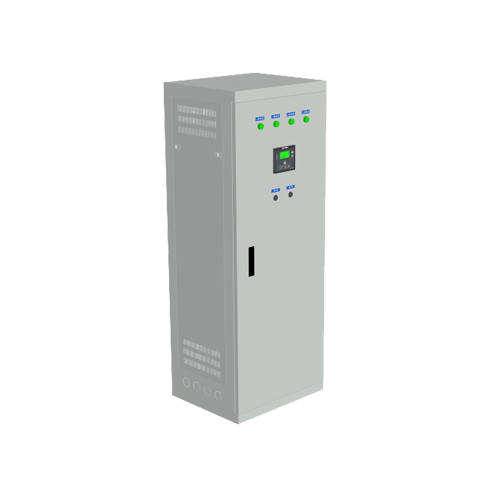

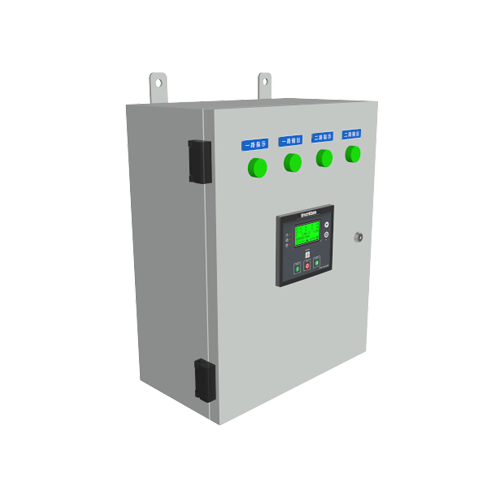

ATS560NBC Series Dual Power Automatic Transfer Control Cabinet (i.e. ATS Control Cabinet) is mainly composed of cabinet, HAT560NBC ATS controller, SGQ ATS and fuse.

ATSC560NBC Series ATS Control Cabinet is used for manual/auto transfer of two power supplies, which can accurately detect the 3-phase voltage of the two power supplies, make accurate judgement on the abnormal voltage (over/under voltage, loss of phase, over/under frequency) and control the automatic switch of the two power supplies, realizing the uninterrupted power supply for loads by combination with diesel genset.

PERFORMANCE AND CHARACTERISTICS

•HAT560NBC ATS controller is an intelligent dual power transfer module with configurable function, automatic measurement, LCD display and digital communication. It integrates digitalization, intelligence and networking together, automating measurement and control process, reducing artificial operation mistakes and it is an ideal product for dual power transfer.

•HAT560NBC ATS controller is made by the microprocessor in the core, which can precisely measure 2-channel 3 phase/single phase voltage, make accurate judgment for any abnormal voltage (over/under volt, loss of phase, over/under frequency) and output volt free discrete control signal. Real-time clock display, event log function can record 50 items circularly. After full consideration of its applications on various ATS (load automatic transfer system), it can be directly used for specialized ATS, contactor ATS, air break ATS etc. It has compact structure, advanced circuits, simple wiring and high reliability, which can be widely used in electrical devices, automatic control and testing system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc.

•SGQ Automatic Transfer Switch (ATS) is used under conditions of AC660V 50/60Hz or DC250V. It is two-stage PC class type with electromagnetism drive structure, which can make fast load transfer (transfer time ≤80ms) of two power circuits. It can be widely used for national one-class load, for example: high buildings, post, telecommunications, coal mines, ships, industrial assembly lines, health care, military facilities etc. The two power circuits can be grid, auto start genset, storage battery etc. SGQ Automatic Transfer Switch (ATS) adopts electromagnetic coil drive, electrical and mechanical interlocking structure, main loop structure of two static contacts and one dynamic contact. Dynamic contact applies V type, which ensures two power circuits shall not be short circuit; it applies double coils; coils are only energized at the time of transfer and this extends the usage life of switch to a great degree. Coil control power can be supplied by master/slave AC or DC power and it is not needed to add another control power. Switch itself has mechanical or electrical close indication, and at the same time it provides volts free auxiliary contact.
