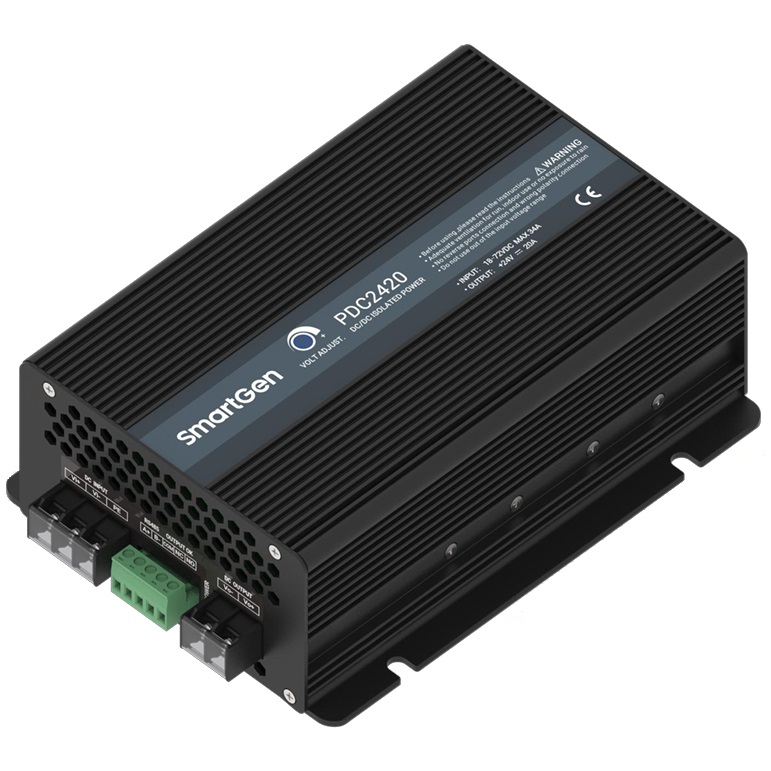

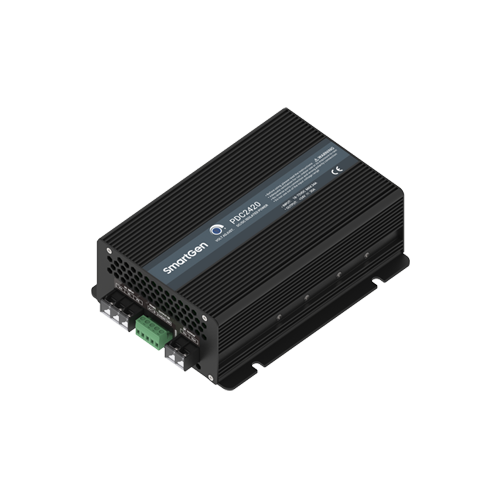

SmartGen PDC2420 Battery Charger

Technical Parameters:
Rated Input Voltage  DC 24V
Max. Input Current  20A
Operating Temp.  (-30~+60)℃
Storage Temp.  (-40~+85)℃
Net Weight(kg)  1.51
Case Dimensions(mm)  218.9*155*69

Product Overview:
PDC2420 is an intelligent DC/DC isolated power supply with multiple protection, which is suitable for equipment requiring DC24V isolated power supply. The max rated output current is 20A.


PERFORMANCE AND CHARACTERISTICS

1. It adopts switch power type structure with wide DC range, small size, light weight and high efficiency;

2. Isolated design for input and output, isolated voltage is AC3kV;

3. With standard RS485 serial communication port applying MODBUS communication protocol;

4. With CPU intelligent unit, internal parameters can be adjusted and monitored via RS485 port;

5. LED power indicator will illuminate for power-on, flash in fault protection;

6. Horizontal screw installation is adopted, simple and easy to install it.
