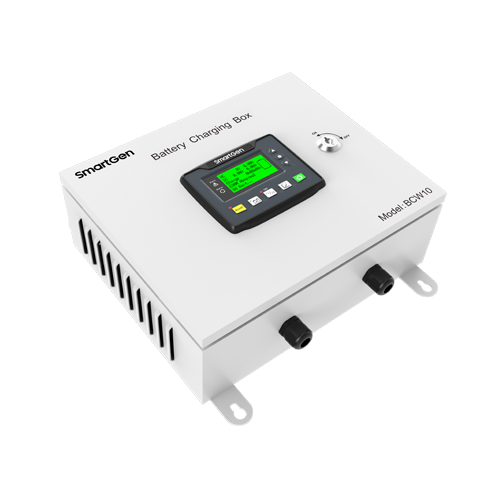

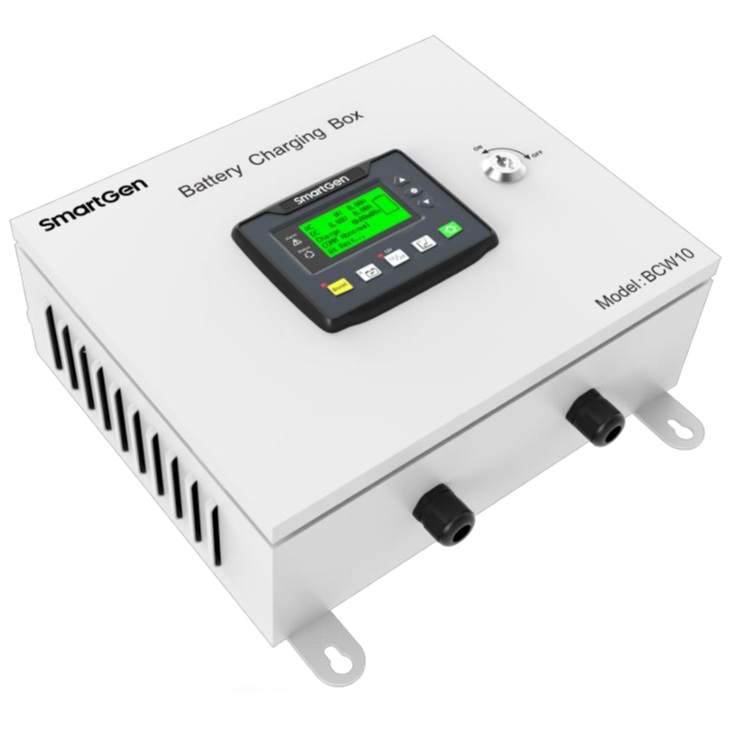

SmartGen BCW10 Battery Charging Box

Technical Parameters:
Battery Voltage  24V
Max. Charging Current  10A
Rated Input Voltage  AC (100~240)V
Max. Input Voltage Range  AC (90~280)V
AC Input Frequency  50/60Hz
Max. Input Current  4A
Operating Mode  Two segments
Operating Temp.  (-30~+55)°C
Storage Temp.  (-40~+85)°C
Net Weight(kg)  6.2kg
Case Dimensions(mm)  330*120*270

Product Overview:
BCW10 Battery Charging Box is intelligent and multifunctional, which is specially designed for meeting the charging characteristics of the lead-acid engine starter batteries. Suitable for 24V battery and the maximum charge current is 10A.

With graphic LCD, BCW10 can not only display parameters as input/output voltage, current and power, but also can record charging process and form related charging curve to realize real time monitoring for the battery charging. Parameters can be configured from front panel and language is optional for English and Chinese with easy operation and high realiabilty.

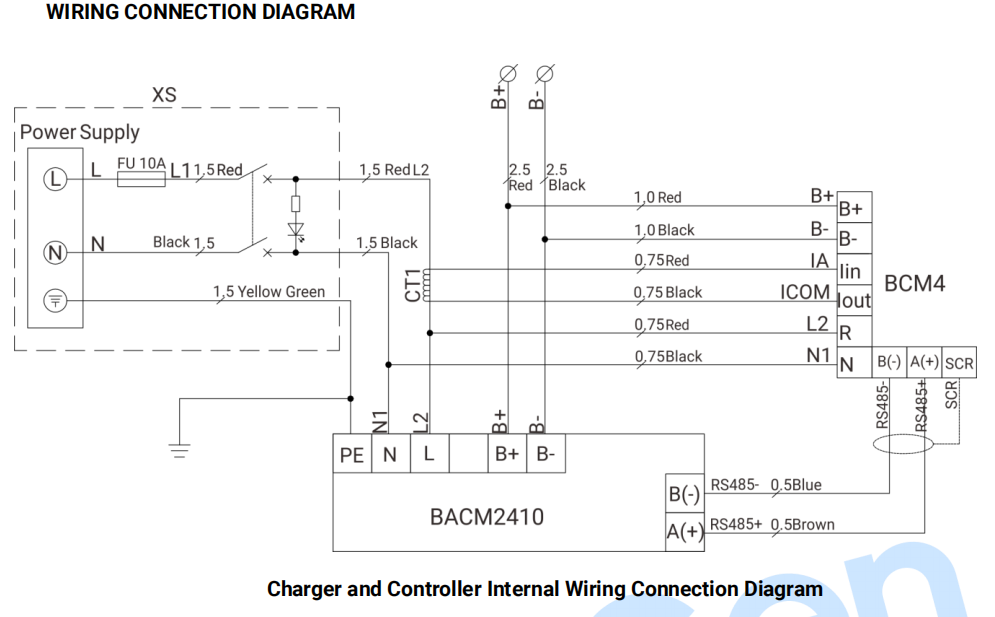

BCW10 battery charging box is composed by BCM4 display module and BACM2410 battery charger.

PERFORMANCE AND CHARACTERISTICS

1. 132×64 LCD display with backlight, languages are optional(English, Chinese), easy operation.

2. Collect and display parameters as input/output voltage, current, power and etc..

3. Record and display battery charging time.

4. Screen backlight duration can be set.

5. Monitor battery charging process, so as to track battery charging stage and display battery voltage which has been charged by icon.

6, Built-in output current protection circuit, it can effectively protect the charger when outputs overcurrent, short circuit and reverse connection and recovers output automatically after these phenomena are eliminated.

7. With voltage detection interface, it can detect the voltage of battery charger in real time.

8. Record charging volt/current and form charging curves according to the records.

9. With abnormal communication, charging failure and mains failure alarms display function.

10. Switching power supply structure with wide AC voltage range and high efficiency.

11. Users can select automatic two-stage or three-stage automatic charging process as needed. Both the two charging process are carried out according to battery charging characteristics to prevent overcharging and significantly prolong battery lifetime.

12. Built-in PFC circuit, the power factor calibration can reach 0.99.

13. 10A rated charging current, and output current can be adjusted.

14. Suitable for 24V battery pack.
