Rated Working Voltage AC400V
Max Working Current 10A
Case Dimensions(mm) 144.4*252*75.3
Panel Cutout(mm) 125*240
Operating Temp. (-25~+70)℃

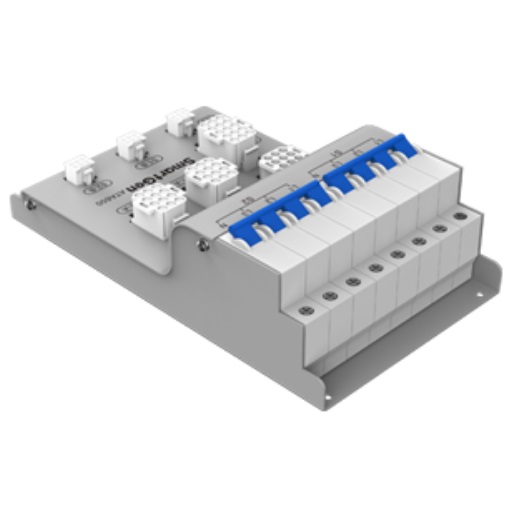

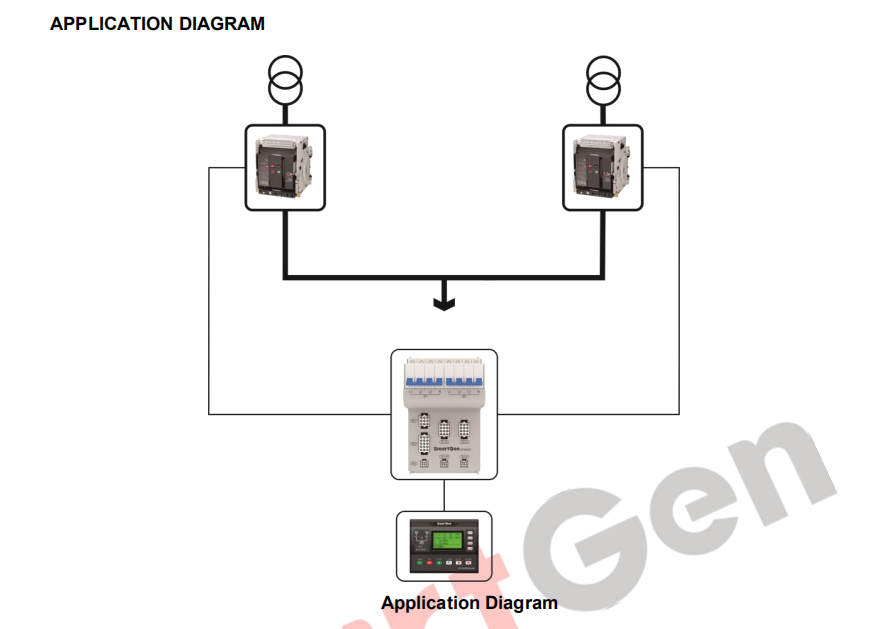

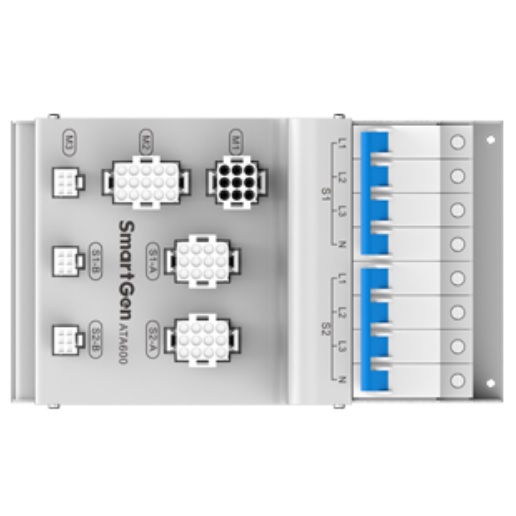

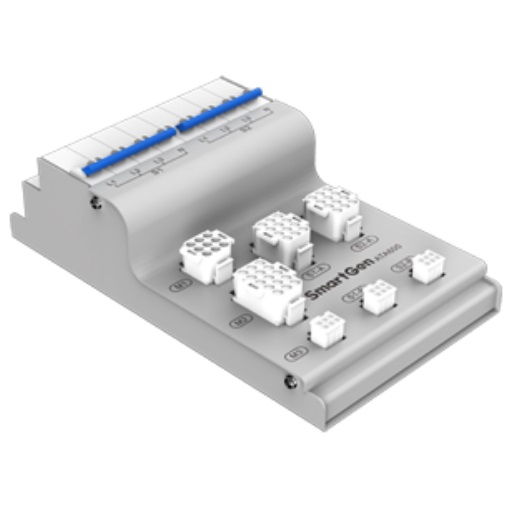

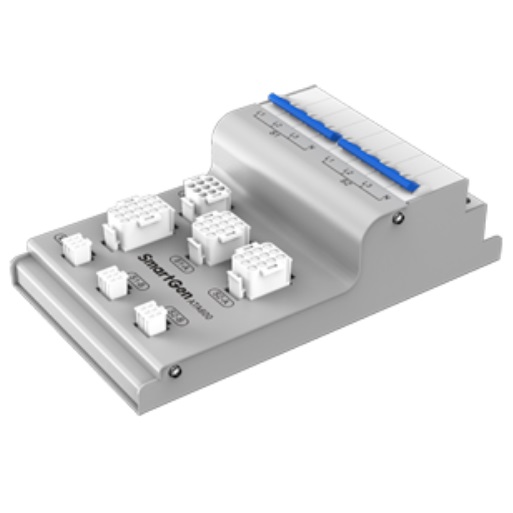

ATA600 Dual Power Switch Adapter is a kind of adapter which makes convenience for connection between HAT600/HAT600N/HAT600P/HAT700 dual power ATS controller and smart breaker, reducing a lot of field wiring work for users, not only labor saving, time saving but also reliable.
PERFORMANCE AND CHARACTERISTICS
Suitable for 3Ph 4W AC system;
Two integrated 400V/50Hz/10A circuits of air breaker, which are individually used to connect two circuits of AC power;
All-in-one integrated adaptor, which can simultaneously connect S1 breaker, and S2 breaker;
Suitable for HAT600/HAT600N/HAT600P/HAT700 dual power ATS controller;
Cold rolled plate closure;
With screw installation method, adapter is fixed by 4 screws.
