SmartGen HMU8-860 Remote Monitoring Controller

* All prices on this website are retail in USD on EXW incoterms

(0)

Technical Parameters:

Display        8-inch color LCD
Language    Chinese & English
RTC(Real Time Clock)    ●
DC Supply    DC(10~35)V
Case Dimensions(mm)    221*163*51
Panel Cutout(mm)    205*147
Operating Temp.        (-25~+70)℃


Product Overview:

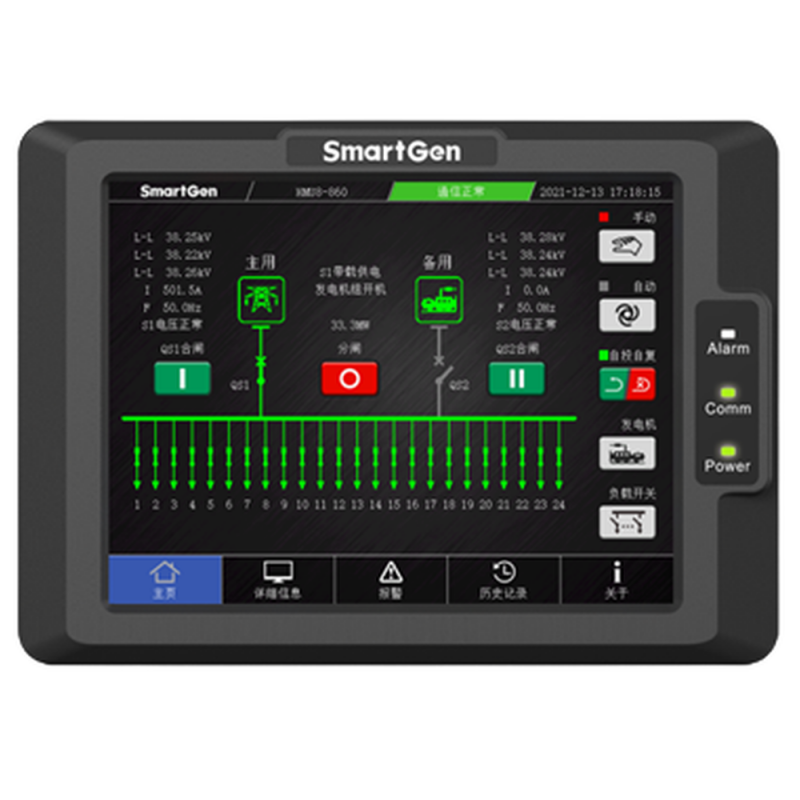

HMU8-860 ATS Remote Monitoring Controller adopts high-performance ARM chip, large, high-resolution capacitive touch screen with Chinese and English display, which can realize remote control, data monitoring and parameter configuration of HAT860 medium voltage ATS controller via RS485 interface. It has compact structure, easy operation and reliable running.



PERFORMANCE AND CHARACTERISTICS

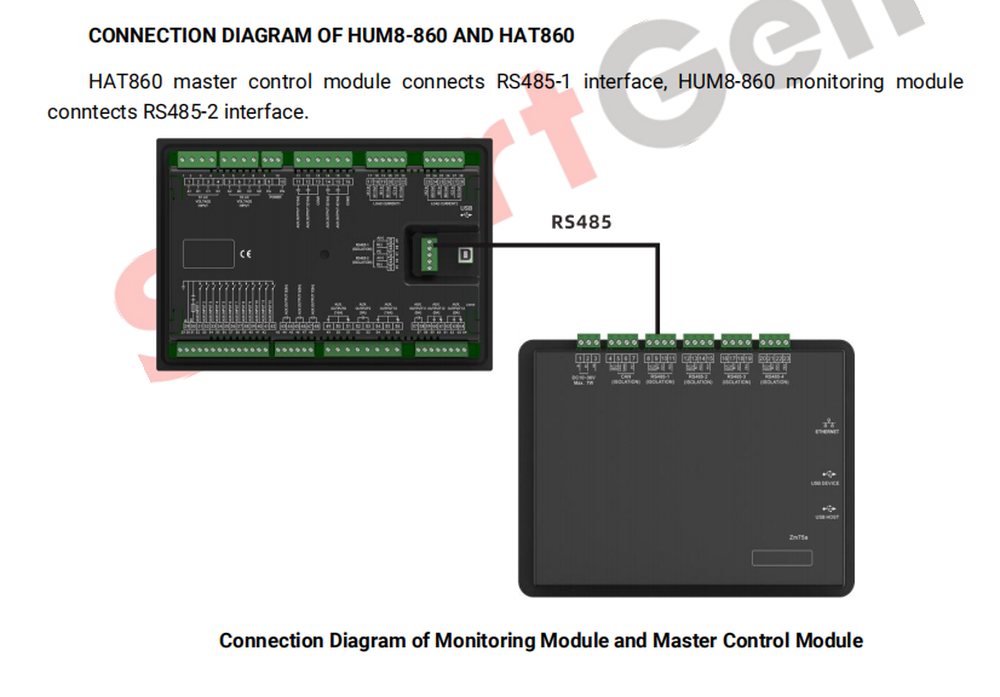

HMU8-860 ATS remote monitoring controller (hereinafter called monitoring module) is used for the remote data monitoring and control of HAT860 MV-ATS controller (hereinafter called master control module). The two modules communicate via RS485 interface.

Main features are the followings:

8-inch color LCD with 800*600 resolution, HMI display and capacitive touch screen operation;

Chinese and English operations are optional for on-site and convenient for commissioning staff;

Home screen displays master control module dual power configuration and real-time status of power, ATS, generator and load breaker;

Control manual/auto, auto transfer/restore, auto transfer non-restore of master control module;

Stepwise switch status monitoring and control function, max. 24-way load breakers can be controlled;

Realize one-key close/open control and genset start/stop operation of master control module in manual mode;

Display defined character string of master control module;

Display S1/S2 voltage, current, frequenxy and other electric parameters of master control module in real time;

Display load information like active power, reactive power, apparent power and power factor of master control module;

Display S1/S2 accumulated active energy, reactive energy, close times, auto transfer times, mains failure transfer times of master control module;

Display current continuous supply time, S1/S2 accumulated supply time, auto transfer running time of master control module;

Display master control module alarm information in real time;

Event log function of master control module, adjust its real-time clock;

Allow users to change and set the parameters of master control module;

RS485 communication parameters of monitoring module and master control module has auto synchronization function;

Suitable for 12/24VDC battery voltage environment;

With power indicator, communication indicator, alarm indicator;

Monitoring module screen has 10-level brightness, which can adjust brightness according to environment;

Monitoring module has 4 RS485 interfaces, 1 CANBUS interface, 1 ETHERNET interface;

RS485 interface and network parameters can be configured and cannot ne lost even in case of system dropout;

USB device interace is used for upgrading controller firmware;

USB master interface is used for upgrading controller screen picture and font file;

Rubber seal ring is installed between enclosure and control panel, front panel protection can reach IP65;

Enclosure is built by aluminium alloy, which is beautiful and strong;

Modular design, pluggable terminal, embedded-in installation, compact structure and easy mounting.
