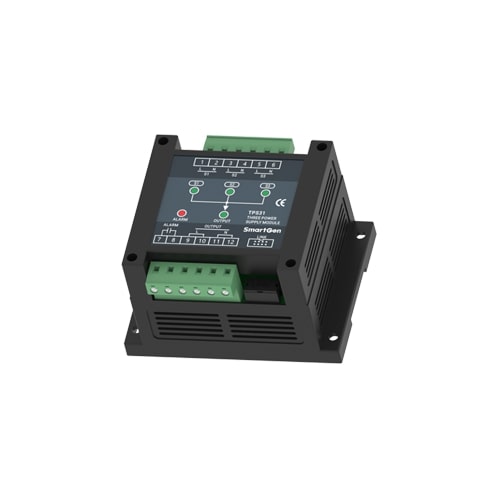

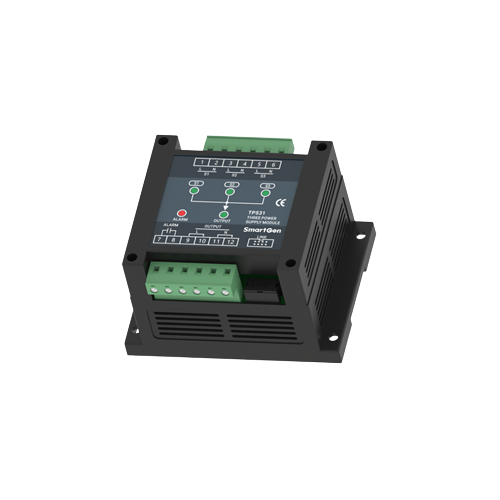

SmartGen TPS31 Three Power Supply Module, AC power output

Technical Parameters:

Alternator Frequency        50/60Hz
Case Dimensions(mm)    115.5*102*72.5
Operating Temp.        (-40~+70)℃


Product Overview:
TPS31 Three Power Supply Module is composed of microprocessor as the core, providing three selective AC power output, which can precisely detect 3-way voltage and make accurate judgment and control output for voltage abnormal situations (over voltage, under voltage).



PERFORMANCE AND CHARACTERISTICS

System type is 3-way single phase AC power;

Intelligent and precise MCU monitoring and control;

Two working mode: mutual backup and power supply by priority;

Measure 3-way input voltage and load voltage;

Over/under voltage detection function, over/under voltage threshold can be set (via PC software);

Transfer time<60ms;

LED can intuitively indicate 3-way input voltage status and output voltage status;

Can be used for 3-way or 2-way power input;

3-way independent switch power supply is adopted internally;

3-way N wire isolated design;

Guide rail installation and screw installation;

Modular structure design, pluggable terminal, compact structure and easy mounting.
