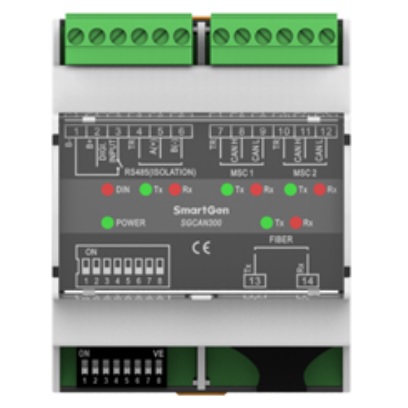

SmartGen SGCAN300 CANBUS RELAY MODULE

Technical Parameters:
Operation Voltage DC(8-35)V
Power Consumption <2W
RS485 Port Isolation, Half Duplex, Baud Rate: 9600bps and 19200bps are optional
CAN Port Isolation, Baud Rate: 50kbps, 125kbps, 250kbps and 500kbps are optional
Optical Fiber Port Max. Transmission Distance: 10km, Type: SC
Case Dimensions(mm) 71.6*92*60.7
Operating Temp. (-25~+70)℃
Weight 0.2KG

Product Overview:

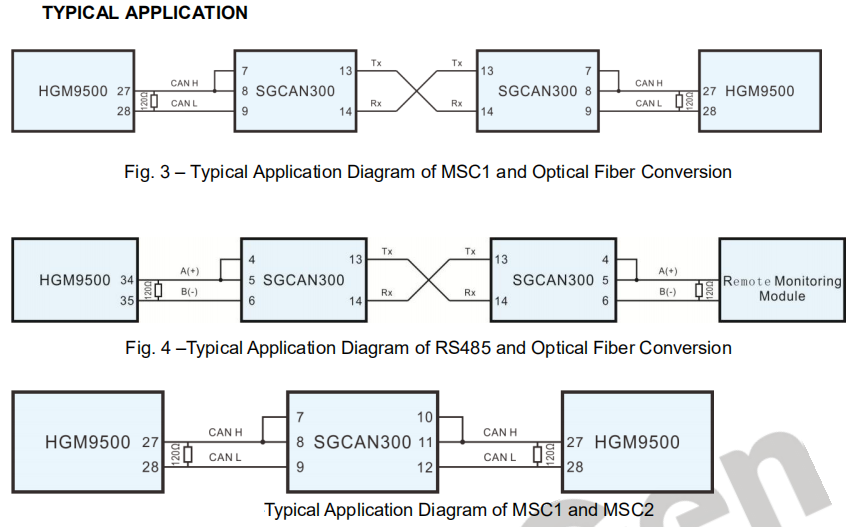

SGCAN300 CANBUS RELAY MODULE can realize the mutual conversion between MSC1 and optical fiber, MSC1 and MSC2, RS485 and optical fiber. Using the module can increase the communication distance of MSC or RS485.

PERFORMANCE AND CHARACTERISTICS

With conversion function of MSC1 and optical fiber, using a pair of modules can realize long distance MSC communication;

With conversion function of RS485 and optical fiber, using a pair of modules can realize long distance RS485 communication;

With data conversion function of MSC1 and MSC2, using a single module can increase the MSC communication distance;

With one digital input, which can control signal conversion enabling;

The effective type of input port can be set by the dial switch of the module;

The baud rates of MSC1 and MSC2 can be set by the dial switch of the module;

The baud rate of RS485 can be set by the dial switch of the module.
