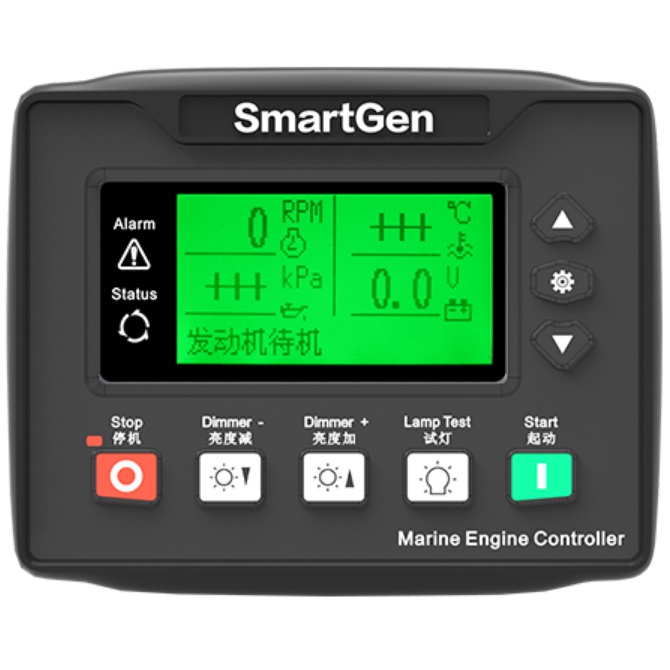

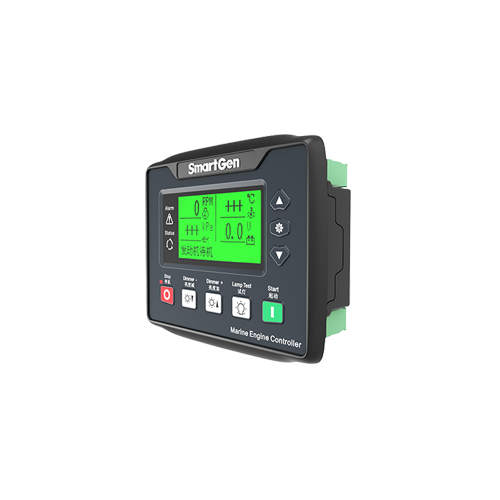

SmartGen HMC4000RM Remote monitoring controller, suitable for HMC4000MPU/CAN

Technical Parameters:
Display  LCD(132*64)
Operation Panel  Silicon Rubber
Language  Chinese & English
COM. Interface  RS485
CANBUS(J1939)  ●
DC Supply  DC(8～35)V
Case Dimensions(mm)  135*110*44
Panel Cutout(mm)  116*90
Operating Temp.  (-25~+70)℃

Product Overview:
HMC4000RM remote monitoring controller integrates digitization, intelligentization and network technology which are used for remote monitoring system of single unit to achieve remote start/stop functions. It fit with LCD display, and optional Chinese/English languages interface. It is reliable and easy to use.

PERFORMANCE AND CHARACTERISTICS

1.    132*64 LCD with backlit, optional Chinese/English interface display, and push-button operation;
2.    Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions;
3.    Silicone panel and buttons with great performance to work in high/low temperature ambient;

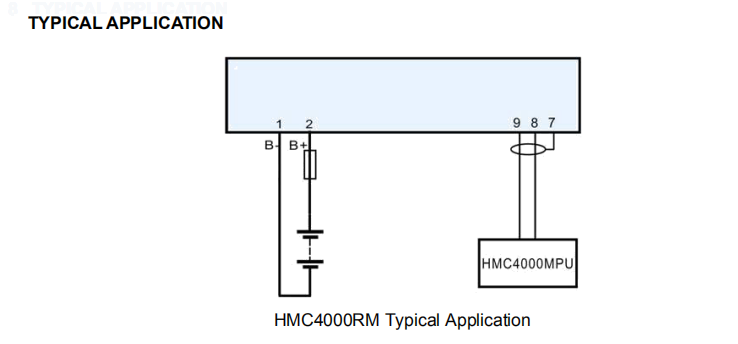

4.    Connect to host controller via RS485 port to achieve remote start/stop control in remote control mode;
5.    With LCD brilliance level (5 levels) adjusting button, it is convenient to use in different occasion;
6.    Waterproof security level IP65 due to rubber seal installed between the controller enclosure and panel fascia.
7.    Metal fixing clips are used;
8.    Modular design, self extinguishing ABS plastic enclosure and embedded installation way; small size and compact structure with easy mounting.
