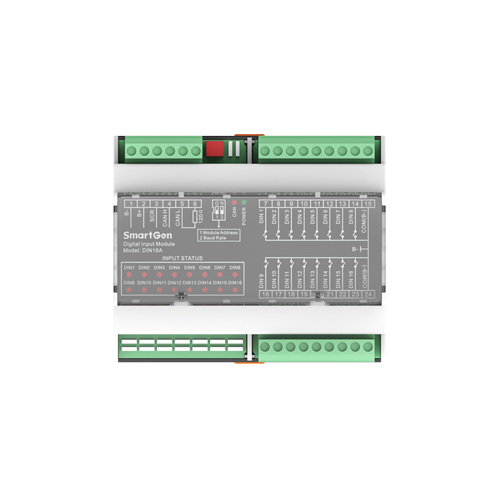

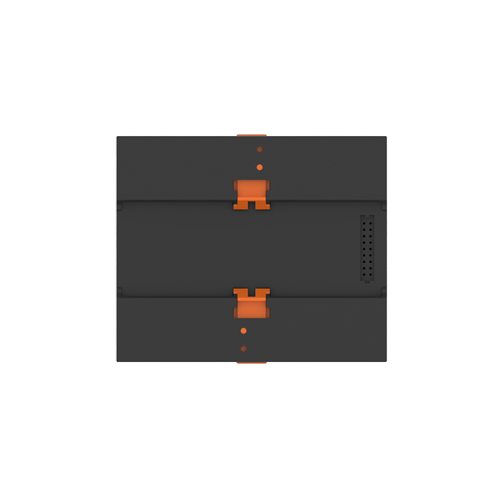

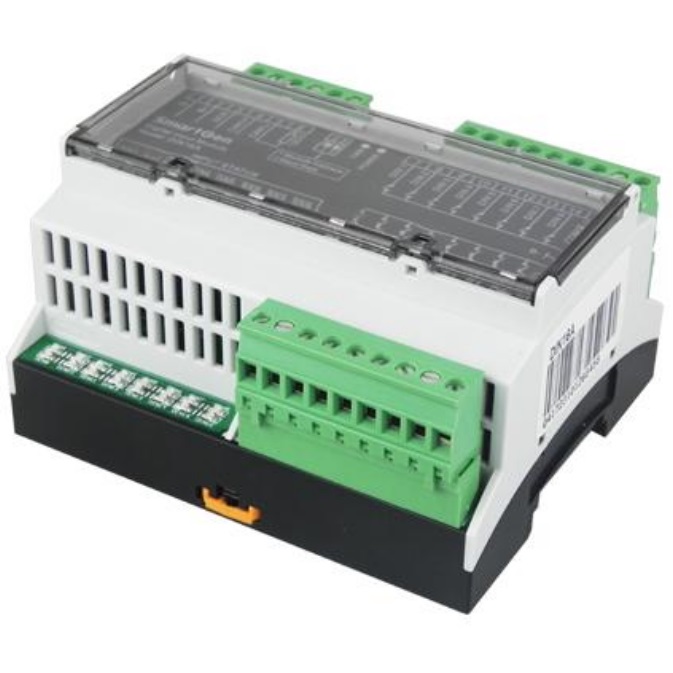

SmartGen DIN16A digital input module
* All prices on this website are retail in USD on EXW incoterms
SmartGen DIN16A User manual Technical Parameters:
Working Voltage DC18.0V~ DC35.0V continuous power supply
Power Consumption <2W
Case Dimension 107.6mm x 89.7mm x 60.7mm
Working Conditions Temp.：(-25~+70)°C Humidity：(20~93)%RH
Storage Conditions Temp.：(-25~+70)°C
Weight 0.25kg
Product Overview:
DIN16A digital input module is an expansion module which has 16 auxiliary digital input channels and the name of each channel can be defined by users. Theinput port status collected by DIN16A is transmitted to the HMC9000S controller for processing via CANBUS port.
