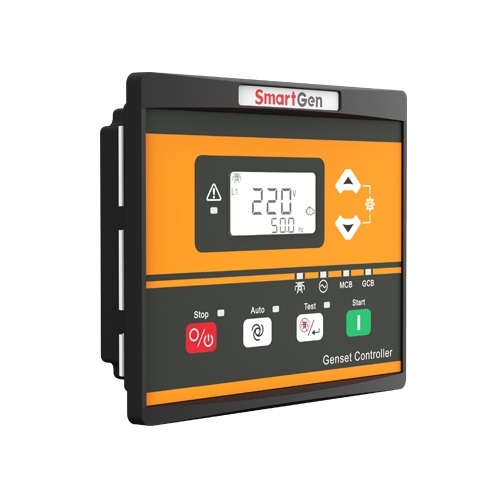

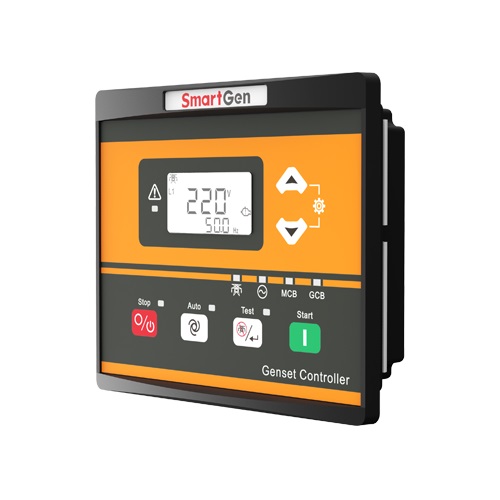

SmartGen MGC320 Generator Automatic Mains Failure controller (AMF)

Technical Parameters:
Display  LCD
AMF  ●
AC System  1P2W/2P3W/3P3W/3P4W
Alternator Frequency  50/60Hz
Monitor Interface  RS485
Programmable Interface  RS485
DC Supply  DC(8～35)V
Case Dimensions(mm)  126*106*46.5
Panel Cutout(mm)  111*91
Operating Temp.  (-25~+70)℃

Product Overview:
MGC300 Series Genset Controller is applicable for single unit automation control to realize auto start of single unit and AMF. The controller integrates digitalization with intelligence and applies LCD graphic display, which is simple for operation and reliable for running.

MGC300 Series Genset Controller applies 32-bit micro-processor technology, realizing precise measuring for various parameters, set-value adjusting, and timing, and limit value setting functions etc. A majority of parameters can be adjusted from the front panel, and all parameters can be configured by RS485 on PC. It has compact structure, simple wiring, high reliability, which can be used for all types of genset automation system.

MGC300 Series Genset Controller includes true low power consumption (power off) and feign low power consumption (awakening, but screen light not on, stop indicator flashing, not do any action).

PERFORMANCE AND CHARACTERS

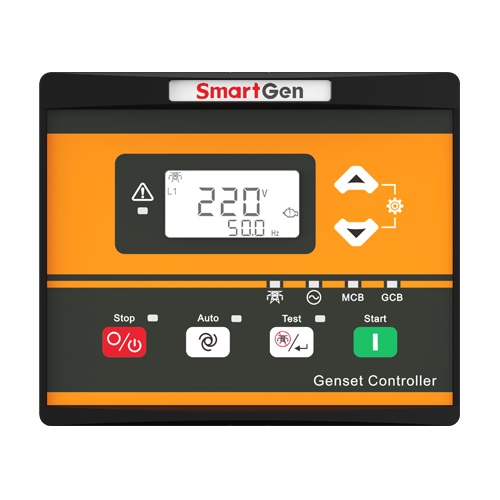

Graphic LCD display (backlight), LED indicators, push-button operation;

Acrylic material for hard screen protection;

Wide power supply range DC (8-35)V, which can suits different environments of starter battery voltages;

Collect and display mains/gen 3-phase voltage, 3-phase current, frequency, and power parameters;

Mains                                 Gen

Line voltage    (L12, L23, L31)       Line voltage     (L12, L23, L31)

Phase voltage   (L1, L2, L3)          Phase voltage    (L1, L2, L3)

Frequency       (Hz)                  Frequency        (Hz)

Load

Current       (Ia, Ib, Ic)            Unit: A

Total active power P                  Unit: kW

Mains has over volt, under volt, over frequency, under frequency, and loss of phase functions; Gen has over volt, under volt, over frequency, under frequency, over current, over power, and loss of phase functions;

Precisely measure all parameter values of engines:

Temperature °C    Fuel level %

Battery voltage V   Accumulated running time H (max. 199999 hours)

Speed RPM       Accumulated start times (max. 199999 times, display only on PC software)

Genset fault protection and display function;

Controller has 4 working modes: manual, auto, stop, and test mode, and MGC310 has stop, manual, auto modes, and MGC320 has manual, auto, stop, and test mode;

Parameter setting function: allows users to change and set the parameters, which won't be lost on system power off; a majority of parameters can be adjusted from front panel, and all parameters can be configured by RS485 on PC;

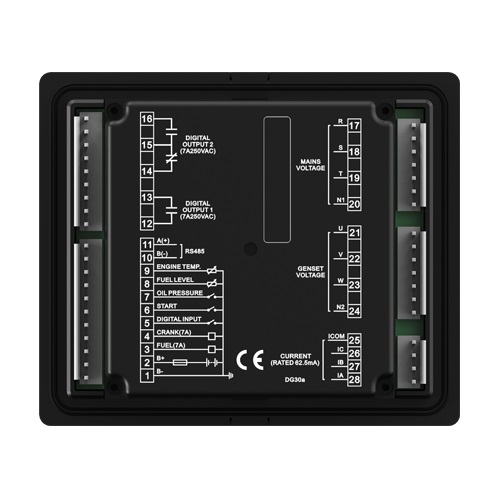

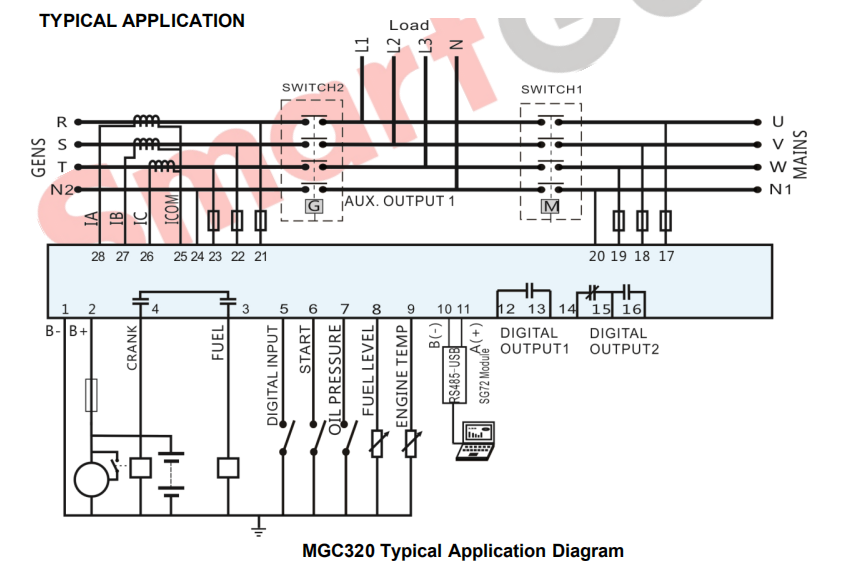

1 programmable input port, 2 fixed input ports;

2 fixed relay output ports (fuel output, start output);

2 programmable relay output ports;

All parameters are adjusted digitally, improving the whole case's reliability and stability;

Sealing gasket is designed between the closure and the control window, whose dustproof and waterproof  performance can be reached to IP65;

Metal fixing clips are used to stable the controller;

Modular structure design, pluggable wiring terminal, and built-in installation, make it compact in structure and easy to install.
