Performance and Characteristics:
1. Suitable for 12V/24V battery charging use, automatic recognition without selection.
2. With RS485 communication port. User can set parameters and remote monitor charging status via communication interface.
3. With optional battery charging mode and CVCC mode (power mode, alone as load power supply).
4. 2-stage or 3-stage charging method can be chosen as require.
5. Load output port with over/under voltage and over current protections, if solar voltage is too low (night), load will start output.
6. With charge fail or battery low voltage output port.

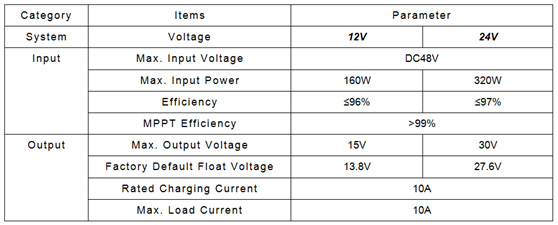

Specification Parameter

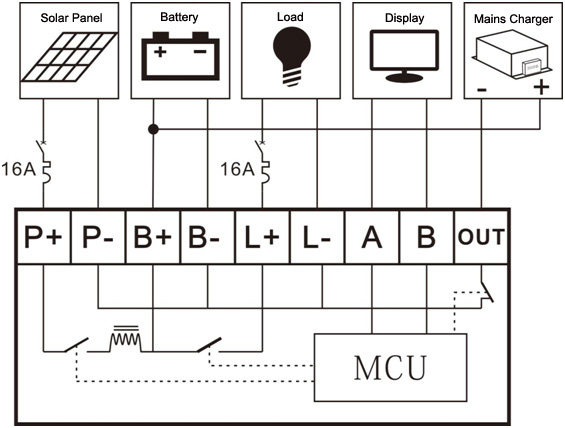

Application
Note: For solar panel type selection and mounting, please refer to the user manual or consult the regional director of SmartGen.
