A wide range of high quality controllers for various power applications

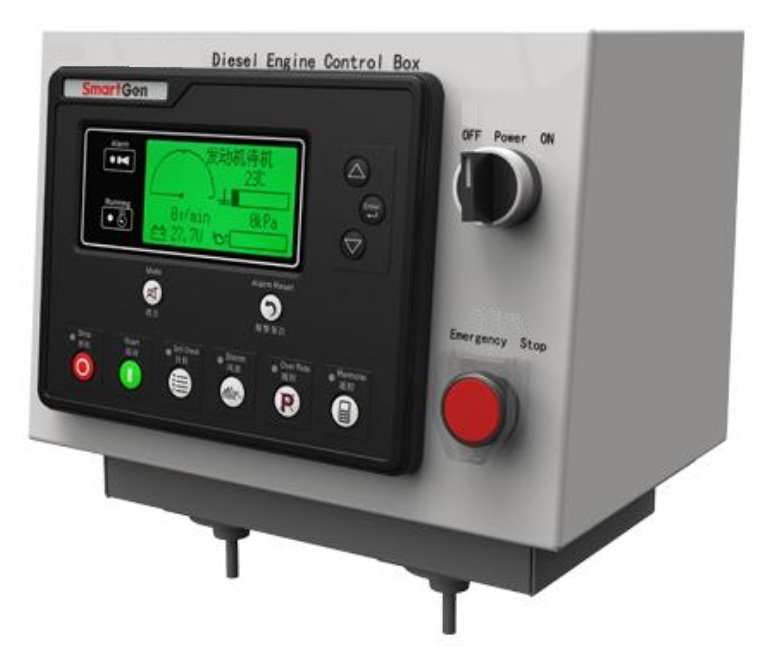

SmartGen MGCP100D Main Propulsion Engine Control Panel

* All prices on this website are retail in USD on EXW incoterms

SmartGen MGCP100D Main Propulsion Engine Control Panel


Suitable for diesel engine with machinery GOV or main propulsion system.

Local/remote modes for achieving local start/stop and remote start/stop.

With LCD for displaying water temperature, oil pressure, speed, battery voltage, runtime, number of starts;

All parameters can be set via controller on site, convenient and efficient;

With override, storm and remote three modes, push-buttons of self-checking, alarm reset and mute, easy to operate.

Real-time clock and event log, convenient for maintenance and troubleshooting;

Operating voltage: (8-35)V
Operating conditions: Temperature: (-25~+70)℃   Humidity: (20~93)%

CCS certificate and IP44 protection class;

Case dimensions(L*W*H)(mm): 285*187*205(except shock absorber)

Panel cutout(L*W*H)(mm): 120*65, 4*M6 screw;
