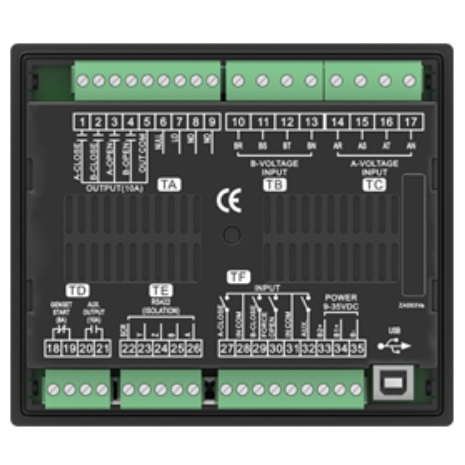

HAT553V dual power ATS controller is a dual power transfer module integrated with configurable function, automatic measurement, LCD display, and digital communication. It combines digitalization, intelligence and networking together, which realizes automation for measuring and control process, reducing artificial operation mistakes. It is the ideal product for dual power transfer. HAT553V is applicable for non-breaking, one-breaking, and two-breaking switches.
HAT553V dual power ATS controller is made with the microprocessor in the core, which can precisely measure 2-channel 3-phase voltages, make correct judgment and control outputs for occurred voltage abnormal (over voltage, under voltage, over frequency, under frequency, loss of phase, reverse phase sequence). It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical automatic control system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building etc.
PERFORMANCE AND CHARACTERISTICS
System type can be set to: Mains - Generator, Generator - Mains, Mains - Mains;
132x64 LCD with backlight, optional Chinese and English display, push-button operation;
Wide working temperature range (-40°C ~+70°C), suitable for awful environmental places;
Collect and display 2-channel 3 phase voltage, frequency and phase sequence;
Display of A power/B power accumulated close times;
Display of present continuous power supply time and A power/B power accumulated power supply time;
Over/under voltage, over/under frequency, loss of phase, reverse phase sequence protection functions;
Auto/Manual mode transfer function: in manual mode, user can control the switch to close or open;
All parameters are configurable. Password verification is used to prevent non-professional error operations;
Commissioning can be done on site manually to execute genset start/stop operations;
Switch Re-closing function is fitted;
Breaker close output can be set to pulse or steady output;
2-channel N wire isolated design;
Real-time clock (RTC) display, and event log function, which can record 50 data cyclically;
Scheduled start & stop generator function: running once/monthly/weekly, and on-load/offload running are configurable;
1 RS422 isolated communication port, has "remote control, remote communication, remote measuring, remote adjusting" function with ModBus-RTU communication protocol; genset start/stop, ATS close/open can be controlled remotely;
Suitable for various AC system types (3 phase 4-wire, single-phase 2-wire, and 2-phase 3-wire);
Modular design, self-extinguishing ABS plastic shell, pluggable terminal, built-in mounting, compact structure with easy installation.
