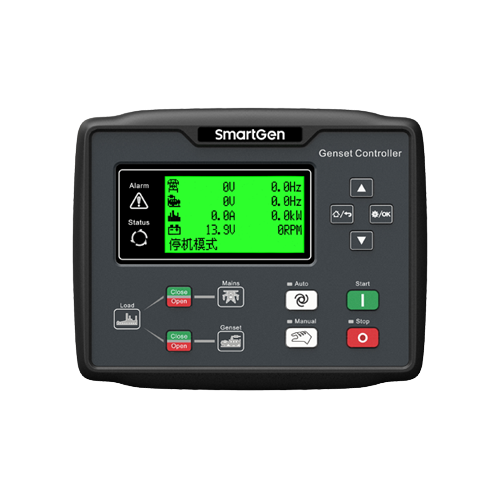

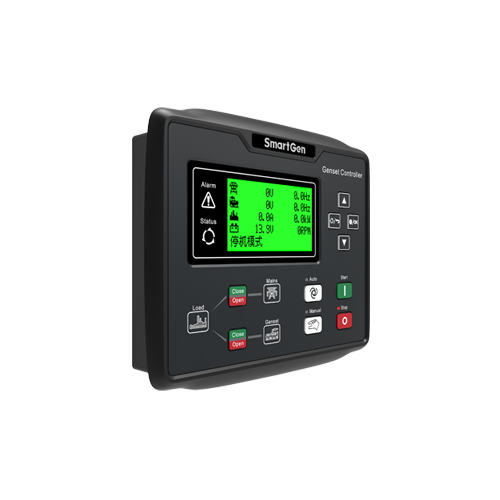

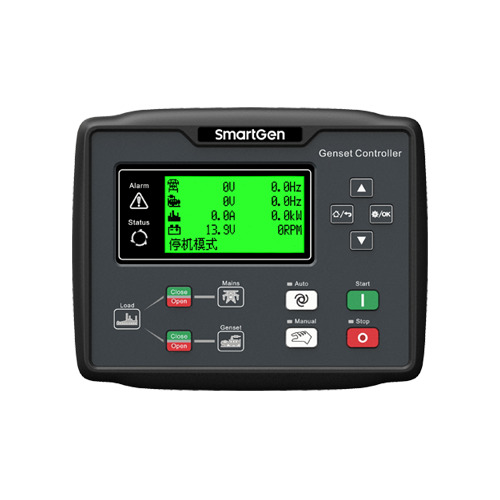

SmartGen HGMS62 Split Type Genset Controller

* All prices on this website are retail in USD on EXW incoterms


Technical Parameters:
Display  LCD(132*64)
Operation Panel  Silicon Rubber
Language  Chinese & English & Others
Digital Input  4
Relay Output  6
Analogue Input  5
AC System  1P2W/2P3W/3P3W/3P4W
Alternator Frequency  50/60Hz
kW/Amp Detecting & Display  ●
Monitor Interface  USB/RS485
Programmable Interface  USB/RS485
RTC & Event Log  ●
Scheduled Start Genset  ●
Maintenance  ●
DC Supply  DC(8-35)V
Case Dimensions(mm)  HGMS62D:209*167*45 HGMS62M:248*158*64
Panel Cutout(mm)  HGMS62D:186*141
Operating Temp.  (-25~+70)℃

Product Overview:
HGMS62 Genset Controller adopts split structure of “Master Control and Display”, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and “four remote” (remote control, remote measure, remote communication and remote adjustment). The controller uses monochrome LCD display, optional interface with multiple languages, which is easy and reliable to operate.

HGMS62 Genset Controller uses 32-bit microprocessor technique which can achieve precision measurement, value adjustment, timing and threshold setting etc. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It is equipped with fuse, fuel, start relay and auxiliary output 3, 4 are pluggable. The compact structure and simple wiring of the controller solve the problem of complex wiring and low efficiency, and improve the production efficiency of the control cabinet. It can be widely used in various types of automatic control system.


Display Module: HGMS62D,         Master Control Module: HGMS62M, HGMS62MCAN.

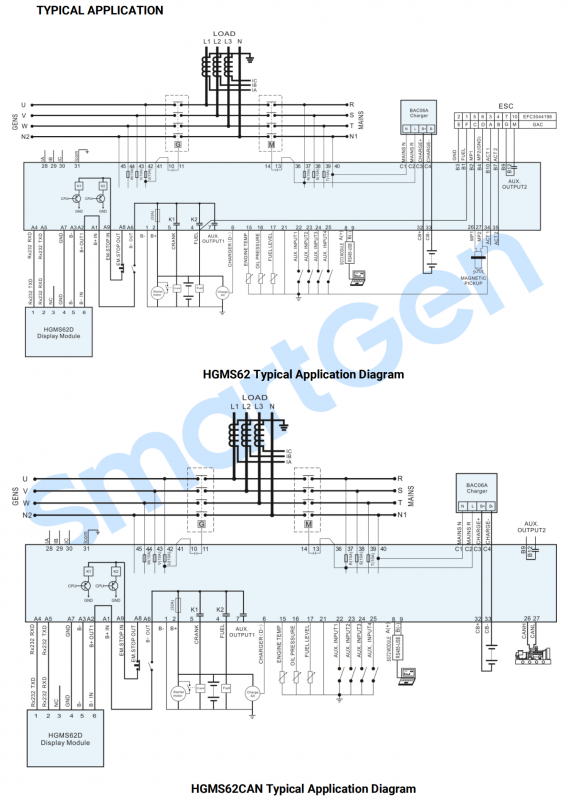

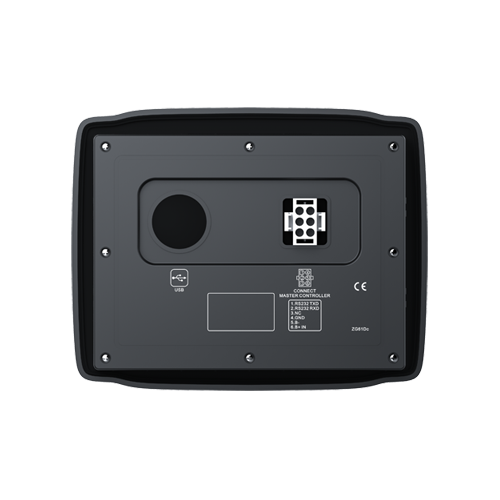

HGMS62D: Display control module.

HGMS62M: MPU interface, suitable for ESC controlled engines.

HGMS62MCAN: CAN BUS interface, suitable for ECU controlled J1939 engines.

HGMS62: mains/gen power monitoring, used for mains/gen automatic transfer (AMF), suitable for single unit automation system with one mains and one generator. It can disable mains by setting parameters for single unit automation, control genset auto start/stop vis remote start signal.

Its main features are as follows:

1. 132x64 resolution LCD with backlight, optional language interface (Chinese, English, others), can be selected through the panel on site, which is convenient for debugging personnel;

2. With RS485 communication port, can achieve “four remote” functions (remote control, remote measurement, remote communication and remote adjustment) via MODBUS protocol;

3. Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz power system;

4. Can measure and display 3-phase voltage, 3-phase current, frequency, power parameter of mains/gen;

Mains                                         Gen

Line voltage    Uab, Ubc, Uca                    Line voltage    Uab, Ubc, Uca

Phase voltage  Ua, Ub, Uc                       Phase voltage   Ua, Ub, Uc

Frequency      Hz                             Frequency      Hz

Phase sequence                                Phase sequence


Current        Ia, Ib, Ic                           A

Each phase and total active power  P               kW

Reactive power  Q                                kvar

Apparent power  S                                kVA

Power factor    PF

Gen accumulated energy                           kWh, kvarh, kVAh

Load output PCT  (active power/rated power)x100%

5. With over/under voltage, over/under frequency, loss of phase, reverse phase sequence functions of mains; with over/under voltage, over/under frequency, over current, over power, reverse power, loss of phase and reverse phase sequence functions of gen;

6. Precise measure and display of various parameters of engine:

Temp. (WT)                      °C/ °F

Oil pressure (OP)            kPa/psi/bar

Fuel level (FL)                    %

Speed (SPD)                r/min (RPM)

Battery Voltage (VB)               V

Charger D+ Voltage (VD)            V

Accumulated running hours        Up to 65535 hours

Accumulated start times           Up to 65535 times

7. Control protection: automatic start/stop of genset, closing/opening (ATS transfer) and perfect failure display and protection functions;

8. With ETS, idle speed control, pre-heat control, speed drop/raise control, all of them are relay outputs;

9. Parameter setting: allow users to modify setting, parameters cannot be lost even when power off. Most of parameters can be set from the front panel, all parameters can be adjusted via USB interface (or RS485 interface) of PC.;

10. A variety of temperature, pressure and fuel level sensor curves can be used directly, and can be defined by users; pressure, config.2 can be connected to resistance, voltage or current type sensor;

11. Multiple conditions of crank disconnect (frequency, speed, oil pressure) can be selected;

12. Wide power supply range: DC(8~35)V, adapting to different starting battery volts;

13. Event log, RTC, scheduled start/stop (once a month/week/day can be set whether to take load or not);

14. With data record functions of mains voltage/frequency, gen voltage/frequency, current, temperature, oil pressure, fuel level, speed, etc. 1min before stop failure, max 5 pieces can be recorded;

15. Can be used for water pump unit, also can be used as indication instrument (only indication, alarm, no action for relay);

16. With maintenance function. Maintenance time or actions (only warning or trip shutdown or alarm shutdown) can be set;

17. Add rubber gasket between HGMS62D shell and panel, protection level can reach IP65;

18. HGMS62D is fixed by metal fixing clips and HGMS62M is fixed with screws;

19. Modular design and pluggable terminal, compact structure and easy installation;

20. Personalized startup interface, customers can define it as demand and display via HGMS62D.
