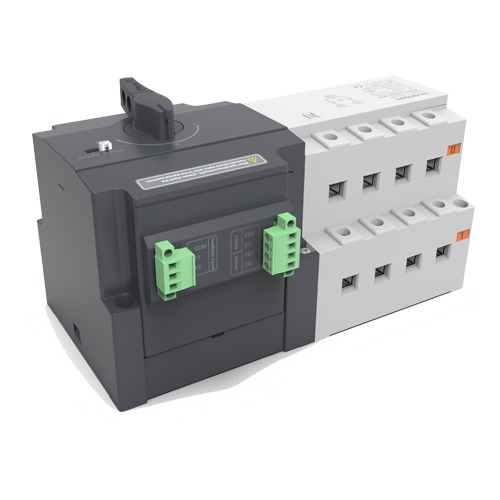

SmartGen SGMA-80A/4P (ATS Type) Motor type ATS switch

* All prices on this website are retail in USD on EXW incoterms


Product Overview:

SGM/SGMA63-630A series dual power ATS applies to the grounded power system of two neutral points, which requires AC400V 50/60Hz below, rated working current 16A~630A. Its structure is motor driven type, and there are three positions for the switch: normal (Ⅰ), spare (Ⅱ) and off (0). It can be used in the occasions where power failure is not allowed, such as high-rise buildings, medical heath, post and telecommunications, coal mine and ships, rail traffic, military and fire facilities.

This series products comply with the standard of GB GB/T 14048.11 ”Low-voltage switchgear and  controlgear --- part 6-1: Multiple function equipment ----Transfer switching equipment”.


SGM/SGMA63-630A series dual power ATS adopts motor-driven structure, and the appearance design is simple. The integrated manual operation handle is easy for operation and debugging; manual/remote control DIP switch can control the internal power supply. When transferring to manual mode, the manual operation is only available to ensure the personal safety. The external wirings are simple and clear, which is convenient for on-site installation and debugging.
